Kramer VSM-4X4X

KRAMER VSM-4X4X

8x8 Seamless Multi–viewer Matrix

  • Seamless 8X8 matrix

  • 8x2 quad–view seamless matrix

  • 4K60 4:4:4 scaling resolution

  • Dual mirrored HDBT 3.0 outputs

  • Secured remote control and management

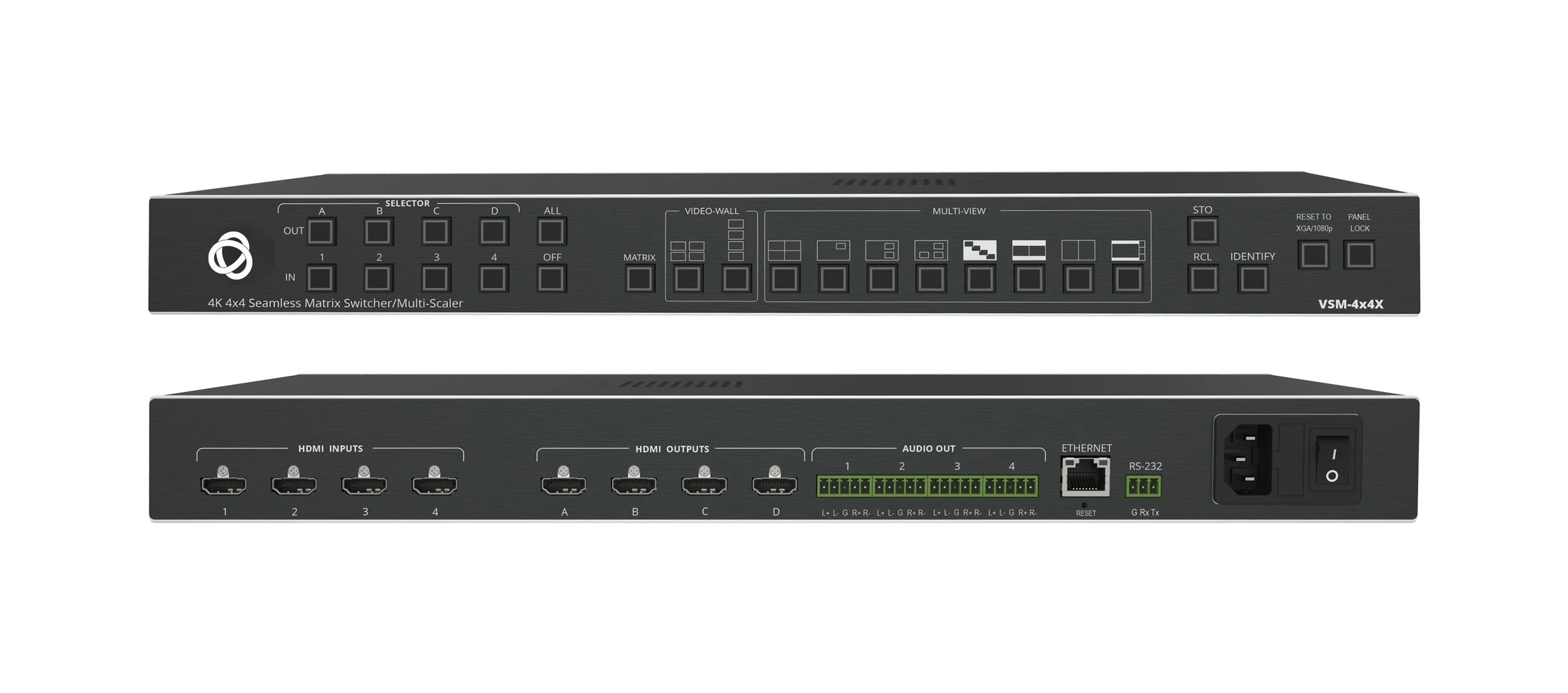

  • Kramer's VSM 4x4X is a 4X4 seamless matrix switcher that can also be used as a video wall driver (2X2 or 1X4), a quad−viewer, or a 4 picture multi−viewer.

    The unit allows instantaneous switching between inputs (that is, with a clean, frame−to−frame video cut). The VSM 4x4X supports HDMI 2.0 and HDCP 2.2, with resolutions up to 4K60 4:4:4, per−port HDCP and EDID settings, passing of 4 channels of embedded audio, and analog stereo de−embedded audio for each of the 4 outputs.

    • PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high quality scaling technology.

    • Matrix Switching Modes — Truly seamless switching mode (zero–time video cuts), or fade–through–black mode (enabling independent output resolutions).

    • Multiple Aspect Ratio Selections — Full and best fit.

    • 4 Preset Memory Locations — For each operation mode for quick access to common IN OUT configurations.

    • Non–Volatile Memory — Saves final settings.

    • Built–in Noise Reduction and Picture Enhancement Features

    • HDMI Support — 4K@60Hz, Deep Color, x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS–HD, as specified in VHDMI 2.0.

    • Selectable Operation Modes — 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), multi–view display Split, Side–by–Side, PIP, POP, Stacked or Quad display.

    • Bezel Correction Options — In video wall mode.

    • Constant Output Sync — For all modes of operation.

    • Built–in Video ProcAmp — Color, hue, sharpness, noise, contrast and brightness set individually for each input.

    • Firmware Upgrade — Ethernet based, via a user–friendly software upgrade tool.

    • Advanced EDID management per Input

    • Video inputs and Outputs — 4 HDMI Inputs and 4 Scaled HDMI Outputs.

    • Audio Outputs — 4 balanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.

    • Presentation and multimedia

    • Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging.

    • Video wall: large signage applications in public places.

    • Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for display or projection purposes.
