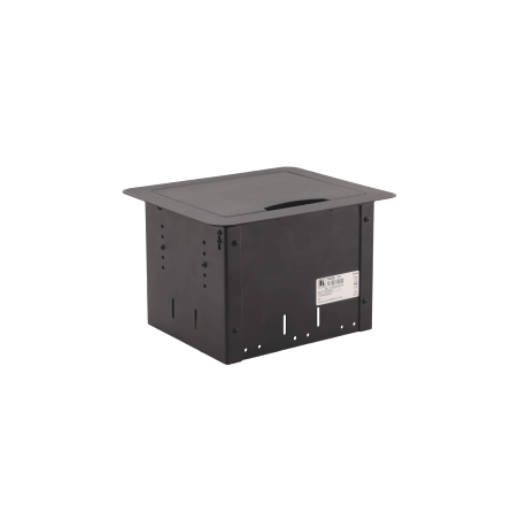

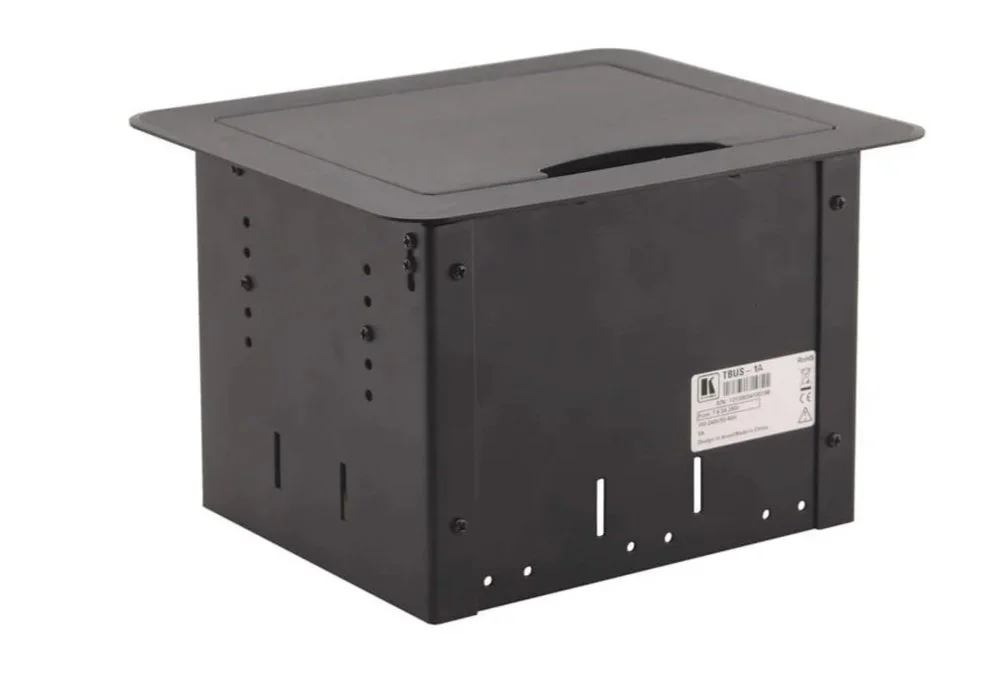

KRAMER TBUS-1 AXL

Table Mount Modular Multi–Connection Solution — Tilt–Up Lid

Enquire Now
Download Spec Sheet

Top Features:

  • Rectangular

  • Tilt–Up Lid

  • Modular Design

Modular Table Hub for Organized Connectivity

Streamline table AV access with the Kramer TBUS-1Axl, a tilt-up lid enclosure supporting customizable inner frames for up to six cable pass-throughs, four power sockets, and three Kramer Tools for seamless integration of power, video, audio, and control. Its adjustable connector depth and worldwide socket compatibility ensure flexible, professional setups in boardrooms, classrooms, and training facilities. UL/CE qualified with a discreet 19.1cm x 15.2cm cutout, it offers manual lid operation for quick, clutter-free connections.

  • The TBUS−1Axl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

    NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

    1. Cover — Manually opens & closes.

    2. Inner Frame — 6 different "TIAF" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass–through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.

    3. Power Sockets — 8 different "TS" single and 8 dual power socket options are available to accommodate the power requirements worldwide.

    4. Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket.

    5. Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.

    6. UL and CE Qualified.

    7. Connector Depth — Adjustable.

    8. Installation Requirement — Table cutout of 19.1cm x 15.2cm (7.51in x 5.98in).

    9. Dimensions — 20.5cm x 17cm x 13.2cm (8.1" x 6.7" x 5.2") W, D, H.

    10. Weight — TBUS–1Axl: 1.5kg (3.3lbs) approx.; table clamps: 0.26kg (0.57lbs); metal template: 0.125kg (0.28lbs).

  • o Boardrooms

    o Conference rooms

    o Classrooms

    o Training facilities

    o Lab tables

    o Lecterns.

  • TECHNICAL SPECIFICATIONS

    Operating Temperature Range:
    +5° to +45°C

    Operating Humidity Range:
    10 to 90% RHL, non−condensing

    Storage Temperature Range:
    −20° to +70°C

    Storage Humidity Range:
    5 to 95% RHL, non−condensing

    Dimensions
    20.5cm x 17cm x 13.2cm (8.07" x 6.69" x 5.20") W, D, H

    Weight
    TBUS−1A: 1.5kg (3.3lbs) approx.
    Table clamps: 0.26kg (0.57lbs)
    Metal template: 0.125kg (0.28lbs)

    Included Accessories
    Six self−locking ties

    Options
    Inner frames, power sockets
