Kramer KT-205

5.5 Inch Wall Mounted PoE Touch Panel

Enquire Now
Download Spec Sheet

Top Features:

  • 5.5" elegant, high–quality touch panel

  • Single Ethernet cable for connectivity & PoE powering

  • Advanced Wi-Fi connectivity options

  • Wall mounted

  • Supported by: Kramer Control

Sleek Wall-Mount Touch for Smart Automation

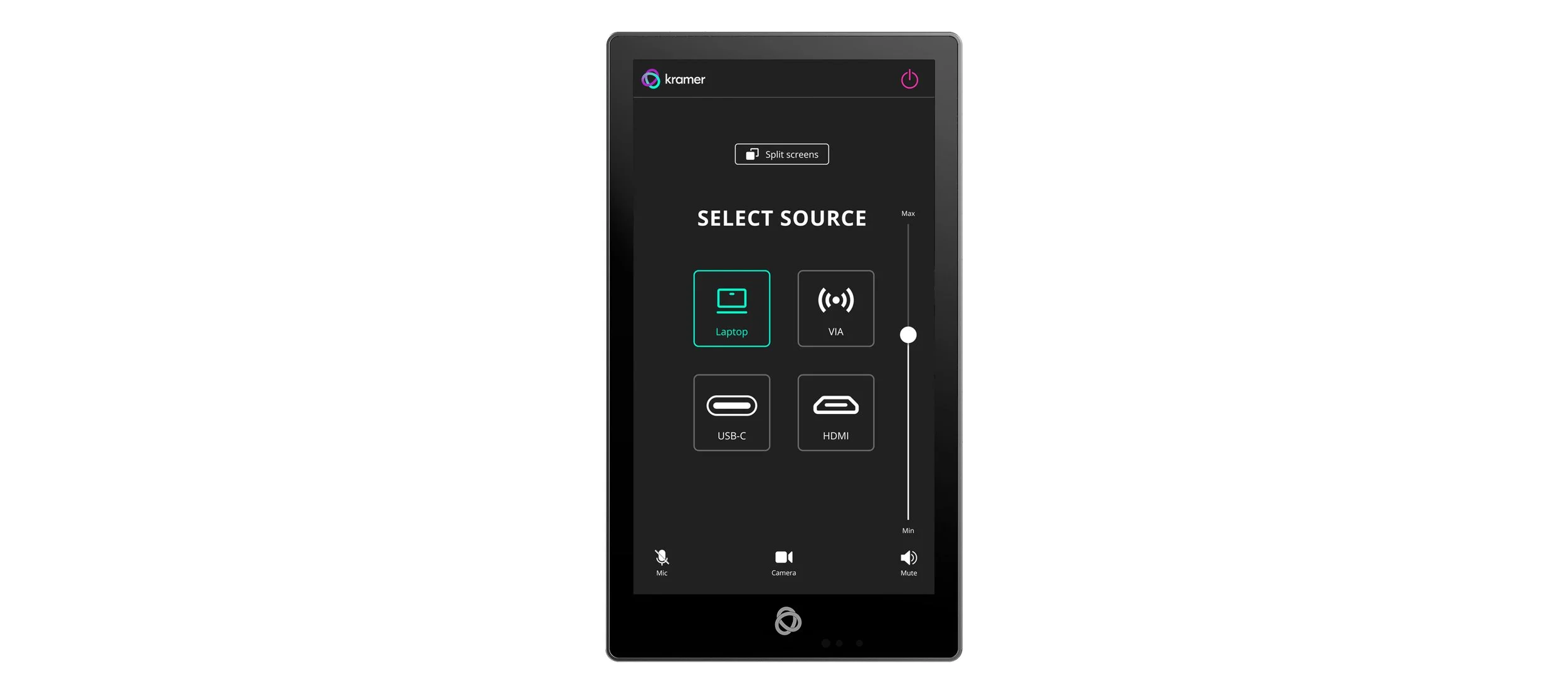

Elevate control simplicity with the Kramer KT-205WM, a 5.5-inch wall-mounted PoE panel with 720x1280 IPS display, multi-touch gestures, and Android 11 on i.MX8M Plus hardware for handling media streams and secure operations via password protection and hidden buttons. It supports PoE, Bluetooth 5, Wi-Fi 802.11ac, and USB peripherals for versatile connectivity, with built-in speaker/mic and firmware updates for reliable performance. Designed for meeting rooms, boardrooms, and auditoriums, it provides customizable Kramer GUI for efficient AV automation and room scheduling.

  • KT−205WM is a new powerful, 5.5 inch, IPS, multi−touch, touch panel with 720x1080 (10:16) resolution. Elegantly designed for wall−mounted decorative room integration. KT−205WM runs the latest Android 11, supports wired PoE (Power over Ethernet) and advanced Wi−Fi connectivity options. The touch panel has a built−in speaker and microphone and comes with a wall mount. The touch panel is easy to assemble, with elegant wiring and secured mounting providing reliable operation and flexible deployment. KT−205WM touch panel is ideal for 24/7 Kramer−supported commercial AV or control applications and features a user−friendly, fully customizable graphical user interface configured by Kramer software.

    • Elegant Design — Smooth integration with room design, with flexible panel cabling and locking design options.

    • Superior User Experience — IPS 720x1080 hi–resolution screen with ±80° horizontal and vertical wide viewing angles, ambient light sensor, proximity sensor, with advanced multi–touch points and 2–finger gesture capabilities.

    • Powerful Processing — i.MX8M Plus Quad Core A53, 2GB RAM, 32GB ROM processing performance, smoothly running complicated media and graphics–rich applications, such as H.265 video and audio streams encoding and decoding.

    • Flexible Services — Latest Android 11 operating system.

    • Easy Installation — Powering and connectivity via a single Ethernet cable.

    • Optional Connectivity — Simple wireless Bluetooth 5 as well as connection to USB peripheral devices.

    • Reliable Networking — Seamless switching between wired and wireless 802.11ac connectivity.

    • Versatile Powering Options — PoE or power adapter (sold separately).

    • Auto Sensing — Optimized performance and operation according to automatically detected LAN speed.

    • Firmware Update — Define automatic updates at a predefined time of day or update manually using the USB port.

    • Secured Operation — Highly secure operation of applications using password protection, hidden control buttons and more.

    • Secured Deployment — Flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site.

    • Control user interface in meeting and conference rooms, boardrooms, and auditoriums

    • Presentation of room scheduling

  • TECHNICAL SPECIFICATIONS

    Ports
    1 Ethernet: On an RJ−45 (10M/100M/1000M) connector with PoE 802.3at
    1 Micro USB: On a Micro USB (AB) OTG connector

    General
    CPU Performance: ARM Quad−core Cortex−A53 up to 1.8GHz (64 bit)
    System Memory: 4GB LPDDR4
    Internal Storage Memory: 32GB eMMC
    Touch Panel Type: Multi−touch type
    Wireless Communication: Wi−Fi 6, 802.11 a/b/g/n/ax/ax, Bluetooth BT 5.0
    Display Screen: Multi−touch (PCAP)
    Display Size: 5.5” 720x1280 portrait mode
    Wall Mounting Ready: Dedicated bracket for easy mounting
    Contrast Ratio: 350cd/m² brightness, 1000:1 contrast ratio
    Back-light: LED Side−light type

    Audio
    Speaker Unit: Built−in, 1x1W
    Microphone: 2, Built−in
    Audio Codecs: MPEG / OGG / AAC

    Video
    Video Format: H.264 / H.265, VC−1, MPEG−4, VP9 / VP8
    Image Codecs: JPEG / BMP / GIF / PNG

    Power
    PoE: Power over Ethernet 802.3af
    Source: 12V/1A DC adapter (optional)

    User Interface Controls
    Restart (on top, recessed), Restore factory settings (on−back, recessed), Home (in top)

    Indicators
    LED sidebars to indicate room status (requires 3rd party integration)

    Accessories Included
    On−wall mounting bracket, installation screws

    Environmental Conditions
    Operating Temperature & Humidity: 0° to +40°C (32° to 104°F), 5% to 85%
    Storage Temperature & Humidity: −20° to +60°C (−4° to 140°F), 5% to 90%

    Regulatory Compliance (Standards Compliance)
    Safety: CE, FCC, UL, UKCA
    Environmental: RoHs, WEEE

    Product Dimensions
    14.30cm x 8.00cm x 8.00cm (5.63" x 3.15" x 3.15" ) W, D, H

    Product Weight
    0.2kg (0.4lbs) approx

    Shipping Dimensions
    23.50cm x 14.80cm x 7.80cm (9.25" x 5.83" x 3.07" ) W, D, H

    Shipping Weight
    0.5kg (1.1lbs) approx
