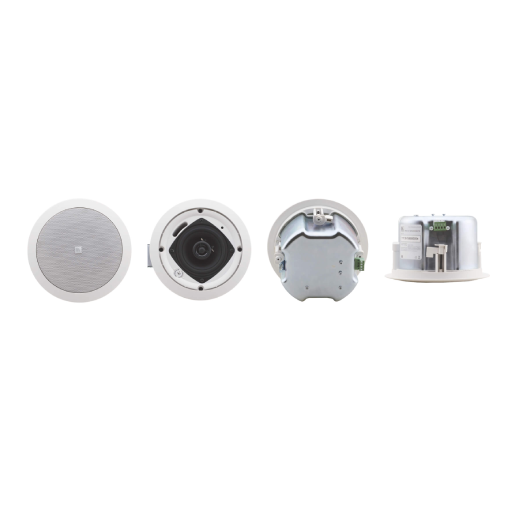

Kramer Galil 4-C

4–Inch, 2–Way Closed–Back Ceiling Speakers

Enquire Now
Download Spec Sheet

Top Features:

  • UL Listed

  • Woofer — 4"

  • Tweeter — 1"

  • Impedance — 8Ω

  • 70V/100V Tap selection

  • 2 Speakers (1 Pair)

Speakers

Discreet Audio Excellence from Above

Immerse spaces with the Kramer Galil 4-C, compact 2-way coaxial speakers with 4" woofer, 0.5" tweeter, 30W RMS handling, and 8Ω/70/100V taps for flexible installs. Delivering clear highs and balanced bass in a closed-back design, they're ideal for ceiling-mounted background/foreground audio in offices or venues.

  • The Galil 4−C Closed−back Compact Ceiling Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. The Galil 4−CO open−back version is also available.

    • Type — 2–way coaxial speaker.

    • Woofer — 4” polypropylene cone.

    • Tweeter — 0.5” Mylar dome.

    • Impedance — 8Ω.

    • Power Handling — 30W RMS, 80W continuous program.

    • Transformer Taps — 70V: 30W/15W/7.5W/3.7W/Off (Lo–Z); 100V: 30W/15W/7.5W/Off (Lo–Z).

    • UL 1480 & 2043 Listed

    • Package Includes — 2 speakers (1 pair), ceiling mounting kit, template and user manual.

    • Installation Dimensions — External diameter: 19.5cm (7.68"); cutout diameter: 16.7cm (6.57")

    • Conference rooms, boardrooms, classrooms, hotels, restaurants

  • TECHNICAL SPECIFICATIONS

    Description
    2−way closed−back ceiling speakers

    Frequency Response
    85Hz to 20kHz @−10dB, 100Hz to 20kHz @±3dB

    Woofer
    4” (103mm) polypropylene with rubber surround

    Tweeter
    0.5” (13mm) Mylar

    Impedance
    8Ω (transformer tap in off position)

    Transformer Taps
    70V – 30W/15W/7.5W/3.7W/Off (Lo−Z), 100V – 30W/15W/7.5W/Off (Lo−Z)

    Sensitivity
    85dB SPL, 1W@1m

    Max SPL
    Continuous: 95dB, Peak: 97dB

    Power Handling
    30W RMS, 80W continuous program

    Crossover Frequency
    6kHz

    Coverage Angle
    90°

    Directivity Factor (Q)
    4.2 averaged 1kHz to 10kHz

    Directivity Index (DI)
    6.2dB averaged 1kHz to 10kHz

    Input Connector
    Terminal block

    Materials
    ABS bezel, aluminum grill, metal back can

    Operating Temperature
    0° to +40°C (32° to 104°F)

    Storage Temperature
    −40° to +70°C (−40° to 158°F)

    Humidity
    10% to 90%, RHL non−condensing

    Weight per Single Speaker
    1.75kg (3.9lbs) approx

    Shipping Weight (for Pair)
    6.1kg (13.5lbs) approx

    Installation Dimensions
    Mounting depth: 10.7cm (4.2”)
    External diameter: 19.5cm (7.68")
    Cutout diameter: 16.7cm (6.57")

    Accessories
    Installation bracket, safety cord attached to grill, ceiling mounting kit

    Color
    White
