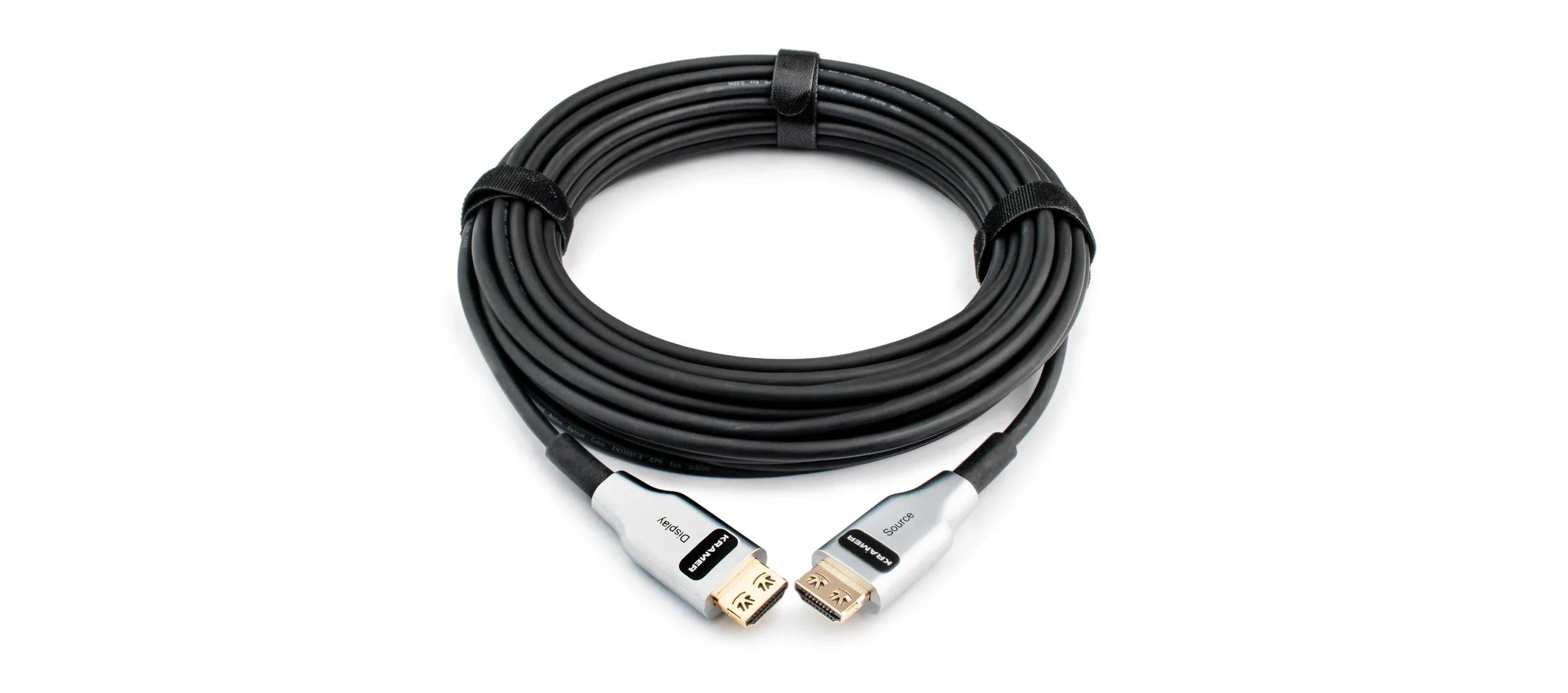

Kramer CLS-AOCH/UF

Ultra High–Speed HDMI Optic Hybrid Cable — LSHF

Enquire Now
Download Spec Sheet

Top Features:

  • Max. data rate: 48Gbps

  • Max. resolution: 8K@60Hz

  • Low Smoke & Halogen Free

  • K–Lock connectors

  • Lengths — 10–100m (33–328ft)

  • No external power is required

Future-Proof Optical Cable for 8K Performance

Unlock ultra-high bandwidth with the Kramer CLS-AOCH/UF, a 48Gbps active optical HDMI cable supporting 4K@120Hz or 8K@60Hz (4:2:0) up to 100m, with embedded 8-channel PCM, Dolby TrueHD, and DTS-HD audio. K-Lock connectors ensure secure, low-latency connections without external power. Designed for cutting-edge AV systems in broadcast and enterprise setups.

  • CLS−AOCH/UF is an innovative active hybrid optical HDMI cable for sending 8K signals up to 100 meters (328 ft).
    CLS−AOCH/UF is thinner, lighter and more flexible than most of the copper or even standard optical cables. It offers transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference.

    • Video Resolution — Up to 4K@120, 8K@60Hz (4:2:0)

    • High Data Transfer Rate — Up to 48Gbps

    • Embedded Audio — PCM 8–channel, Dolby Digital True HD and DTS–HD Master Audio

    • HDMI Support — HDCP 2.2, HDR, EDID, eARC, and DSC as specified in HDMI 2.1

    • High–Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity

    • Reduced EMI & RFI.

    • Thin Construction — 4.5mm diameter

    • Ultra Certified (up to 66ft)

    • Jacket Construction — Low smoke & halogen free

    • REACH RoHS 2011/65/EU, CE, FCC, compliant.

    • Varied Selection of Lengths — Available in versions from 10 to 100m (33 to 328ft)

  • TECHNICAL SPECIFICATIONS

    Video
    Max Resolution: 8K@60Hz
    Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
    HDMI Support: Dynamic HDR, HDCP 2.2, EDID and CEC, eARC and ETH

    Audio
    Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD

    Physical
    HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
    HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector

    General
    Cable Type: Hybrid with OM3 fiber and copper wire
    O/E Converter: 4 channel 850 nm VCSEL array
    Material: Bare Copper
    Flammability: LSHF

    Mechanical
    Cable Bending Radius: 45mm

    Jacket
    Color: Black
    Diameter: 4.5mm

    Electrical
    Power Consumption: 250mW (max)

    Environmental Conditions
    Operating Temperature: 50°C
    Storage Temperature: −40°C to 70°C

    Standards Compliance - EC Verified
    Safety: CE / FCC

    Regulatory Compliance (Standards Compliance)
    Environmental: REACH, RoHS 2011/65/EU
