Kramer 617R/T

4K HDR HDMI Transmitter/Receiver over Extended–Reach MM Fiber Optic

Enquire Now
Download Spec Sheet

Top Features:

  • Max. Resolution - 4K@60(4:4:4).

  • Max. Data Rate - 18Gbps.

  • HDMI Support - HDCP 2.2, EDID and CEC. 18Gbps, 3D content transmission, and HDR10 as specified in HDMI 2.0.

  • High Quality Connectors - 24K gold–plated and corrosion–resistant for the best possible connectivity.

  • K-Lock Pull–Resistant Connectors - Provides 15lbs of restraining force for a non–slip connection.

 HDMI   |  4K/60 UHD (4:4:4)

Fiber-Optic Freedom for Crystal-Clear Video

Secure your high-bandwidth AV links with the Kramer 617R/T—a compact fiber optic transmitter and receiver set supporting 4K@60Hz (4:4:4) resolution at 18Gbps, including HDCP 2.2, EDID, CEC, 3D content, and HDR10 per HDMI 2.0 standards. It enables extension up to 656ft (200m) on dual LC multi-mode OM3 fiber optic cable for noise-free, EMI-immune transmission. With 24K gold-plated connectors and K-Lock pull-resistant design, it offers easy plug-and-play installation for professional AV integration.

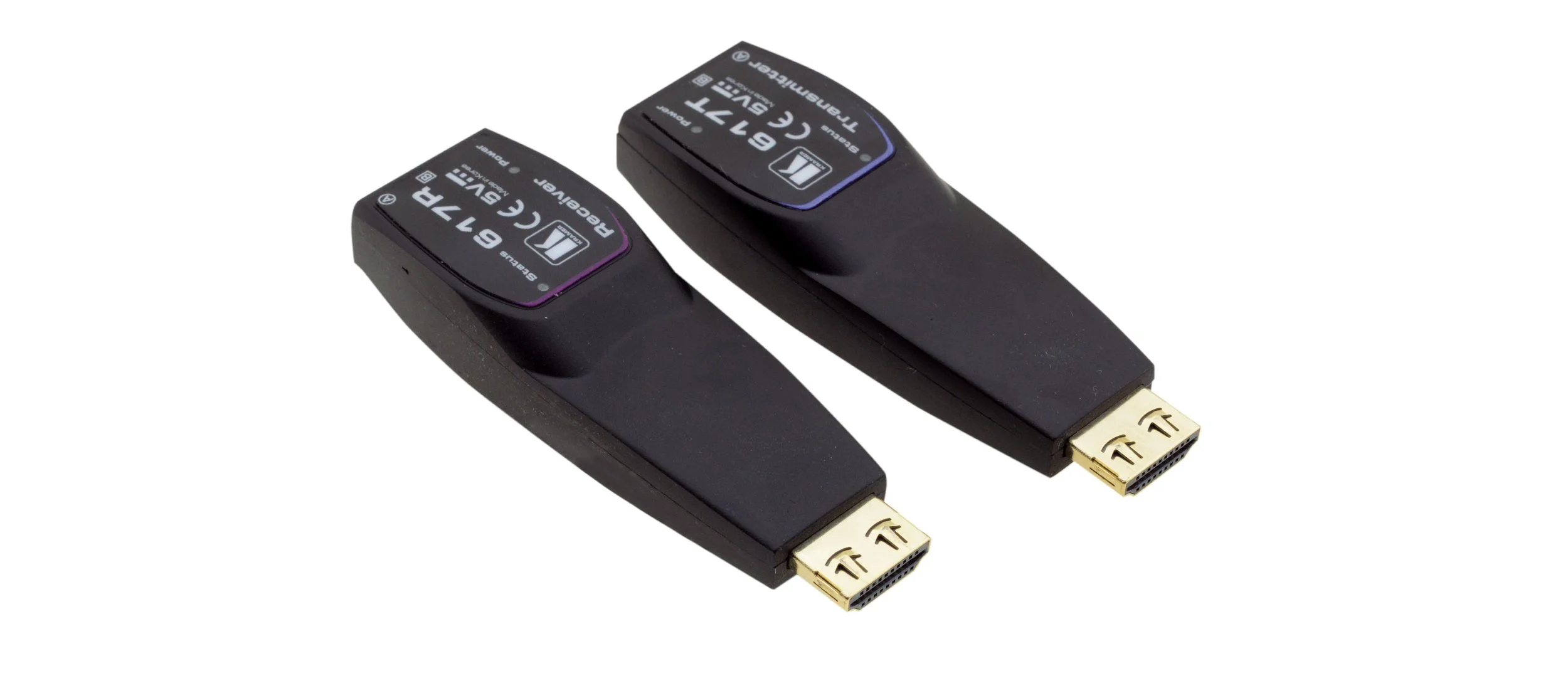

  • 617R/T is a compact fiber optic transmitter and receiver capable of extending HDMI signals over fiber optic cable. This set of extenders supports 4K@60 (4:4:4) resolution up to 656 feet (200 meters) on a dual LC multi−mode fiber cable.

    • Max. Resolution — 4K@60(4:4:4).

    • Max. Data Rate — 18Gbps.

    • HDMI Support — HDCP 2.2, EDID and CEC. 18Gbps, 3D content transmission, and HDR10 as specified in HDMI 2.0.

    • High Quality Connectors — 24K gold–plated and corrosion–resistant for the best possible connectivity.

    • K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.

    • Max. Extension — 656ft (200m) over dual LC multi–mode OM3 fiber optic cable.

    • Compact Design — For easy plug and play installation.

    • Pure fiber connectivity for secure applications.

  • TECHNICAL SPECIFICATIONS

    VIDEO:
    Max. Resolution: 4K @60Hz 4:4:4 (4096x2160)
    Data Rate: Maximum 6 Gbps per channel
    Compliance: Supports HDMI 2.0, HDCP 2.2, EDID, and CEC

    PORTS:
    617T (Source End): Male HDMI connector
    617R (Display End): Male HDMI connector
    617T (Source End): Micro USB (for power supply)
    617R (Display End): Micro USB (for power supply)

    POWER:
    5V via USB source, external source, or HDMI PIN #18 (617T only)
    Power Consumption: <2.5W

    CABLE STRUCTURE:
    Recommended Cable Structure: Dual Multi−mode OM3 (50/125µm) glass fiber
    Optical Connectors: Duplex LC connectors
    Max. Fiber Cable Attenuation (λ=850nm): 2.5dB/KM
    Max. Skew: 0.4ns
    Max. Insertion Attenuation: 0.5dB
    Total Optical Attenuation: 1dB max @ 656ft (200m) extension
    Maximum Length: 656ft (200m)

    ENVIRONMENTAL CONDITIONS:
    Operating Temperature: 0° to +50°C (32° to 122°F)
    Storage Temperature: −30° to +70°C (−22° to 158°F)
    Operating Humidity: 0 to 85%

    STANDARDS COMPLIANCE:
    CE: EN 55032:2012/AC:2013 (Class A), EN 61000−3−2:2014, EN 61000−3−3:2013, EN 55024:2010
    FCC: CFR 47 part 15 SUBPART B Class B, Section 15.101
    Environmental: RoHS (2011/65/EU)

    ACCESSORIES INCLUDED:
    2 Micro USB to USB type−A cables
    2 Wall−mount power adaptors
