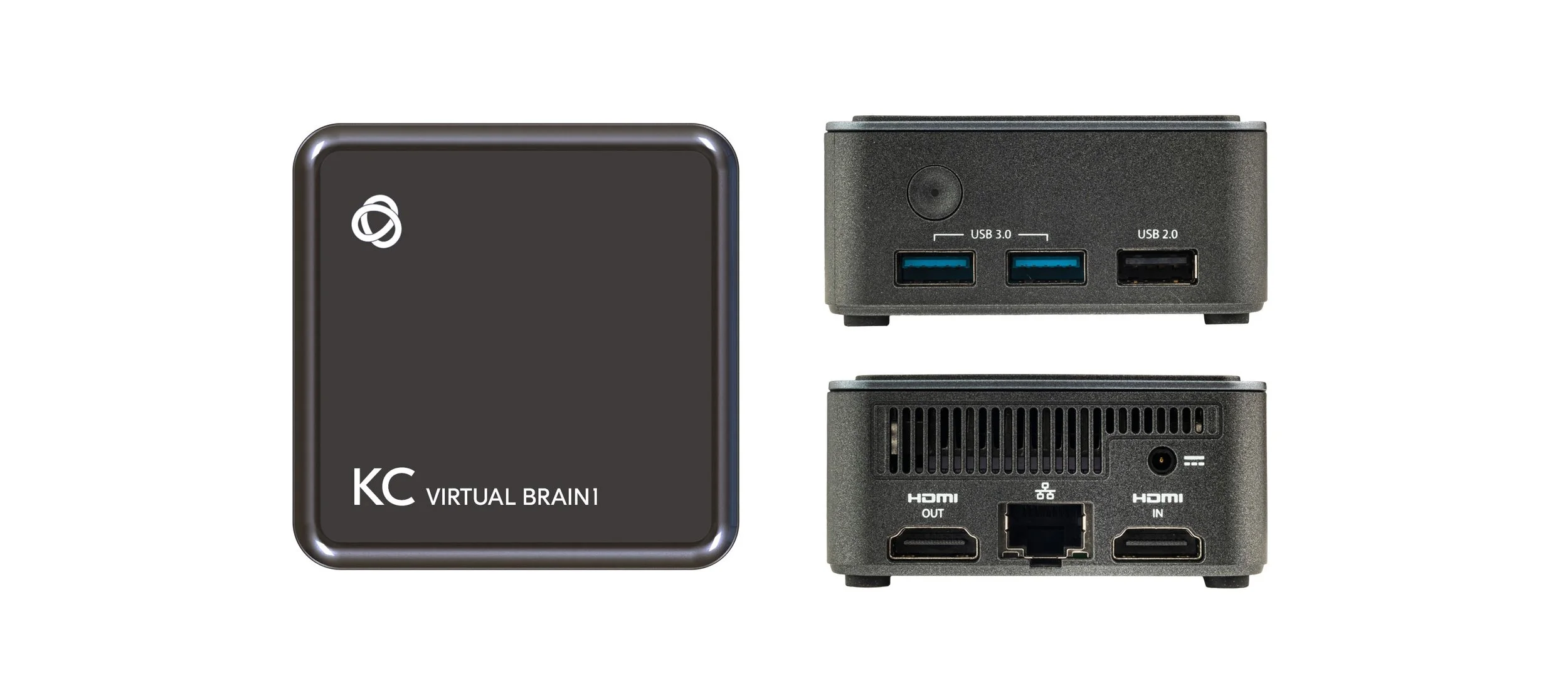

KC−Virtual Brain1 is a hardware platform with 1 instance of Kramer BRAINware software already installed on the device. KC−Virtual Brain1 is designed to maximize the features and benefits of Kramer BRAINware for controlling 1 standard space (e.g. a standard space could include a scaler, monitor, lighting system, touch panel and keypad).
Kramer BRAINware is an enterprise−class, revolutionary, user−friendly, software application that enables you to execute all your room control actions straight from a computer without installing a physical Brain between the user interface and the controlled devices. Using the power of Kramer Control cloud–based control & space management platform, Kramer BRAINware enables you to operate multiple devices over Ethernet such as scalers, video displays, audio amplifiers, Blu−ray players, sensors, screens, shades, door locks, and lights.
Designing a system was never easier, with Kramer Control's intuitive drag & drop Builder. Install, configure and modify your control system without any prior knowledge in programming.

• Simplified AV Installation — Control a room without installing a physical Brain.

• Format Conversion — Use Kramer FC family of control format converters to enable controlling almost any device.

• Fully Customizable UI — Using Kramer Control, easily personalize your control interface any way you like.

• Space Controller — Controls any AV device with its corresponding logic.

• Simple Configuration — Install and start using the platform in minutes with easy configuration.

TECHNICAL SPECIFICATIONS

Ports
3 USB: On 2 USB 3.0 connectors and 1 USB connector
1 LAN: On an RJ−45 connector

Inputs
1 HDMI: On a female HDMI connector

Outputs
1 HDMI: On a female HDMI connector

General
Processor: Intel® Gemini Lake QC SOC
Main Memory: 4GB LPDDR4 (2400)
Storage: 32GB eMMC
Networking: 1 x Gigabit LAN Wi–Fi 802.11 ac/b/g/n dual band
Operating System Linux

Power
Source: 12V DC
Consumption: 1.7A

Environmental Conditions
Operating Temperature 0° to +40°C (32° to 104°F)
Storage Temperature −40° to +70°C (−40° to 158°F)
Humidity 10% to 90%, RHL non−condensing

Extended USB
Safety: CE

Enclosure
Type: Aluminum
Cooling Fan with sink

Accessories Included:
Power adapter, Video Switching control cable, VESA mount

Physical
Product Dimensions
7cm x 7cm x 3.3cm (2.8" x 2.8" x 1.3" ) W, D, H
Product Weight 0.2kg (0.4lbs) approx

Shipping Dimensions
15.7cm x 12cm x 8.7cm (6.2" x 4.7" x 3.4" ) W, D, H
Shipping Weight 0.6kg (1.3lbs) approx

Product Dimensions
7.30cm x 7.30cm x 3.34cm (2.87" x 2.87" x 1.31" ) W, D, H
Product Weight 0.2kg (0.4lbs) approx

Shipping Dimensions
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
Shipping Weight 0.6kg (1.3lbs) approx
