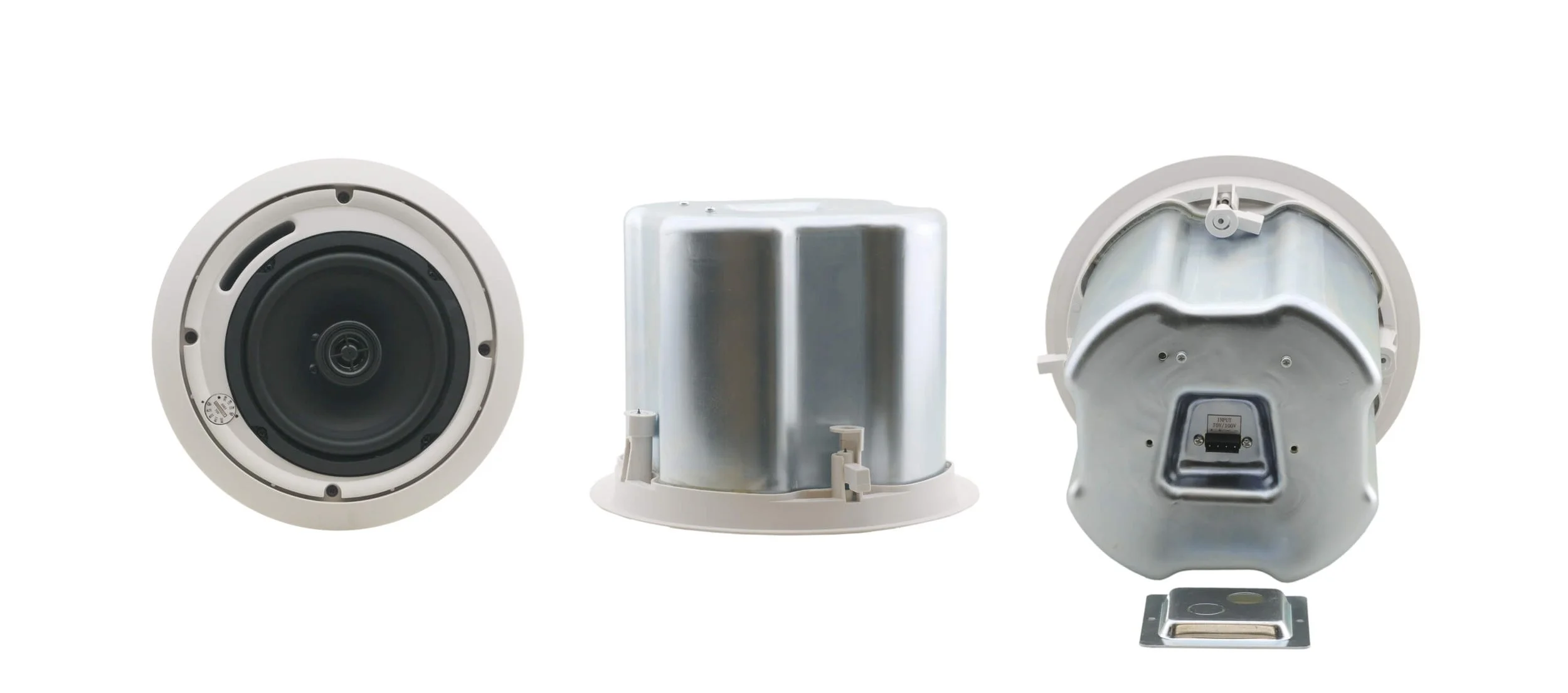

Kramer Galil 6-C

6.5–Inch, 2–Way Closed–Back Ceiling Speakers

Enquire Now
Download Spec Sheet

Top Features:

  • UL Listed

  • Woofer — 6.5” polypropylene cone

  • Tweeter — 0.5” Mylar dome

  • Impedance — 8Ω

  • Power Handling — 30W RMS, 80W Continuous

  • Transformer Taps — 70/100V

  • 2 Speakers (1 Pair)

Speakers

Balanced Audio for Discreet Ceiling Installs

Deliver clear sound with the Kramer Galil 6-C, pair of 6.5" 2-way coaxial speakers handling 30W RMS (80W program) at 8Ω or 70/100V, with polypropylene woofer and Mylar tweeter for even coverage. Closed-back design suits background/foreground audio in offices and venues.

  • The Galil 6−C (formerly SPK−C612) Closed−back Ceiling Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

    • Type — 2–way coaxial speaker.

    • Woofer — 6.5” polypropylene cone.

    • Tweeter — 0.5” Mylar dome.

    • Impedance — 8Ω.

    • Power Handling — 30W RMS, 80W continuous program.

    • Transformer Taps — 70V: 30W/15W/7.5W/3.7W/Off (Lo–Z); 100V: 30W/15W/7.5W/Off (Lo–Z).

    • UL 1480 & 2043 Listed

    • Package Includes — 2 speakers (1 pair), ceiling mounting kit, template and user manual.

    • Conference rooms, boardrooms, classrooms, hotels, restaurants

  • TECHNICAL SPECIFICATIONS

    Description:
    2−way closed−back ceiling speakers

    Frequency Response:
    80Hz to 20kHz @ −10dB, 95Hz to 20kHz @ ±3dB

    Woofer:
    6.5” (165mm) polypropylene with rubber surround

    Tweeter:
    0.5” (13mm) Mylar dome

    Impedance:
    8Ω (transformer tap in off position)

    Transformer Taps:
    70V – 3.7W/7.5W/15W/30W/Off (Lo−Z), 100V – 7.5W/15W/30W/Off (Lo−Z)

    Sensitivity:
    87dB SPL, 1W @1m

    Max SPL:
    Continuous: 100.7dB, peak: 103.7dB

    Power Handling:
    30W RMS, 80W continuous program

    Crossover Frequency:
    9.2kHz

    Coverage Angle:
    101°

    Directivity Factor (Q):
    7.5 averaged 1kHz to 10kHz

    Directivity Index (DI):
    8.6dB averaged 1kHz to 10kHz

    Input Connector:
    Terminal block

    Materials:
    ABS bezel, aluminum grill, metal back can

    Operating Temperature:
    0° to +40°C (32° to 104°F)

    Storage Temperature:
    −40° to +70°C (−40° to 158°F)

    Humidity:
    10% to 90%, RHL non−condensing

    Weight per Single Speaker:
    2.85kg (6.28lbs) approx

    Shipping Weight (for Pair):
    8kg (17.64lbs) approx

    Installation Dimensions:
    Mounting depth: 19.6cm (7.72")
    Cutout diameter: 22.4cm (8.82")

    Accessories:
    Installation bracket, safety cord attached to grill, ceiling mounting kit

    Colors:
    Available in white

    Model:
    Galil6-C (Ceiling Speakers)
