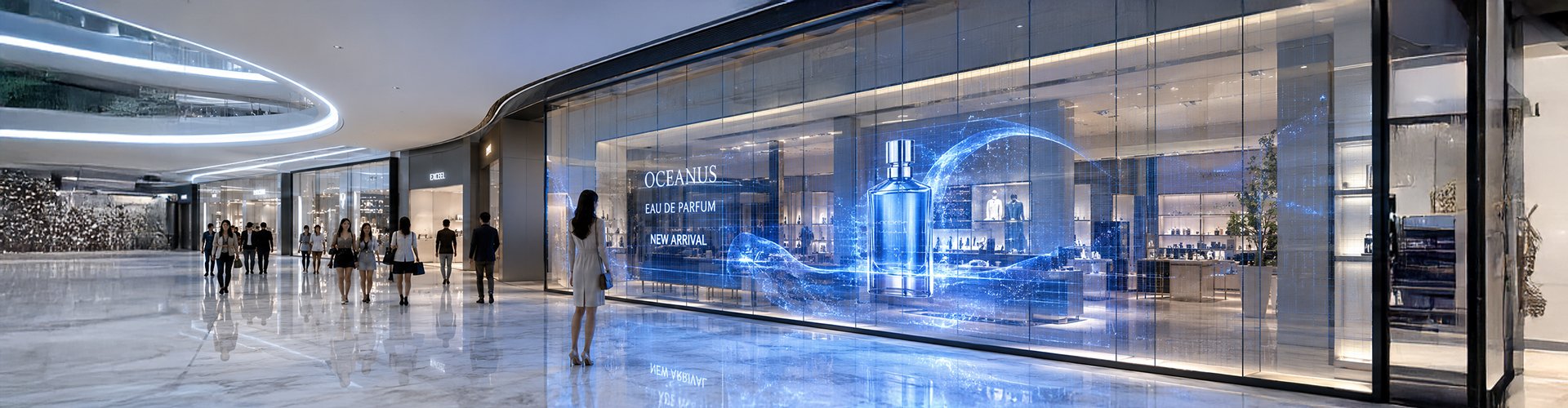

Indoor & Outdoor Versatility

Suitable for indoor venues, outdoor events, exhibitions, stages, and commercial display environments.

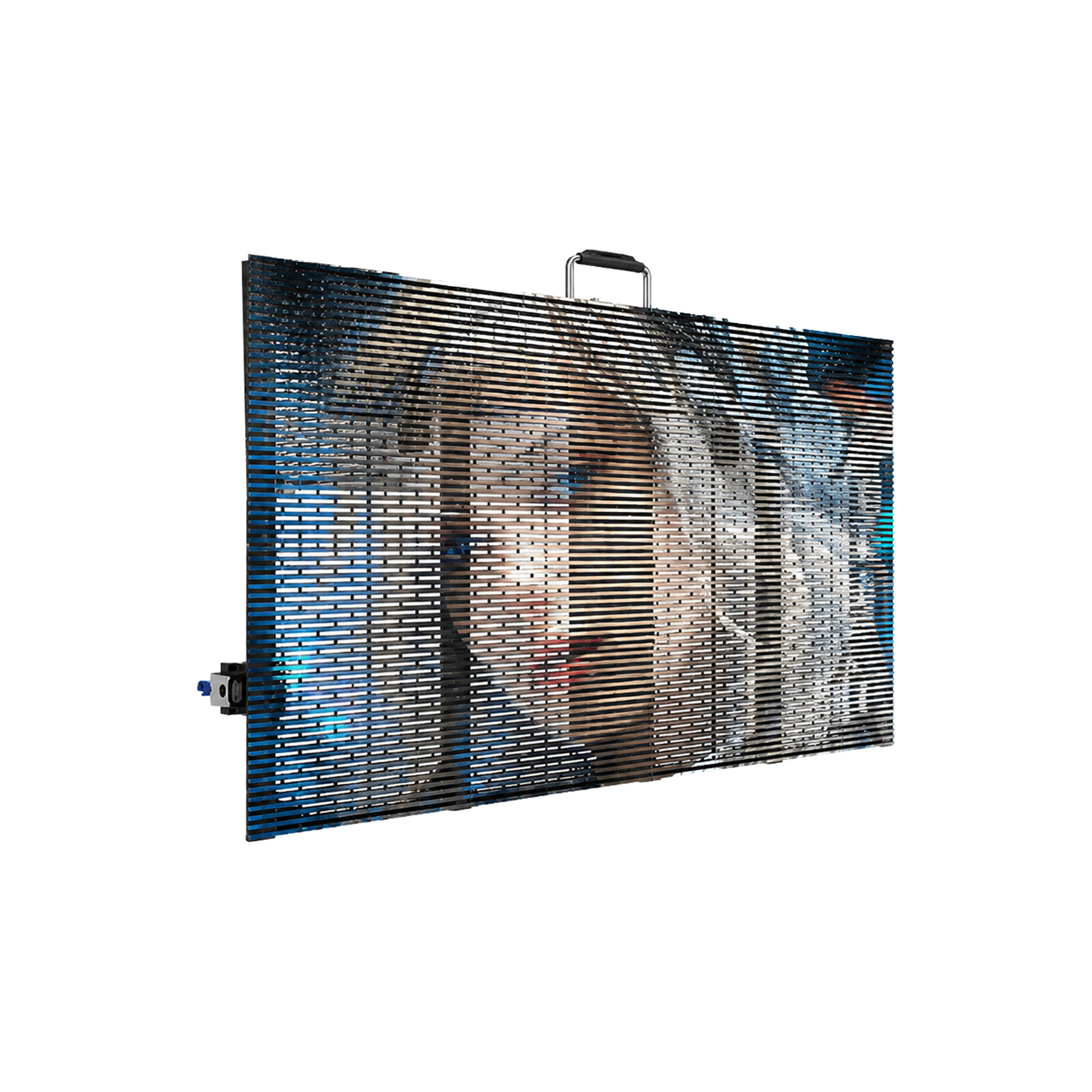

High-Transparency Visuals

Preserves visibility through the display while maintaining smooth, stable image performance.

Outdoor-Ready Protection

A weather-resistant die-cast aluminium cabinet supports dependable operation in demanding environments.

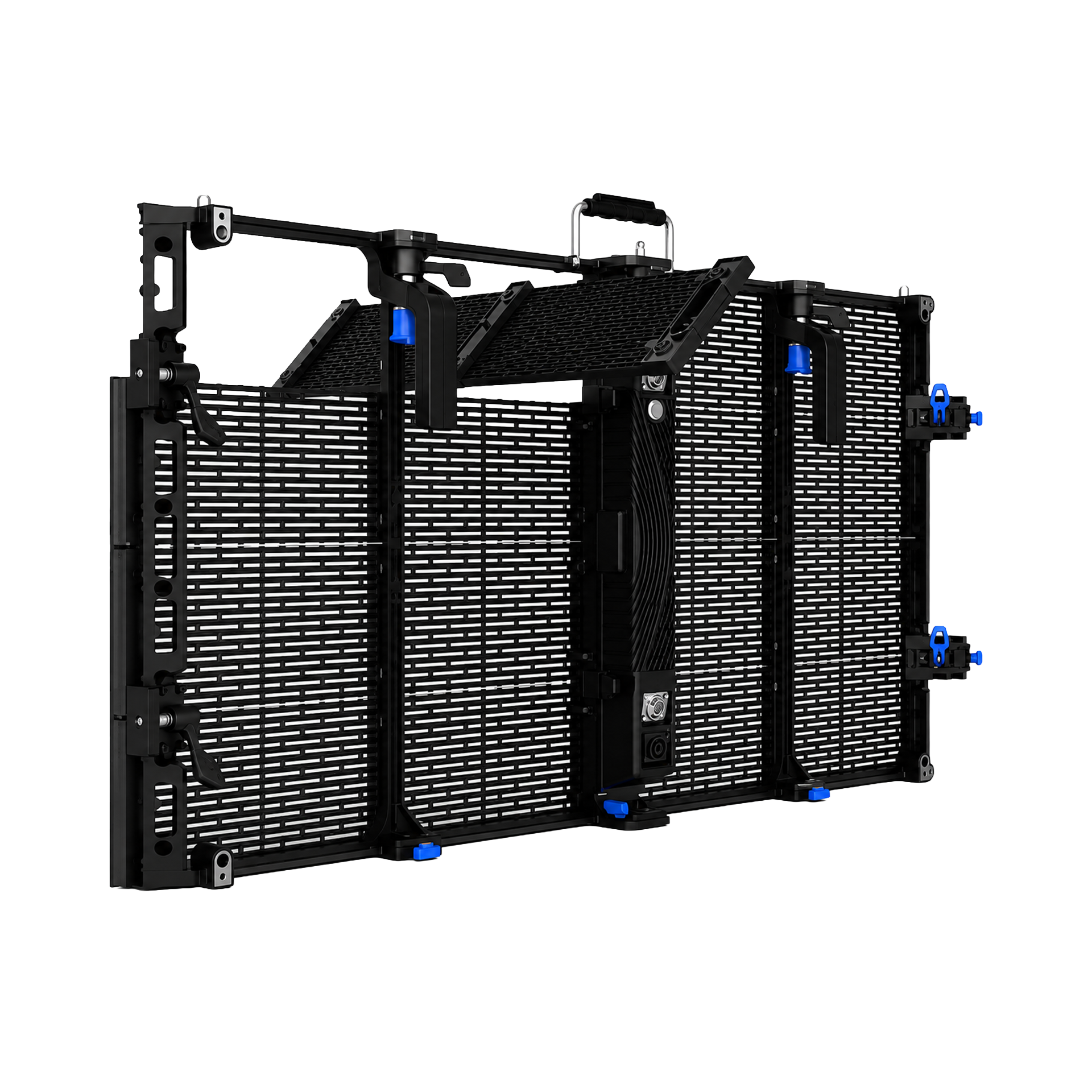

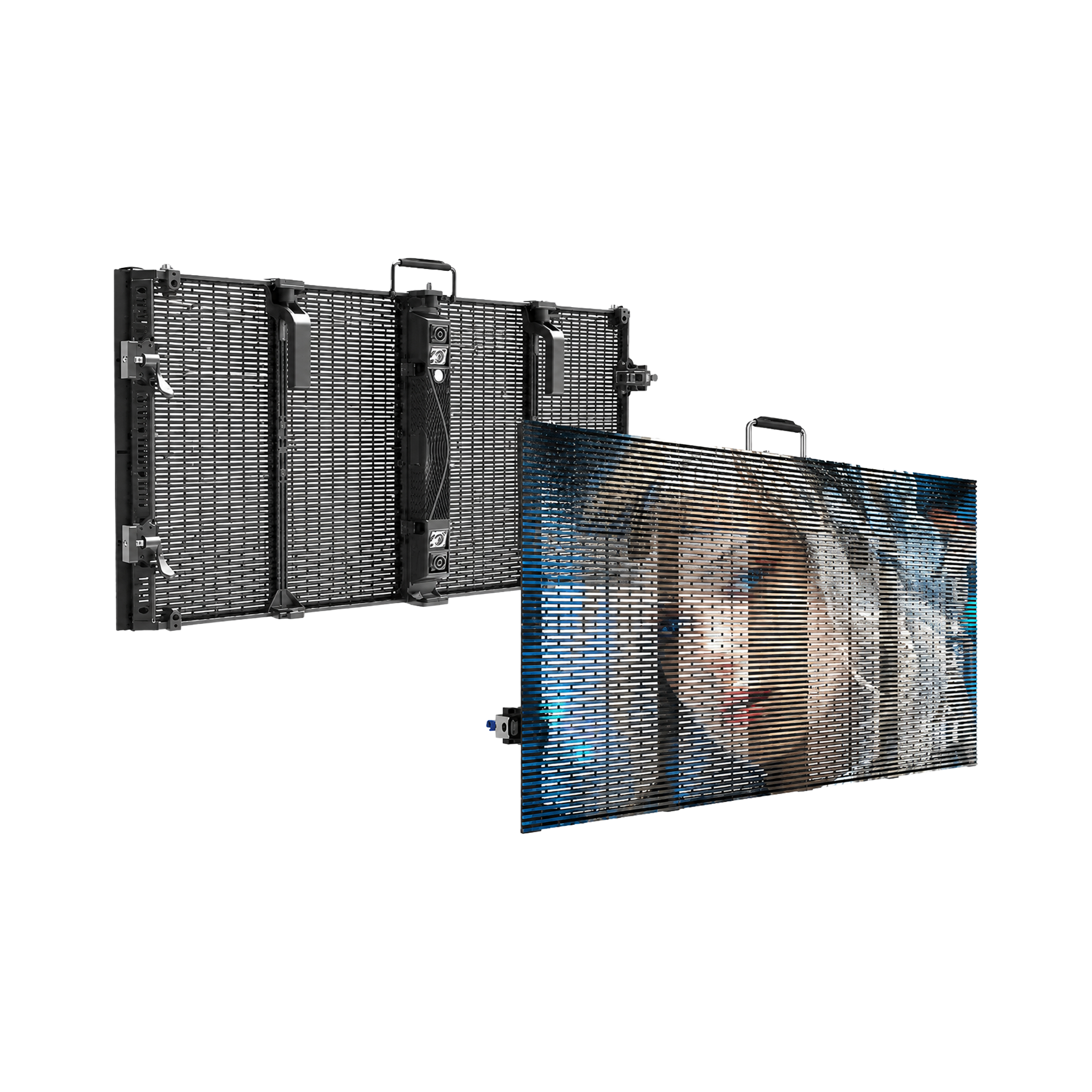

Slim & Lightweight Design

Designed for easier transportation, handling, installation, and dismantling.

Fast Installation & Maintenance

Quick-lock connections support rapid setup, single-person installation, and efficient maintenance.

Hanging & Stacking Installation

Supports secure hanging and stacking installation for diverse application requirements.

Pixel Pitch : H 3.9 / V 7.8 mm | H 7.8 / V 7.8 mm
LED Type : SMD1516, 3-in-1
Module Size : 500 × 250 mm
Module Resolution : 128 × 32 px | 64 × 32 px
Cabinet Size : 1000 × 500 mm
Cabinet Weight : 7.5 kg
Cabinet Area : 0.5 m²
Pixel Density : 32,768 dots/m² | 16,384 dots/m²
Screen Configuration : Flat
Brightness : 4,000–4,200 cd/m²
Refresh Rate : 1,920–7,680 Hz
Grey Scale : 14–16 bit
Viewing Angle : H 160° / V 140°
Scanning Method : 1/8 Scan
Control System : NovaStar
Working Voltage : AC 200–240 V, 50/60 Hz
Power Consumption : 200 W/m² average / 500 W/m² maximum
Operating Temperature : -20°C to +50°C
Operating Humidity : 10%–90% RH, non-condensing
IP Grade : IP65
Expected Life Span : >80,000 hours
