LED Solutions – GOB

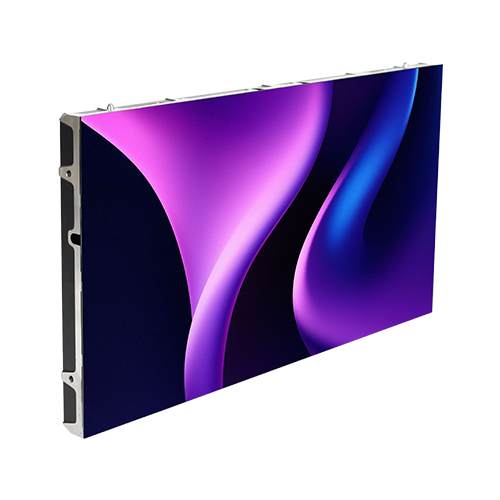

Indoor GOB LED Displays

Glue-on-Board Protection. Built to Last.

Specktron GOB indoor LED displays apply a transparent epoxy resin layer over standard SMD LEDs, sealing the module surface against dust, moisture, impact, and oxidation, while delivering broadcast-grade output for high-traffic environments.

   ●  Transparent resin encapsulation for surface protection
   ●  Reduced LED damage during handling and operation
   ●  Available in P1.25 to P2.5
   ●  ≥3,840Hz refresh rate with 14-bit colour depth
   ●  Improved visual uniformity and wide viewing angle
   ●  Enhanced contrast with reduced glare
   ●  Lower maintenance requirements

Enquire Now
Download Brochure

Technical Specifications

  • Sealed Surface Protection

    Transparent resin encapsulation helps protect the LED surface from moisture, dust, oxidation, and accidental impact.

    Reduced LED Damage

    Protects exposed LEDs and reduces the risk of pixel damage during handling, transportation, installation, and operation.

    Improved Visual Uniformity

    The matte GOB surface improves flatness and colour consistency while reducing glare and enhancing contrast.

    Wide Viewing Angle

    Maintains consistent image quality across wide viewing positions.

    Enhanced Contrast

    The matte surface reduces glare and improves perceived contrast and image clarity.

    Lower Maintenance

    Improved protection against impact and environmental exposure helps reduce damage and maintenance requirements.

    High Refresh Rate

    Delivers ≥3,840Hz refresh rate for smooth, flicker-free output in demanding, high-traffic environments.

    Broadcast-Grade Colour Depth

    14-bit colour depth ensures rich, accurate colour reproduction for broadcast-quality visuals

    Fine Pixel Pitch Range

    Available from P1.25 to P2.5, suited for close-viewing indoor application

  • Pixel Pitch : 1.25 / 1.5 / 1.86 / 2.5
    LED Type : SMD with GOB encapsulation
    Module Size : 320 × 160 mm
    Cabinet Size : 640 × 480 mm
    Module Resolution : 256 × 128 px / 208 × 104 px / 172 × 86 px / 128 × 64 px
    Cabinet Resolution : 512 × 384 px / 416 × 312 px / 344 × 258 px / 256 × 192 px
    Brightness : 600–650+ cd/m²
    Refresh Rate : ≥ 3,840 Hz
    Colour Depth : 14-bit
    Contrast Ratio : 5000:1
    Viewing Angle : ≥ 160°

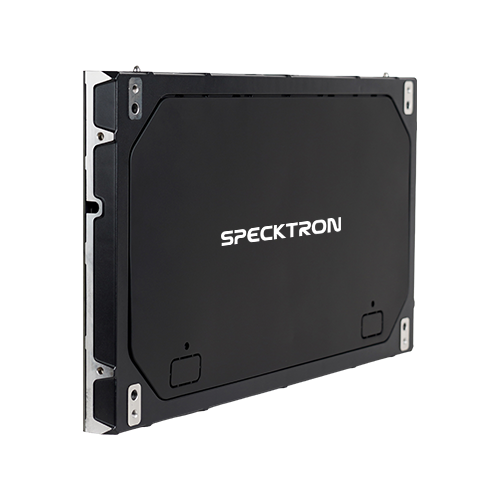

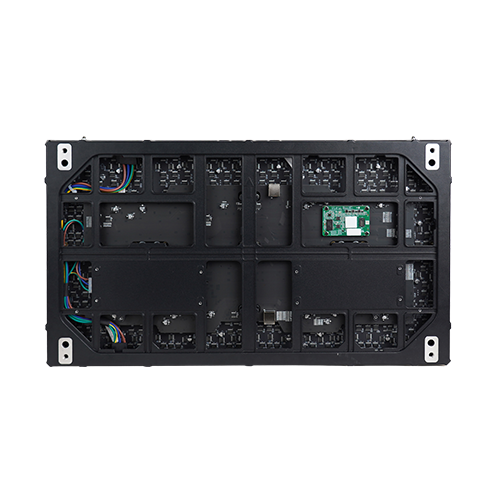

    Maintenance : Rear Access (Front Optional)
    Operating Temp : -20°C to +50°C
    Lifespan : 100,000 hours
