Flexible LED Displays

Bendable Modules. Creative Freedom.

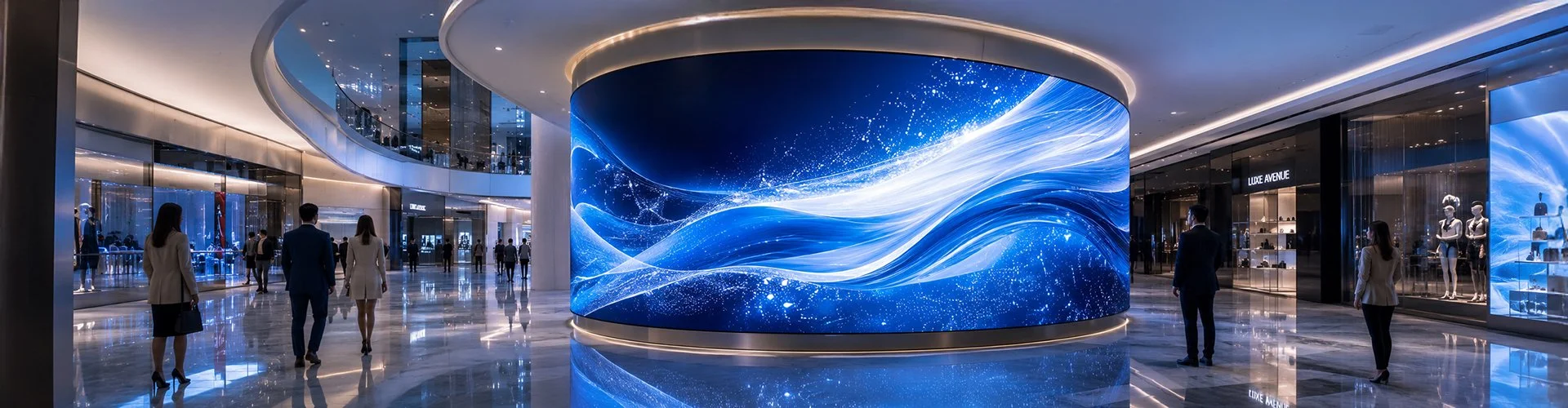

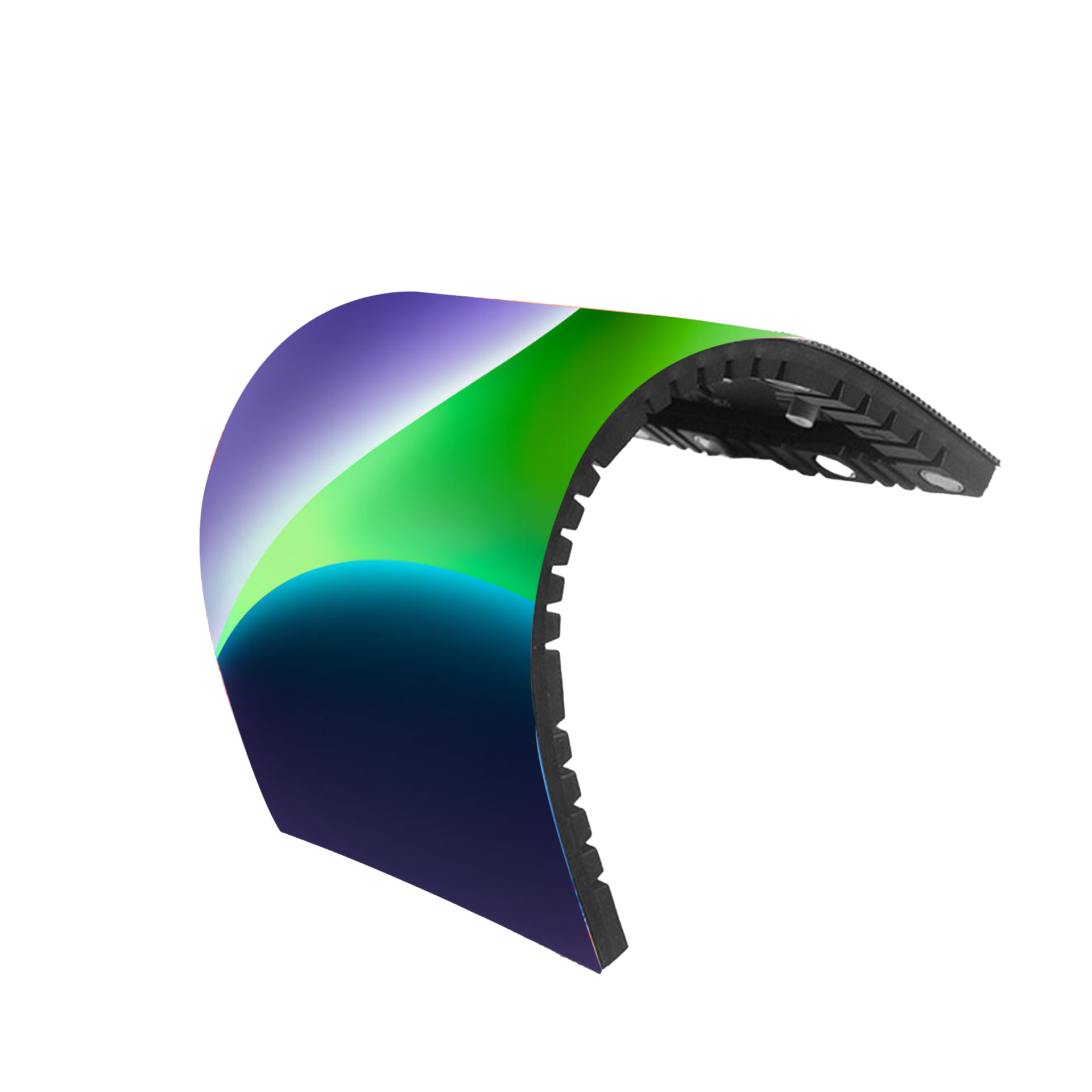

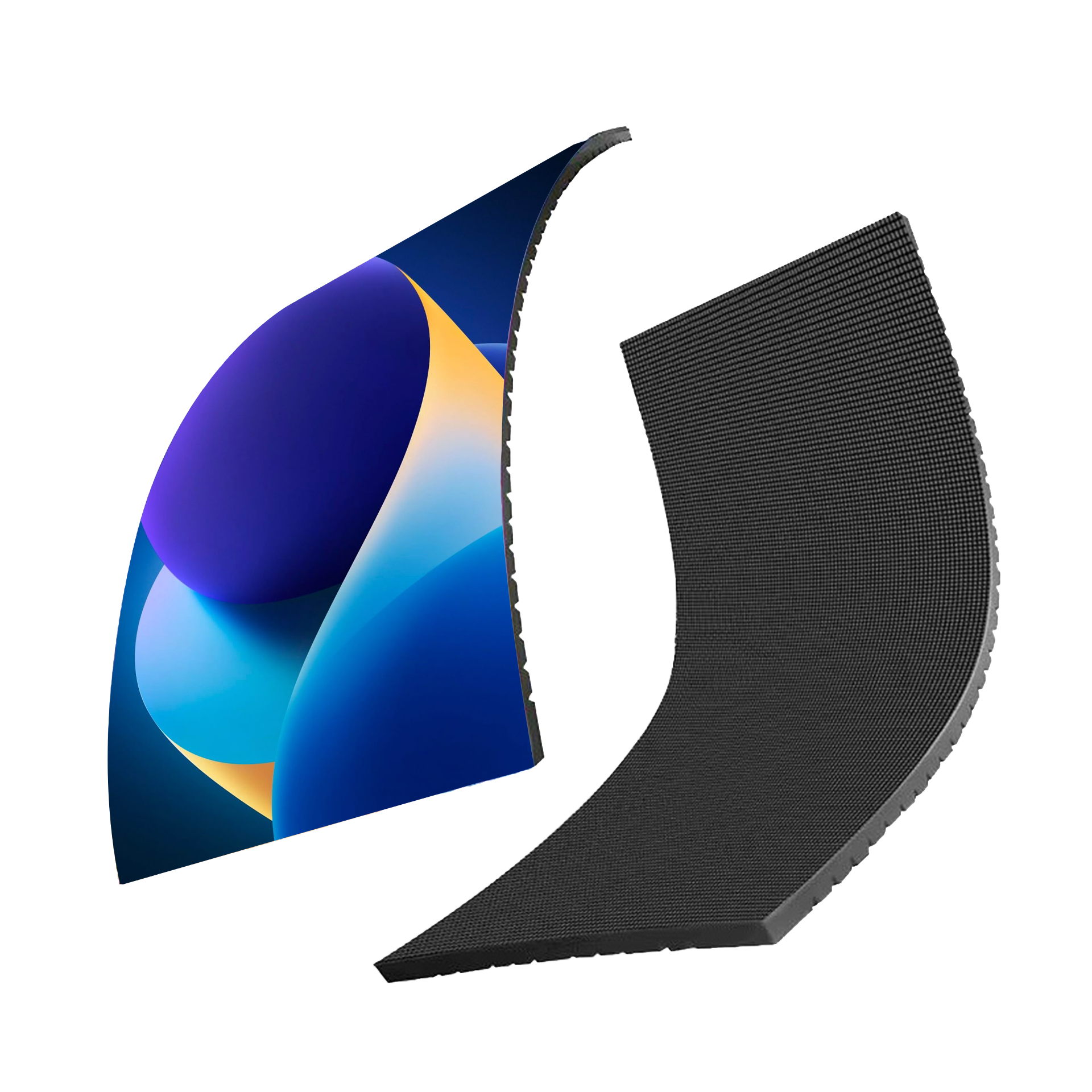

Specktron Flexible LED displays use soft PCB modules that bend, curve, and wrap around non-flat surfaces — pillars, arches, concave walls, cylindrical structures, and custom architectural shapes. High refresh rates and deep colour depth deliver smooth, vivid visuals on surfaces that rigid cabinets simply cannot reach.

Enquire Now
Download Brochure

Technical Specifications

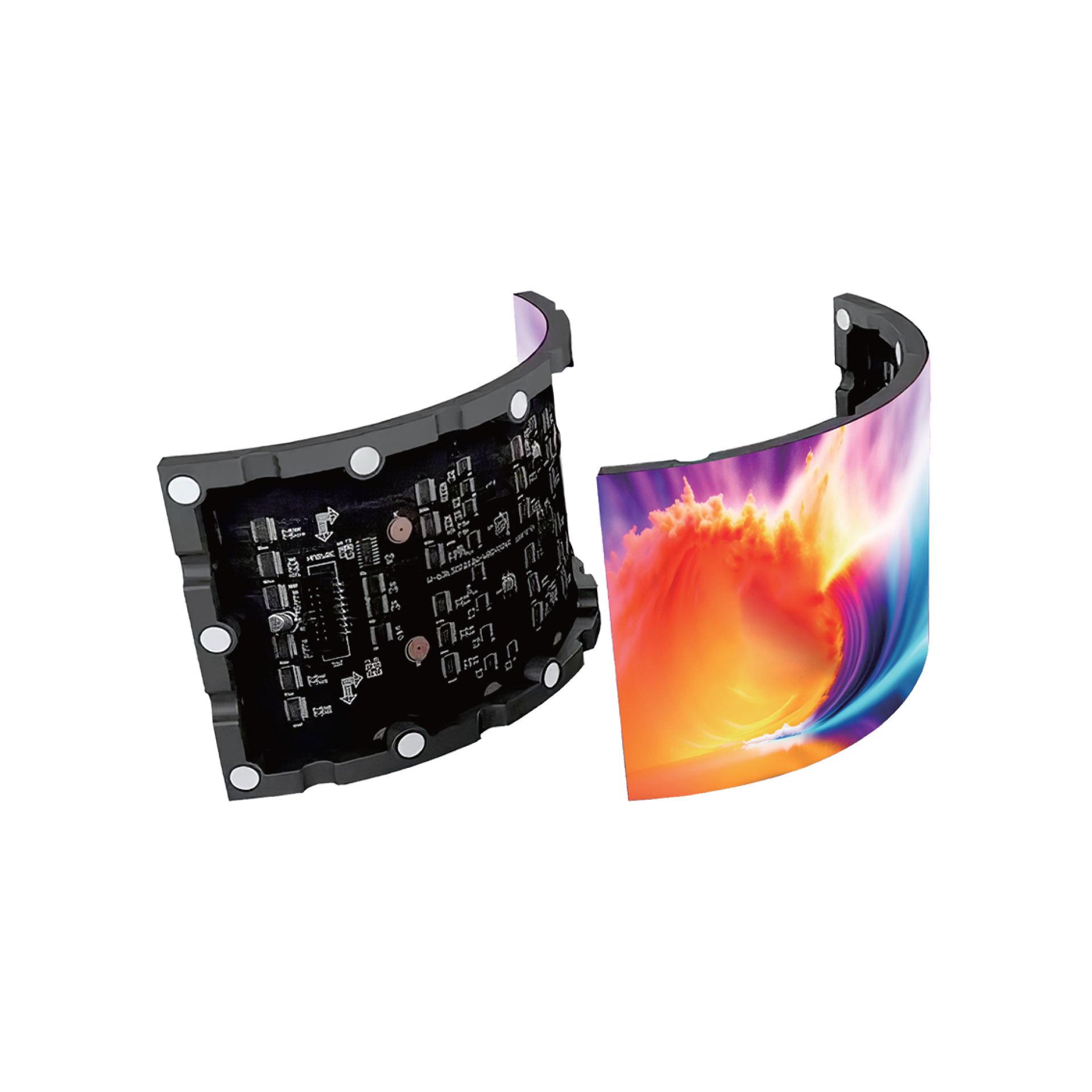

  • Flexible Module & Fixed-Cabinet Options

    Available as soft LED modules for custom structures or purpose-engineered fixed cabinets for curved, cylindrical, and defined-radius installations.

    Controlled Curved Configurations

    Supports concave, convex, cylindrical, wave, and other creative forms within the specified module or cabinet curvature range.

    Slim, Lightweight Construction

    Lightweight modules and cabinet structures simplify handling and help reduce structural load.

    Seamless Visual Continuity

    Precision alignment creates smooth, continuous imagery across curved and irregular display surfaces.

    Efficient Installation & Maintenance

    Magnetic module mounting and engineered cabinet systems support efficient installation, front access, and component replacement, depending on the selected design.

    Professional Visual Performance

    Selected configurations deliver high-refresh output, consistent colour reproduction, and stable on-camera performance.

  • LED Type : SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121
    Pixel Pitch : 1.25 mm | 1.53 mm | 1.86 mm | 2.00 mm | 2.50 mm | 3.07 mm | 4.00 mm
    Pixel Density : 640,000 dots/m² | 422,500 dots/m² | 288,900 dots/m² | 250,000 dots/m² | 160,000 dots/m² | 105,625 dots/m² | 62,500 dots/m²
    Module Dimensions (W×H×D) : 320 × 160 × 8.5 mm
    Module Resolution : 256 × 128 px | 204 × 104 px | 172 × 86 px | 160 × 80 px | 128 × 64 px | 104 × 52 px | 80 × 40 px
    Module Weight : 0.27 kg
    Cabinet Dimensions (W×H×D) : 640 × 480 × 70 mm
    Cabinet Resolution : 512 × 384 px | 416 × 312 px | 344 × 258 px | 320 × 240 px | 256 × 192 px | 208 × 156 px | 160 × 120 px
    Cabinet Weight : 7.5 kg
    Panel Material : Die-cast Aluminium
    Refresh Rate : ≥ 3840 Hz
    Brightness : 800 cd/m²
    Colour Grayscale : 14-bit
    Colour Temperature : 3000–15000 K
    Viewing Angle (H/V) : 160° / 140°
    Optimum Viewing Distance : ≥ 1.8 m | ≥ 2.3 m | ≥ 2.8 m | ≥ 3.0 m | ≥ 3.8 m | ≥ 4.6 m | ≥ 6.0 m
    Contrast Ratio : 5000:1
    Scan Mode : 1/64 scan | 1/52 scan | 1/43 scan | 1/40 scan | 1/32 scan | 1/26 scan | 1/20 scan
    IP Rating : IP30
    Maximum Input Power : 550 W/m²
    Average Input Power : 275 W/m²
    Input Voltage : AC 100–240 V, 50/60 Hz
    Operating Temperature : -10°C to 40°C
    Operating Humidity : 10%–70% RH
    Storage Temperature : -25°C to 50°C
    Storage Humidity : 10%–65% RH
    Maintenance : Front
    Typical Lifetime : 100,000 hours
