LED Solutions – COB

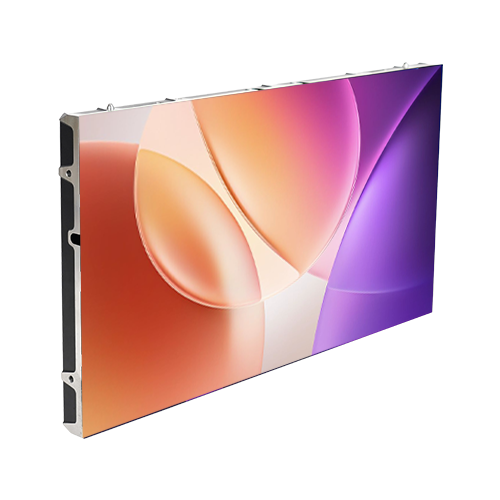

Indoor COB Flip-Chip LED Displays

Next-Generation Fine-Pitch Visuals

Indoor Chip-on-Board Flip-Chip LED technology delivers exceptional contrast, enhanced durability, and seamless visual performance, ranging from ultra-fine P0.6 to versatile P2.5 pixel pitches for high-end, close-up viewing environments.

   ●  Pixel pitches from P0.6 to P2.5
   ●  Sealed resin surface, impact and moisture resistant
   ●  Ink-black contrast with minimal glare
   ●  160° horizontal and vertical viewing angle
   ●  Fewer solder joints, lower dead-pixel rates
   ●  Low blue light, camera-friendly display

Enquire Now
Download Brochure

Technical Specifications

  • Impact & Moisture Resistant

    LED chips are sealed under a smooth resin surface with no exposed solder joints, resistant to dust, humidity, and oxidation.

    Ink-Black Contrast

    Resin fills the gaps between chips, eliminating the reflective grid for a true black background and higher contrast.

    160° Viewing Angle

    Uniform colour and brightness across a 160° viewing angle, with no colour shift or washout.

    Ultra-Fine Pixel Pitch

    Tighter chip packing enables pixel pitches from P0.6 to P1.56, ideal for control rooms and boardrooms.

    Fewer Failure Points

    Reduced solder joints mean lower dead-pixel rates and strong resistance to humidity-driven corrosion.

    Low Blue Light & Camera-Friendly

    A matte, diffused surface reduces blue light and avoids moiré patterns when filmed or photographed.

    Seamless Visual Performance

    No visible grid lines between chips, delivering a smooth, continuous image surface.

    Enhanced Durability

    Built to withstand the demands of high-end, close-up viewing environments.

    Precision Image Clarity

    Engineered for environments where fine detail and colour accuracy are critical, such as control rooms and boardrooms.

  • Product Technology : COB Flip-Chip LED
    Pixel Pitch : 0.625 / 0.78 / 0.9375 / 1.25 / 1.56 / 1.875 / 2.5 mm
    Module Size : 150 × 168.75 mm
    Cabinet Size : 602 × 337.5 mm / 600 × 675 mm
    Cabinet Aspect Ratio : 16:9 / 8:9
    Cabinet Depth : ≤ 40 mm
    Cabinet Weight : ≤ 4.6 kg
    Cabinet Material : Aluminium
    Modules per Cabinet : 8 / 16 modules
    Surface Finish : Matte
    Refresh Rate : 3840 Hz; 7680 Hz available on select models
    Brightness : 550–1,000 nits
    Viewing Angle (H/V) : ≥ 160° / ≥ 160°
    Contrast Ratio : ≥ 10,000:1 (typ.); 5,000:1 @ 10 lx
    Maximum Power : ≤ 610 W/m²
    Front / Rear Protection : Front IP54–IP65; rear IP31 (model dependent)
    Input Voltage : AC 100–230 V, 60 Hz
    Operating Temperature : −10°C to +40°C
    Storage Temperature : −20°C to +60°C
    Operating Humidity : 10%–90% RH
    Lifespan : 100,000 hours
    Control System : Nova
