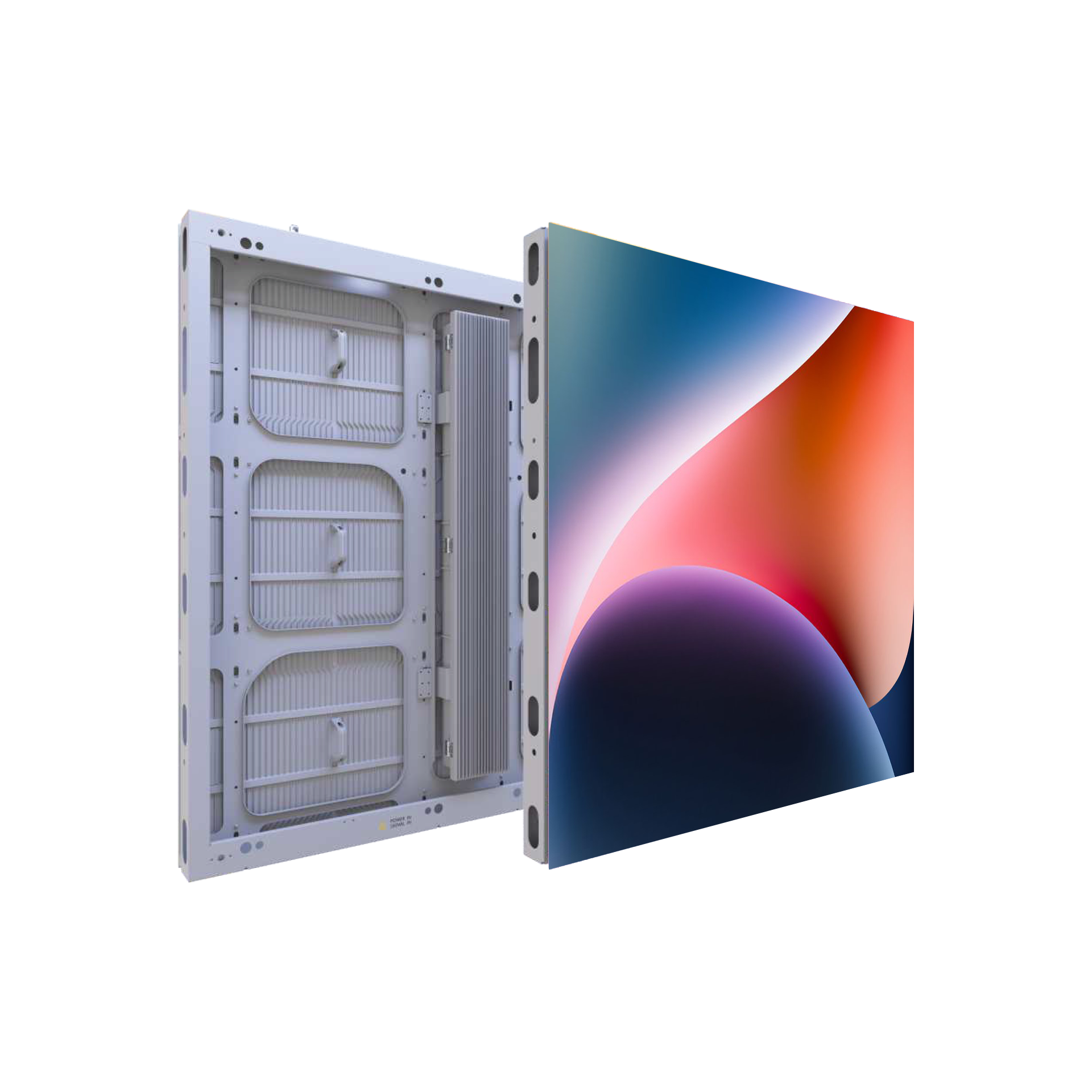

Precision Aluminium Construction

Engineered aluminium cabinets provide accurate alignment, efficient heat dissipation, structural stability, and easier handlin

Outdoor-Grade Protection

Selected configurations offer IP66 ingress protection and a 5VB flammability rating for demanding outdoor environments.

High-Visibility Brightness

Brightness options from approximately 5,000 to 10,000 nits maintain clear, vivid content in strong daylight.

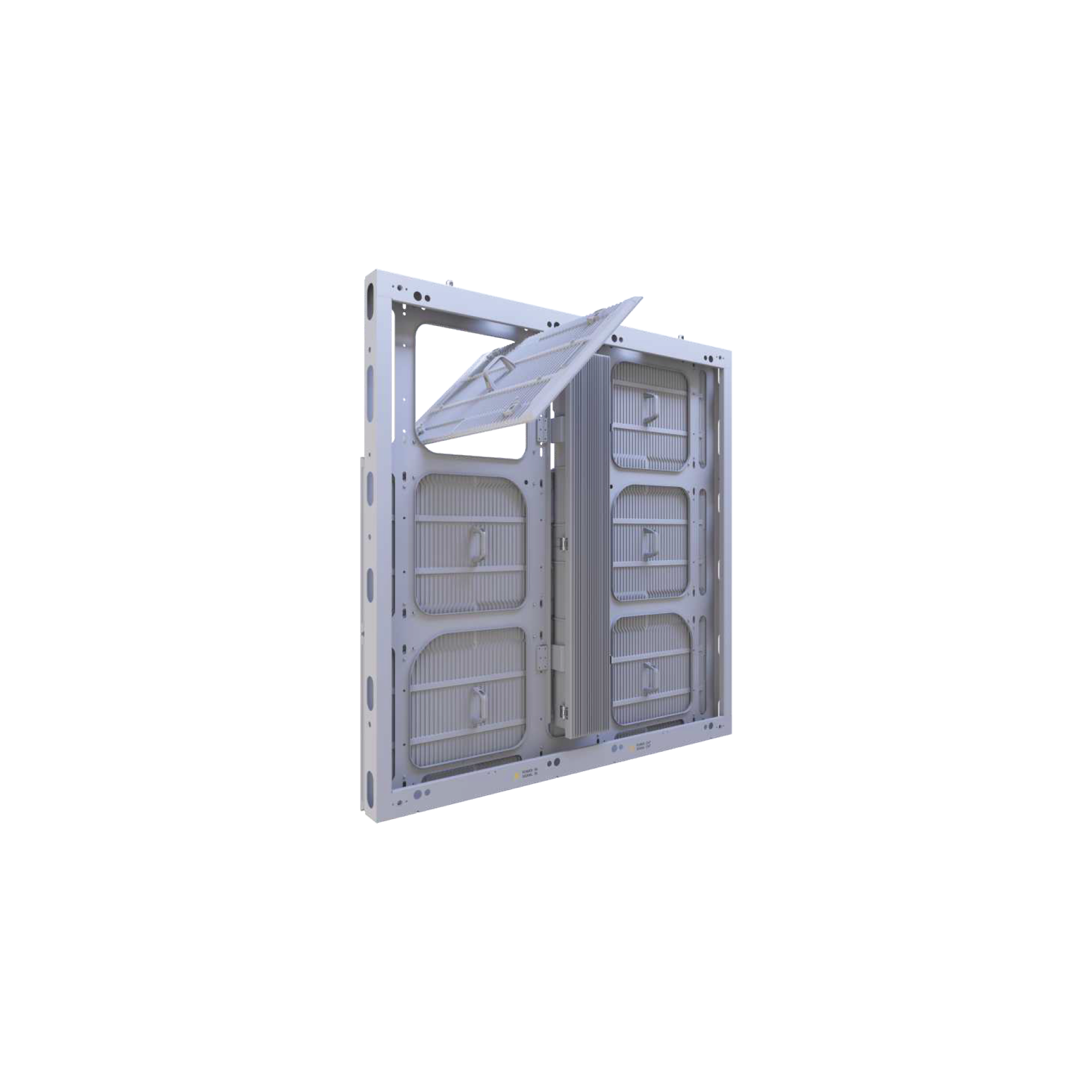

Flexible Service Access

Front and rear maintenance options provide efficient access to LED modules, power supplies, and control components.

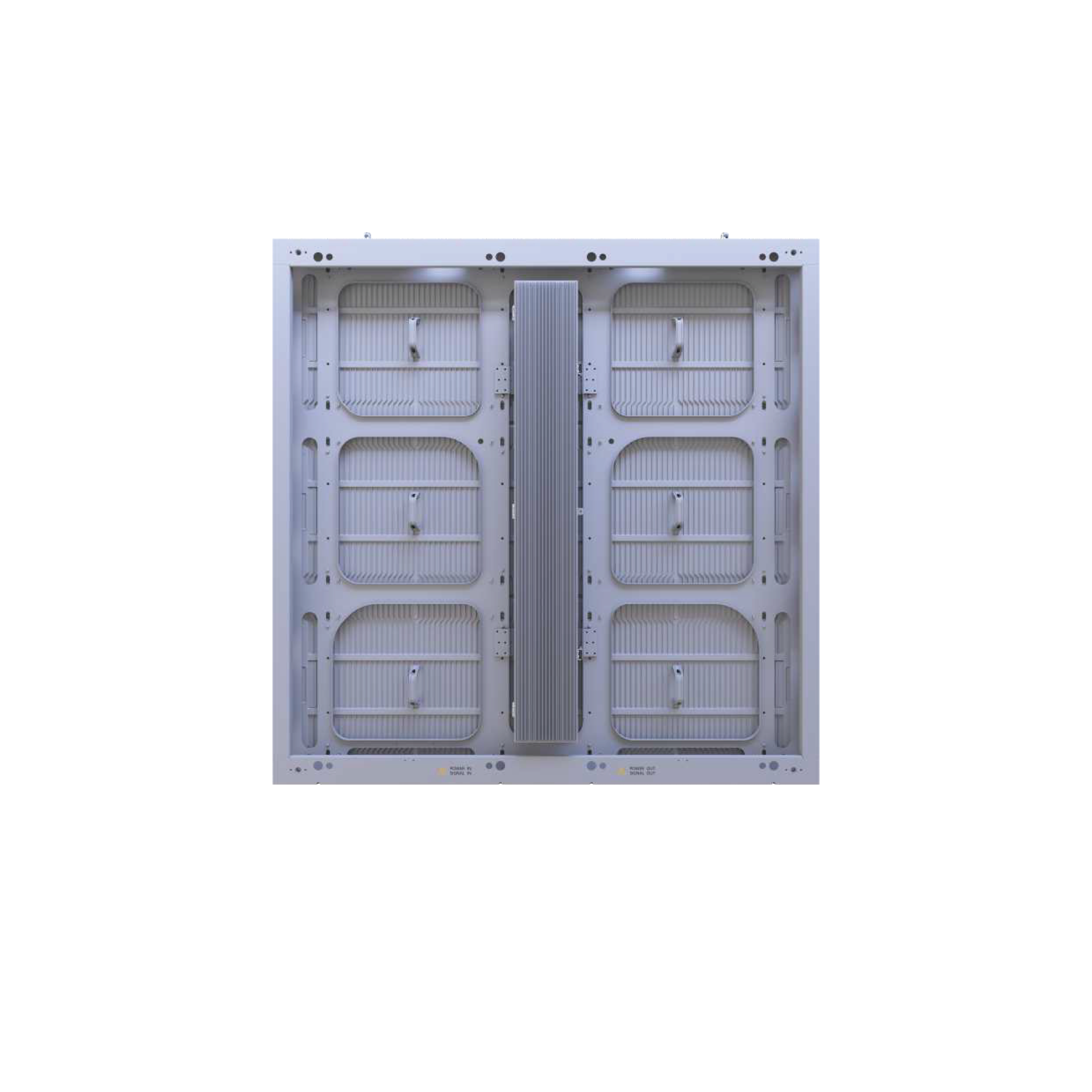

Optimised Thermal Management

Advanced aluminium heat-dissipation structures and optional fanless cooling support stable, low-noise performance.

Energy-Efficient Operation

Selected energy-saving configurations can reduce power consumption by up to 50% versus conventional designs.

High Refresh Rate

Delivers flicker-free visuals even in direct sunlight, ensuring smooth playback for advertising and information content.

All-Weather Reliability

Built to withstand rain, dust, heat, and humidity for stable year-round outdoor performance.

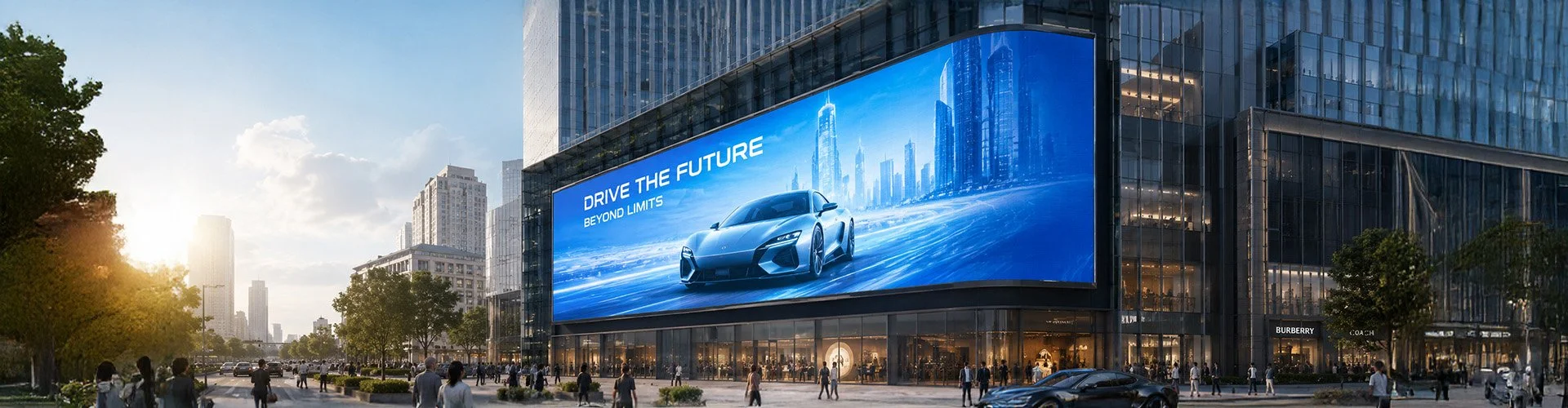

Large-Format Ready

Suited for high-impact advertising, public information, and large-scale outdoor installations.

Available Pixel Pitches : 3.9 / 4.4 / 5.71 / 6.67 / 8 / 10 mm
LED Technology : Outdoor SMD LED, configuration dependent
Pixel Density : Approximately 10,000–65,700 pixels/m², depending on pixel pitch
Brightness : Approximately 5,000–10,000 nits, model dependent
Refresh Rate : ≥3,840 Hz; higher-refresh configurations available
Grey Scale : Up to 14–16 bit, depending on driver and control configuration
Viewing Angle : Wide horizontal and vertical viewing angles; model dependent
Cabinet Material : Precision-engineered aluminium
Cabinet Size : Multiple modular cabinet formats available; project dependent
Ingress Protection : Up to IP66 on selected outdoor configurations
Flammability Rating : 5VB on selected configurations
Maintenance Access : Front, rear, or front-and-rear service options
Cooling System : Optimised aluminium heat dissipation; optional fanless design
Power Consumption : Varies by brightness, pixel pitch, cabinet design, and energy-saving configuration
Energy-Saving Option : Selected configurations can reduce power consumption by up to 50%
Input Power : AC 100–240 V, 50/60 Hz, configuration dependent
Operating Temperature : Typical outdoor operating range: approximately -20°C to +50°C
Operating Humidity : Typical range: 10%–90% RH, non-condensing
Installation Options : Fixed mounting, hanging, stacking, curved layouts, and corner configurations
Control-System Compatibility : Compatible with leading synchronous and asynchronous LED control platforms, subject to system configuration
Expected LED Lifetime : Up to 100,000 hours under recommended operating conditions
