KS212C

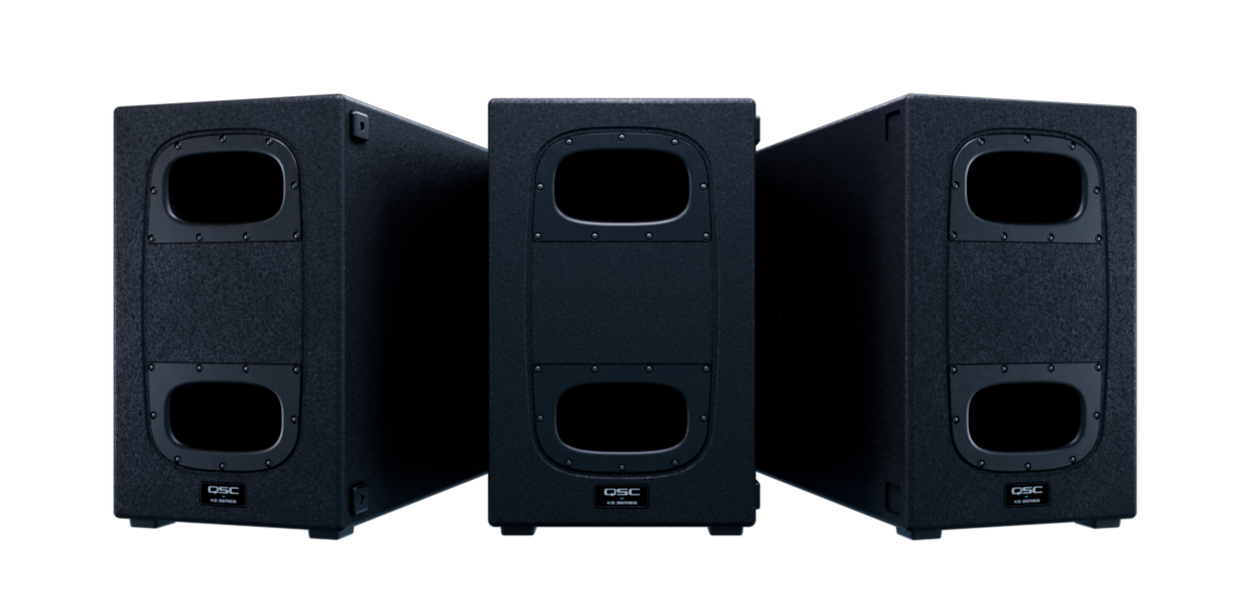

The KS212C subwoofer represents the world’s first-in-class single-box active cardioid subwoofer solution for highly portable entertainment and installation applications.

A breakthrough in innovation and design, the 3,600 Watt KS212C subwoofer uniquely provides all the benefits of cardioid deployment in a single, compact enclosure. “Keeping bass in its place” for mobile entertainers, AV production and rental professionals, as well as modestly-sized performance venues, the KS212C subwoofer is unparalleled in its ability to manage low frequencies on the stage, or any application where undesirable low frequency energy needs to be minimized.

Enquire Now

Key Features

  • 3600 Watt Class D power module

  • Dual 12-inch long excursion drivers; Dual 6th order band-pass design

  • 15 dB SPL attenuation front-to-rear

  • Two M20 threaded sockets (one on top, one on side) accept 35 mm speaker pole

  • Four low-noise, heavy-duty casters

  • HxWxD = 24.5-inch x 15.5-inch x 33.5-inch (622 x 394 x 851 mm)

  • Net Weight: 40.1 kg (88.5 lbs)

  • 6 Year Warranty when registered within 30 days of purchase

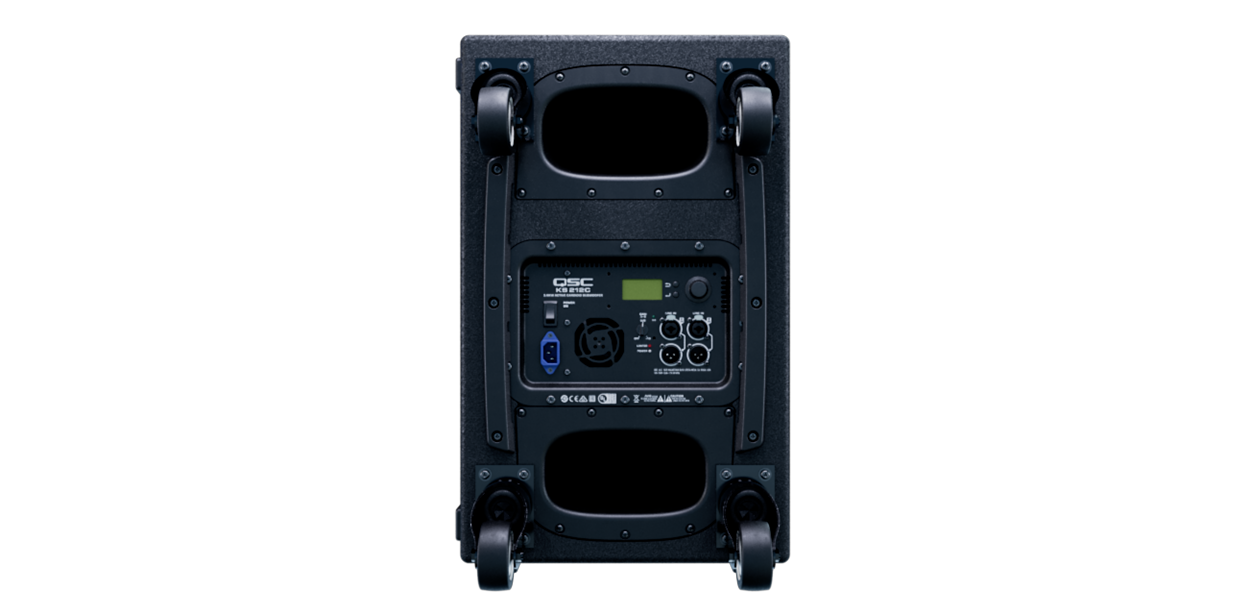

Powered by a 3,600 Watt Class D amplifier, processed with the latest DSP technology, and featuring dual 12-inch long excursion drivers each arranged in a 6th order band pass chamber, these components all combine seamlessly to produce a staggering 15 dB more output at the front of the cabinet than at the rear. Highly portable, the cabinet features comfortable, aluminum handles and four, rear-mounted casters. Two M20 sockets accept a 35 mm loudspeaker pole in either horizontal or vertical orientation.

Technical Specifications

  • Model: KS212C

    Configuration: Dual 6th-order bandpass cardioid subwoofer

    LF Transducer: 2 × 305 mm (12 in), cone

    Frequency Response (-6 dB): 44 Hz - 104 Hz

    Frequency Range (-10 dB): 39 Hz - 118 Hz

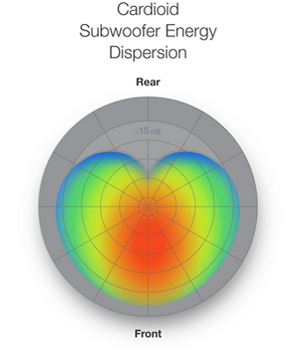

    Nominal Coverage Angle: 180° Cardioid (15 dB rear rejection @ 70 Hz)

    Maximum Rated SPL¹: 132 dB @ 1 m, peak

    Amplifier: Class D, 2 × 1800 W (peak)

    Cooling: Low-noise, variable speed fan

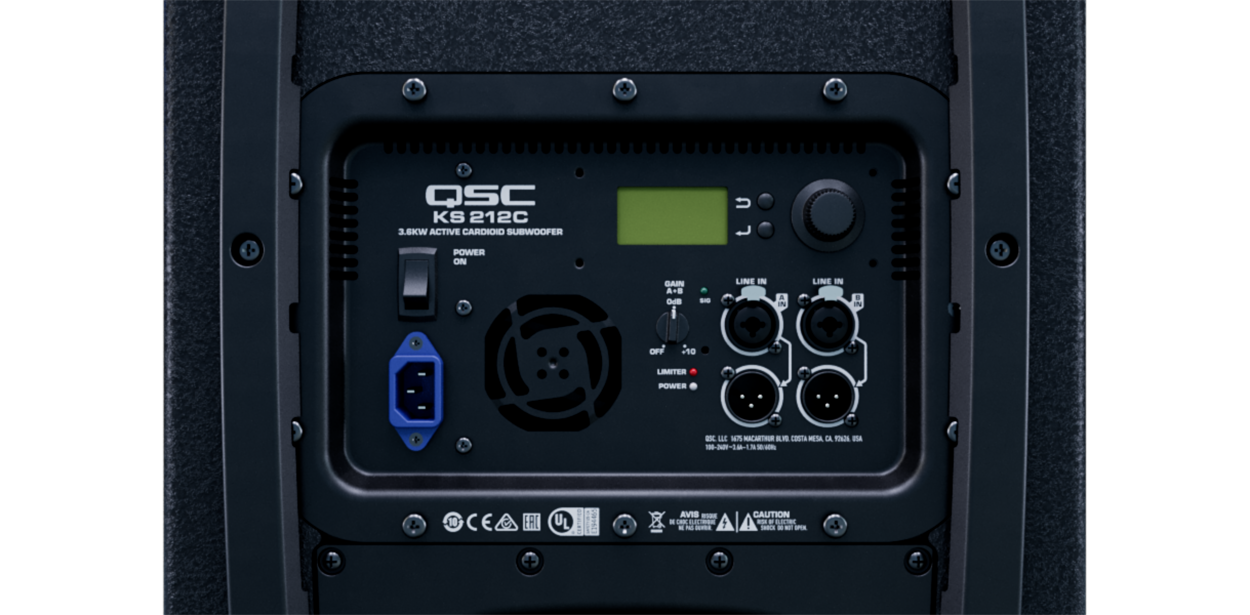

    Controls: Power, Gain, Rotary encoder, 2 × selection buttons

    Indicators: 2 × Power LED (front and rear), Input Signal LED, Limiter active LED

    Connectors: 2 × locking XLR/F ¼-inch combo, 2 × XLR/M (Loop-thru Output), 1 × locking IEC power connector

    AC Power Input: Universal power supply 100–240 VAC, 50–60 Hz

    AC Power Consumption: 1/8th power

    Enclosure Details:

    Enclosure: 15 mm birch plywood

    Color: Black (RAL 9011)

    Grille: Internal woofer cover

    Speaker Dimensions (H×W×D): 622 × 394 × 851 mm / 24.5 × 15.5 × 33.5 in

    Carton Dimensions (H×W×D): 970 × 500 × 670 mm / 38.2 × 19.7 × 26.4 in

    Net Weight: 40.1 kg / 88.5 lb

    Shipping Weight: 50 kg / 110.3 lb

    Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B

    Optional Accessories: KS212C CVR Transport Cover, KS-LOC Lock-Out Cover, SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole
