KS112

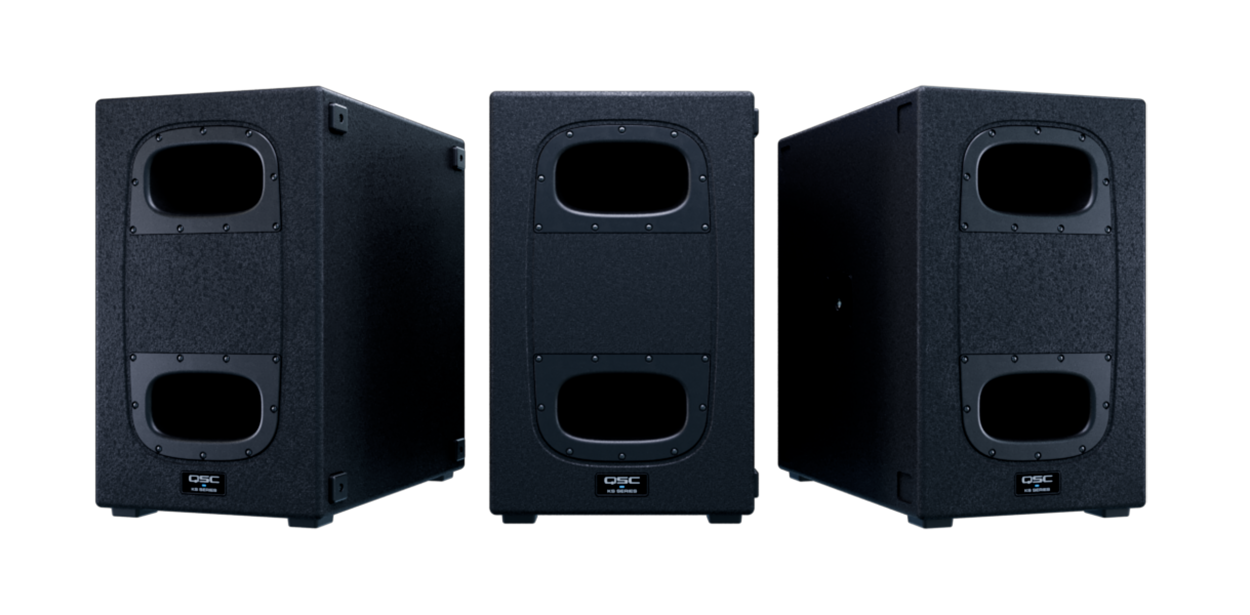

The KS112 is an ultra-compact active subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 Watt peak power Class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).

Enquire Now

Key Features

  • High Output in an ultra-compact form factor

  • 2000 Watt Class D amplifier module

  • 12-inch, long-excursion driver; 6th order bandpass design

  • Intrinsic Correction™tuning and loudspeaker management

  • Refined, professional appearance looks great in any application

  • Rugged painted wood enclosure for long life and lasting durability

  • Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings

  • Optional KS-LOC security cover prevents unauthorized tampering of controls

  • 6 Year Warranty when registered within 30 days of purchase

Technical Specifications

  • Model: KS112

    Configuration: 6th-Order Bandpass Subwoofer

    LF Transducer: 305 mm (12 in), Cone

    Frequency Response (-6 dB): 41 Hz - 108 Hz

    Frequency Range (-10 dB): 38 Hz - 121 Hz

    Maximum Rated SPL¹: 128 dB @ 1 m (peak)

    Amplifier: Class D, 2000 W (peak)

    Cooling: Low-noise, variable speed fan

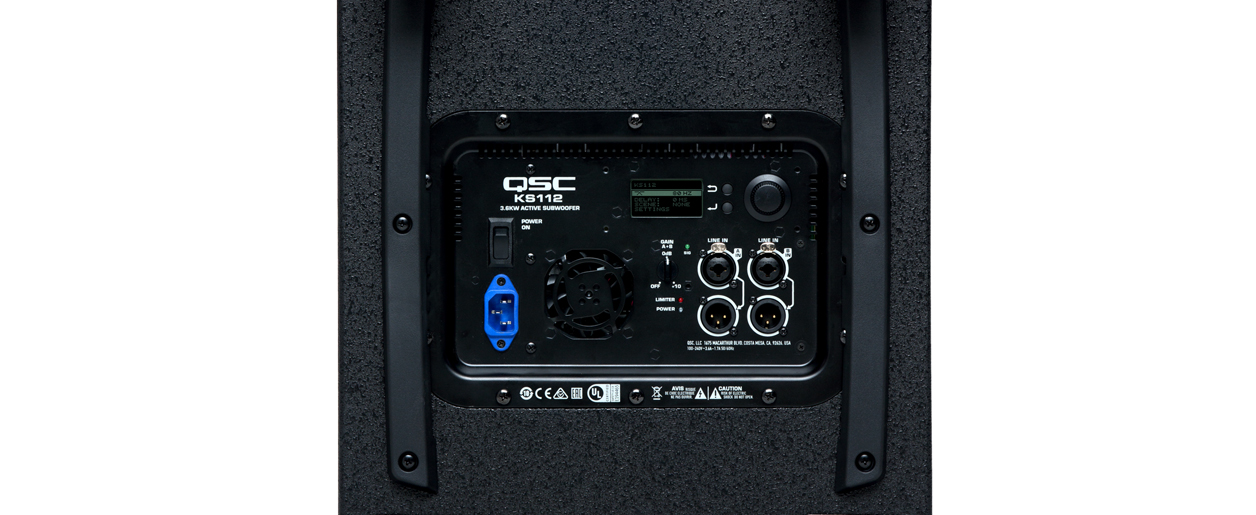

    Controls: Power On/Off, Gain Control, Rotary encoder, 2 × selection buttons

    Indicators: 2 × Power LED (front and rear), Input Signal LED, Limiter Active LED

    Connectors: 2 × locking XLR/F ¼-inch combo, 2 × XLR/M (Loop-thru Output), 1 × locking IEC power connector

    AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz

    AC Power Consumption: 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A

    Enclosure Details:

    Enclosure: 15 mm Birch Plywood

    Color: Black (RAL 9011)

    Grille: Internal woofer cover

    Speaker Dimensions (H×W×D): 622 × 394 × 616 mm / 24.5 × 15.5 × 24.25 in

    Carton Dimensions (H×W×D): 740 × 500 × 673 mm / 29 × 19.7 × 26.5 in

    Net Weight: 28.4 kg / 62.6 lb

    Shipping Weight: 35 kg / 77.2 lb

    Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B

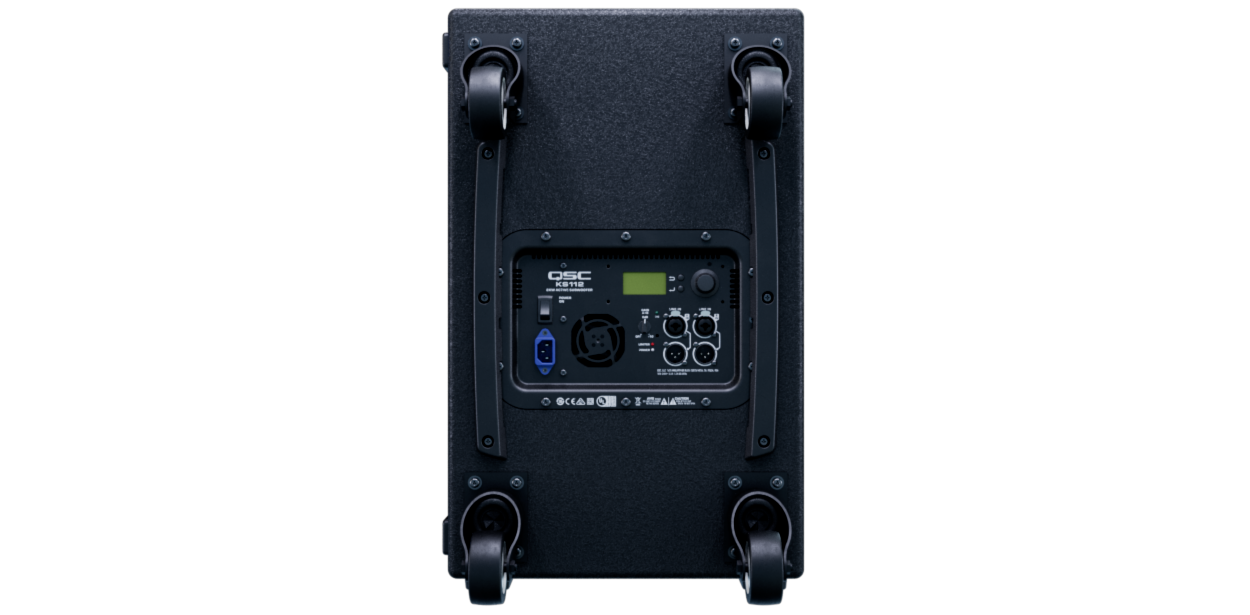

    Included Accessories: 4 × Low-Noise, Heavy Duty Casters

    Optional Accessories: KS112 CVR Transport Cover, KS-LOC Lock-Out Cover, SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole
