KC12 “K Column”

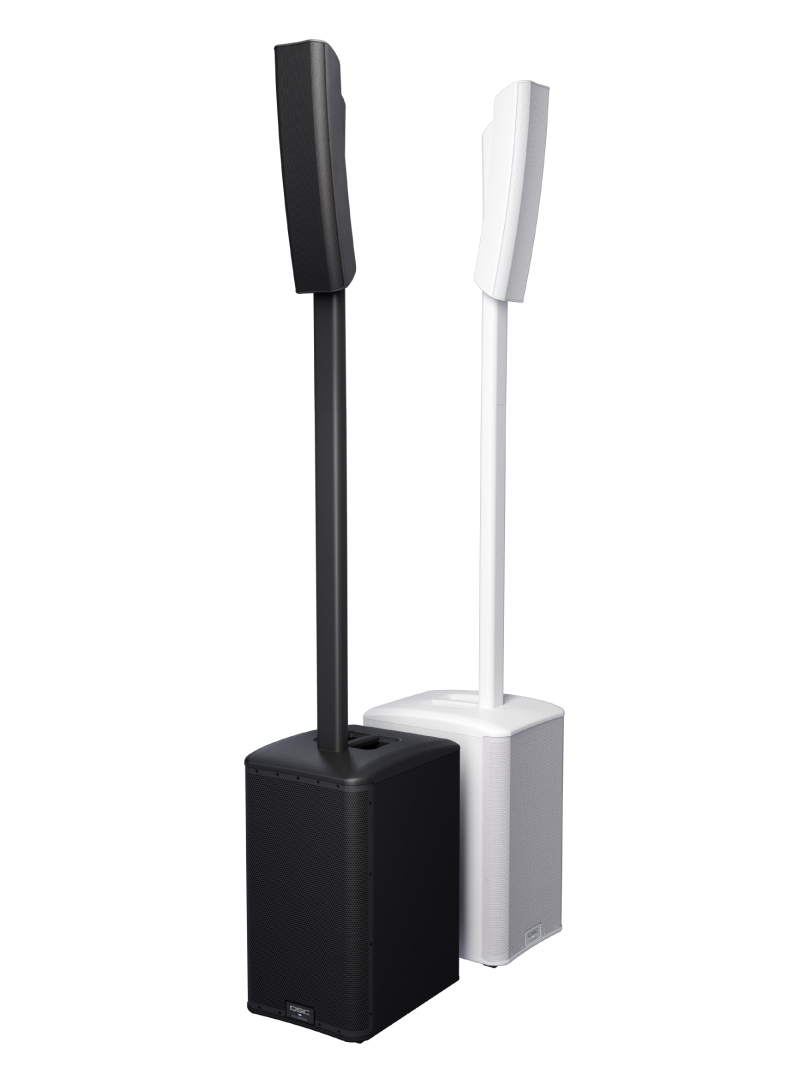

Building on the legacy of the K Family, the KC12 “K Column” is a 3-way, 3000-watt loudspeaker system that combines a column aesthetic with the acoustic performance of traditional “box” systems. Easy to transport, deploy and use, it’s ideal for DJs and mobile entertainers, musicians and bands, and event production professionals.
3-Way System
3000 Watts
Fast Setup
Bluetooth® Audio
Loudspeaker Control App
6-Year Warranty
Unmatched Sound Quality
Unlike traditional column loudspeakers which use a series of small distortion-prone drivers incapable of mid- and high-frequency bandwidth, the KC12’s dual 4-inch drivers and compression driver with the QSC LEAF™ (Length-Equalized Acoustic Flare) Waveguide deliver an astounding 145° horizontal coverage area and 35° audience-directed vertical average. The result is clean and natural sound at all output levels.
Key Features
Core Performance
3000-watt class-D power
One 12-inch long-excursion subwoofer, two 4-inch midrange drivers and a 1-inch high-frequency compression driver
132 dB @ 1 m (peak SPL)
Wide 145° horizontal by 35° vertical coverage for uniform sound across large audiences
Advanced Control and DSP
Multi-Function Digital Display: system parameters including global parametric EQ, delay (up to 200 ms) and reverb
Bluetooth® with True Wireless Stereo (TWS)
Presets and Scenes: library of factory presets for specific applications (DJs, Live Music, Speech) and custom Scene save/recall
Connectivity & Versatility
3-channel internal mixer
Charge and Sync: USB-C port for charging mobile devices or performing firmware updates

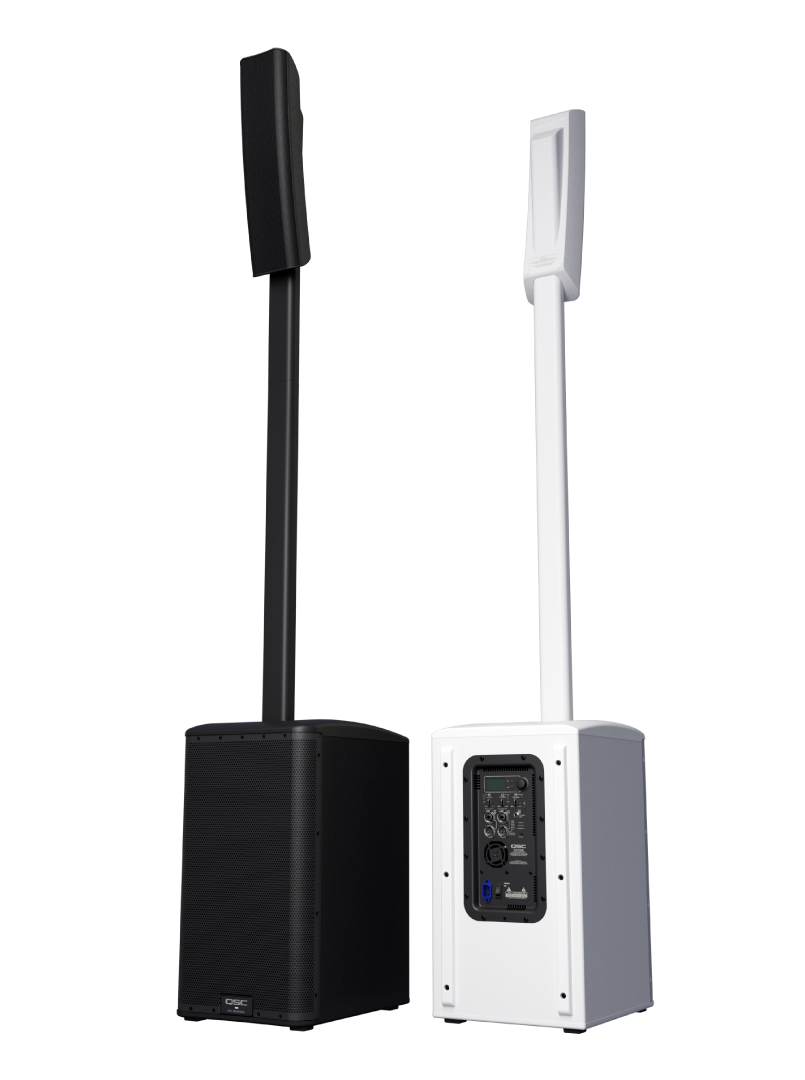

Flexible Deployment: Tall (with the column pole) or Short (top unit directly on the sub) deployment for floor, stage or riser use
Build & Protection
Premium Materials: impact-resistant ABS for the top and 12 mm birch plywood for the subwoofer
Portable Design: 60.3 lbs (27.3 kg) includes a dedicated transport tote for the column and pole sections
6-Year Warranty (with product registration within 30 days of purchase)
Technical Specifications
-
Model: KC12
Configuration: Active 3-Way Column Loudspeaker System
LF Transducer: 305 mm (12-inch), cone
MF Transducer: 2 × 102 mm (4-inch), cone
HF Transducer: 25.4 mm (1-inch), compression driver
Frequency Response (-6 dB): 45 Hz - 18.5 kHz
Frequency Range (-10 dB): 40 Hz - 20 kHz
Nominal Coverage Angle: 145° H × 35° V
Maximum Rated SPL¹ (peak): 132 dB @ 1 m
Amplification (peak): Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)
Cooling: Low noise, variable speed fan

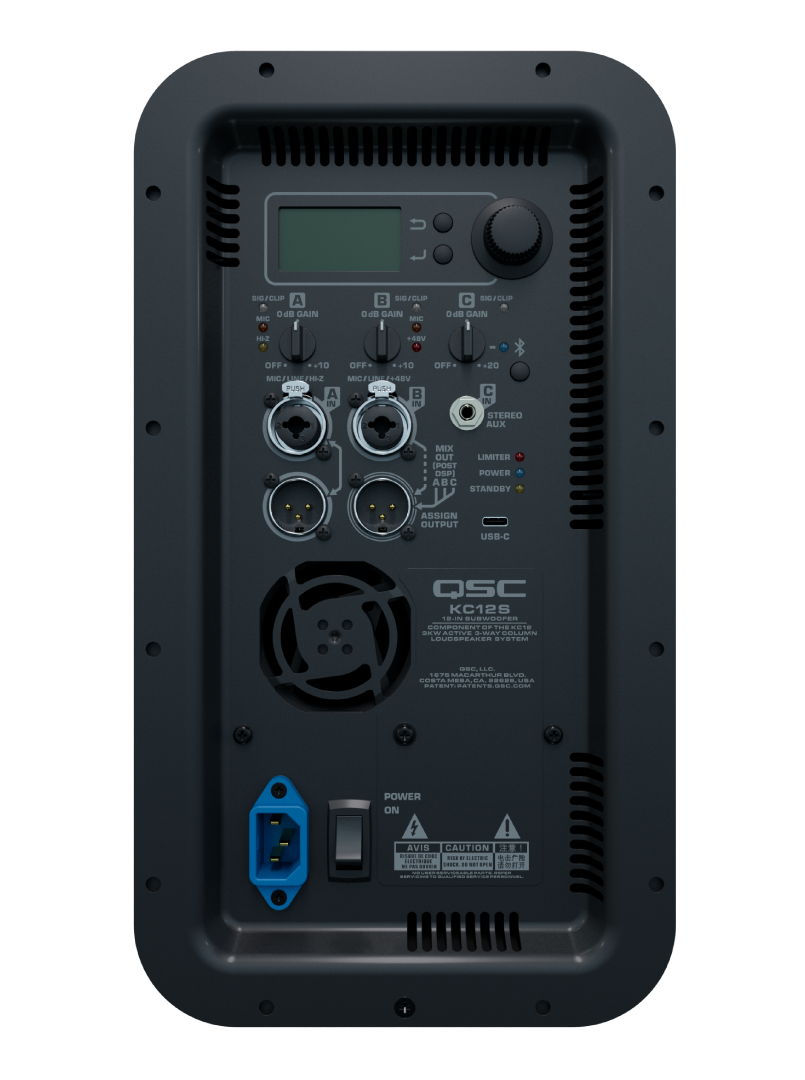

Controls: 1 × Rotary encoder and 2 × Push buttons, 3 × Rotary level potentiometers, 1 × AC power switch
Indicators: Monochrome LCD Display 45 × 25.4 mm (1.75 × 1 inch), 2 × Power LEDs (blue), Subwoofer front and rear, 1 × Standby LED (yellow), 1 × Limiter LED (red), 3 × Input Signal/Clip LEDs (Signal: green / Clipping: red), Input A: Mic/Line with assignable Hi-Z selected LED, Input B: Mic/Line with assignable +48 V selected LED, Input C: Bluetooth selected LED
Connectors: 2 × locking XLR/F ¼ inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V), 2 × XLR/M (1 × Loop-thru / 1 × Assignable Mix Output Post-DSP), 1 × 3.5 mm TRS (Stereo Input), 1 × USB-C (Output: 5V/3A), 1 × locking IEC power connector
AC Power Input: Universal power supply, 100–240 VAC, 50/60 Hz
AC Power Consumption²: 100–240 VAC ~ 3.7–1.8 A
System Components: KC12T 145° Dual 4-inch Column System Loudspeaker, KC-SP32 32-inch Column System Pole, KC12S 3kW Active 12-inch Column System Subwoofer
Enclosure Materials: Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum
Color: Black (RAL 9011), White (RAL 9010)
Grille: Powder-coated steel with internal cloth lining (KC12T: 21 Gauge / KC12S: 18 Gauge)
System Height: Tall Deployment: 2270 mm / 89.4 in (with KC-SP32); Short Deployment: 1463 mm / 57.6 in (without KC-SP32)
Dimensions (H×W×D):
KC12T: 890 × 141 × 158 mm / 35 × 5.6 × 6.2 in
KC-SP32: 881 × 74 × 46 mm / 34.7 × 3 × 1.8 in
KC12S: 655 × 357 × 455 mm / 25.8 × 14 × 18 inNet Weight:
Tall Deployment: 27.3 kg / 60.3 lb (with KC-SP32)
KC12T: 4.0 kg / 8.9 lb
KC-SP32: 1.3 kg / 2.9 lb
KC12S: 22.0 kg / 48.5 lbSupplied Accessory: KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
California Prop 65: Warning Information
Optional Accessories: KC12S-CVR, KC-SP14-BK, KC-SP14-WH
-
