Compact power.
Embodying the high performance, superior quality and lasting reliability you expect from QSC, the CP8 offers unparalleled value in an ultra-compact form factor. Incredibly compact and lightweight, the CP8 is easy to lift, carry and transport without sacrificing professional PA performance.
Lightweight & Portable
Quick Access to Preset Contours
1000 W Peak Power Class-D Amplifier
Advanced DSP with Intrinsic Correction™
Directivity Matched Transition (DMT)
Key Features
Core Performance
1000-watt peak power
8-inch woofer
1.4-inch HF compression driver
124 dB @ 1 m (peak SPL)
Advanced Audio Technology
Intrinsic Correction™
DMT™ (Directivity Matched Transition)
One-touch contours: Default, Dance, Floor Monitor, Speech
Versatile Connectivity
3-Channel built-in mixer
Mix output: XLR male connector to easily link multiple speakers or send the mixed signal to another system
Design & Portability
Ultra-compact & lightweight: weighs only 21 lbs (9.5 kg)
Multi-purpose enclosure: rugged polypropylene cabinet features a 55° wedge angle

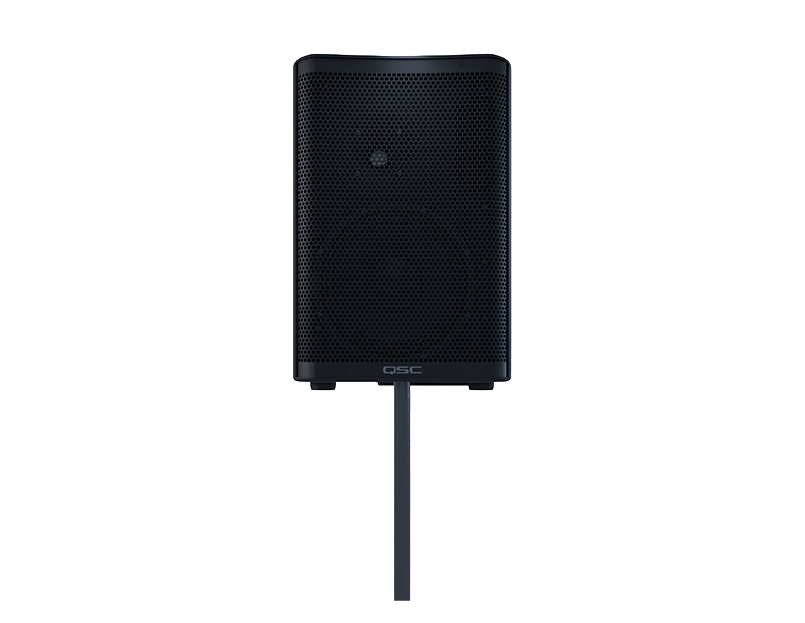

Mounting options: 35 mm pole socket for stand mounting and M10 threaded inserts for permanent installations
Reliability
Professional build: 18-gauge powder-coated steel grille and a stylish yet durable exterior
6-Year Warranty (with product registration within 30 days of purchase)
Easy to use.
Technical Specifications
-
Model : CP8
Configuration : Two-way active loudspeaker
LF Transducer : 203 mm (8 in), cone
HF Transducer : 35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB) : 56 - 20 kHz
Frequency Range (-10 dB) : 53 - 20 kHz
Nominal Coverage Angle : 90° Axisymmetric
Maximum Rated SPL : 124 dB
Amplifier : Class D | Peak: 800 W (LF), 200 W (HF)
Controls : Power | 2 × Gain | Mic Boost Push Switch | 6-way Contour Selection SwitchIndicators : Power LED | 2 × Input Signal LED | Input B MIC selected LED | Limiter active LED

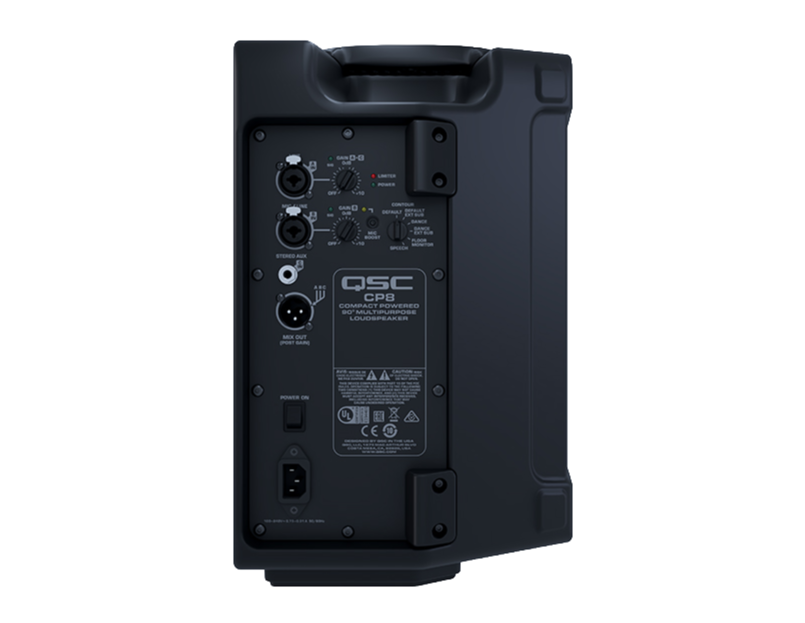

Connectors : 2 × locking XLR/F / ¼″ combo (Line Input and Mic/Line input) | 1 × 3.5 mm TRS (Stereo Input) | 1 × XLR/M (Mix Output) | 1 × IEC power connector
AC Power Input : Universal power supply 100–240 VAC, 50–60 Hz
AC Power Consumption (1/8th Power) : 100 VAC, 0.75A - 240VAC 0.31A
Enclosure Material : Polypropylene
Attachment Points : M8 threaded insert
Color : Black (RAL 9011)
Grille : 18 Gauge powder-coated steel
Speaker Dimensions (H×W×D) : 411 × 273 × 256 mm / 16.2 × 10.7 × 10.1 in
Carton Dimensions (H×W×D) : 360 × 360 × 496 mm / 14.2 × 14.2 × 19.5 in
Net Weight : 9.5 kg / 21.0 lb
Shipping Weight : 11.5 kg / 25.4 lb
Regulatory : EMC, UL, CB

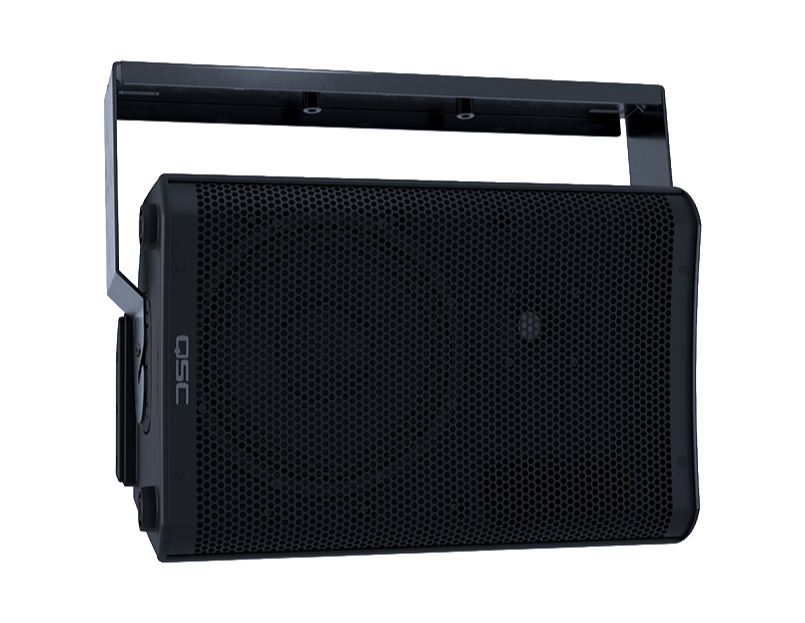

Optional Accessories : CP8 Tote, CP8 Outdoor Cover, CP8 Yoke -
