Compact power.
Embodying the high performance, superior quality and lasting reliability you expect from QSC, the CP12 offers unparalleled value in an ultra-compact form factor. Designed for versatility, CP Series provides the perfect audio solution for a broad range of both portable and installed applications. Incredibly compact and lightweight, the CP12 is easy to lift, carry and transport without sacrificing professional PA performance.
Lightweight & Portable
Quick Access to Preset Contours
1000 W Peak Power Class-D Amplifier
Advanced DSP with Intrinsic Correction™
Directivity Matched Transition (DMT)
Key Features
Core Performance
1000-watt peak power
12-inch woofer
1.4-inch HF compression driver
126 dB @ 1 m (peak SPL)
Advanced Audio Technology
Intrinsic Correction™
DMT™ (Directivity Matched Transition)
One-touch contours: Default, Dance, Floor Monitor, Speech
Versatile Connectivity
3-Channel built-in mixer
Mix output: XLR male connector to easily link multiple speakers or send the mixed signal to another system
Design & Portability
Ultra-compact & lightweight: weighs only 30 lbs (13.7 kg)
Multi-purpose enclosure: rugged polypropylene cabinet features a 55° wedge angle

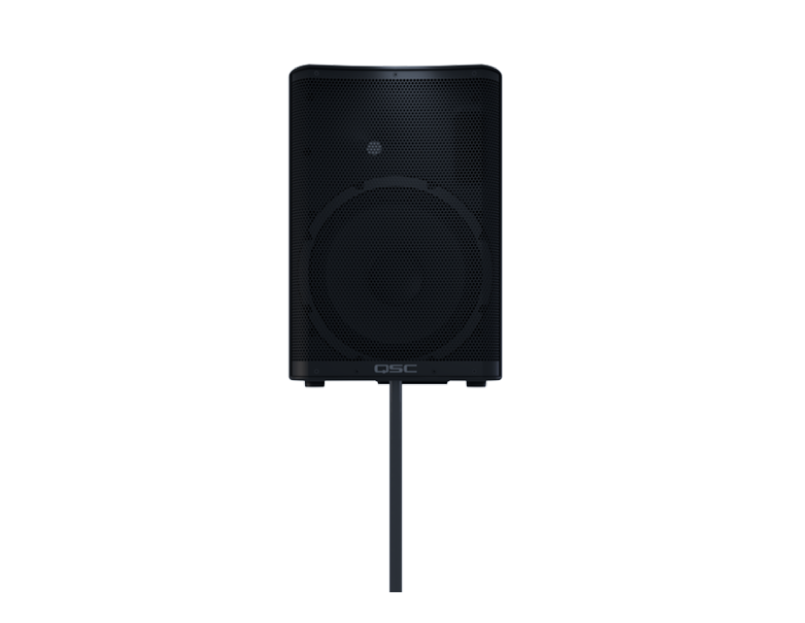

Mounting options: 35 mm pole socket for stand mounting and M10 threaded inserts for permanent installations
Reliability
Professional build: 18-gauge powder-coated steel grille and a stylish yet durable exterior
6-Year Warranty (with product registration within 30 days of purchase)
Easy to use.
Technical Specifications
-
Model : CP12
Configuration : Two-way active loudspeaker
LF Transducer : 305 mm (12 in), cone
HF Transducer : 35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB) : 49 - 20 kHz
Frequency Range (-10 dB) : 47 - 20 kHz
Nominal Coverage Angle : 75° Axisymmetric
Maximum Rated SPL : 126 dB
Amplifier : Class D | Peak: 800 W (LF), 200 W (HF)
Controls : Power | 2 × Gain | Mic Boost Push Switch | 6-way Contour Selection SwitchIndicators : Power LED | 2 × Input Signal LED | Input B MIC selected LED | Limiter active LED
Connectors : 2 × locking XLR/F ¼″ combo (Line Input and Mic/Line input) | 1 × 3.5 mm TRS (Stereo Input) | 1 × XLR/M (Mix Output) | 1 × IEC power connector
AC Power Input : Universal power supply 100–240 VAC, 50–60 Hz
AC Power Consumption (1/8th Power) : 100 VAC, 0.75A - 240VAC 0.31A
Enclosure Material : Polypropylene
Attachment Points : M8 threaded insert
Color : Black (RAL 9011)
Grille : 18 Gauge powder-coated steel
Speaker Dimensions (H×W×D) : 516 × 350 × 323 mm / 20.3 × 13.8 × 12.7 in
Carton Dimensions (H×W×D) : 430 × 430 × 604 mm / 17 × 17 × 23.8 in
Net Weight : 13.7 kg / 30.3 lb
Shipping Weight : 16.5 kg / 36.4 lb
Regulatory : EMC, UL, CB
Optional Accessories : CP12 Tote, CP12 Outdoor Cover, CP12 Yoke -
