No boundaries.

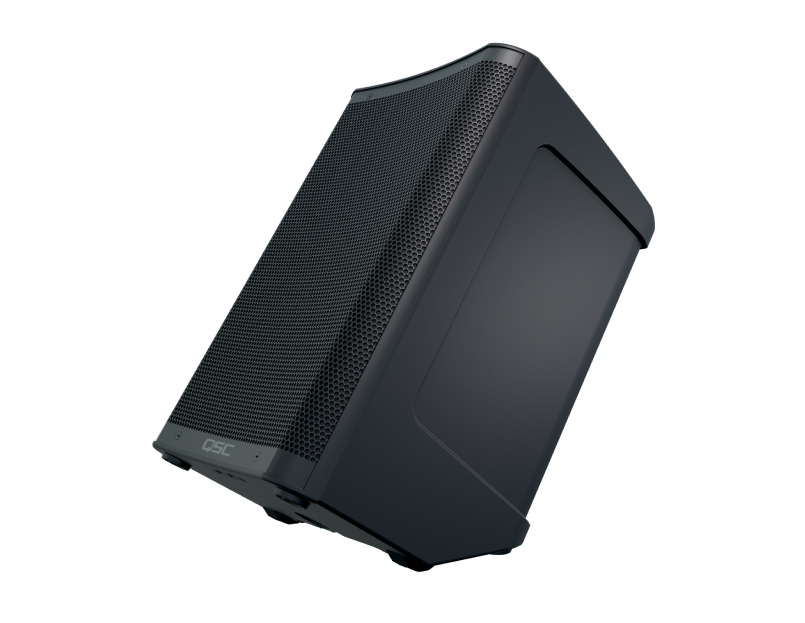

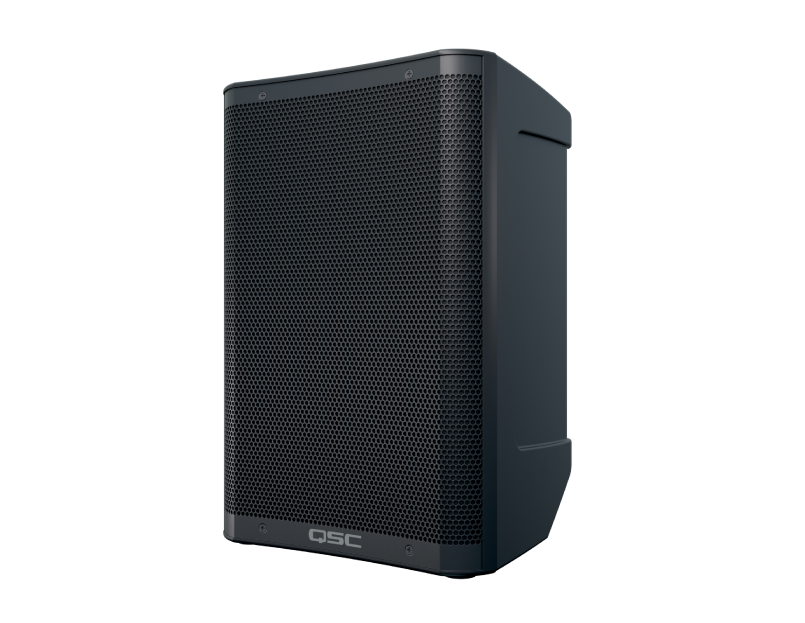

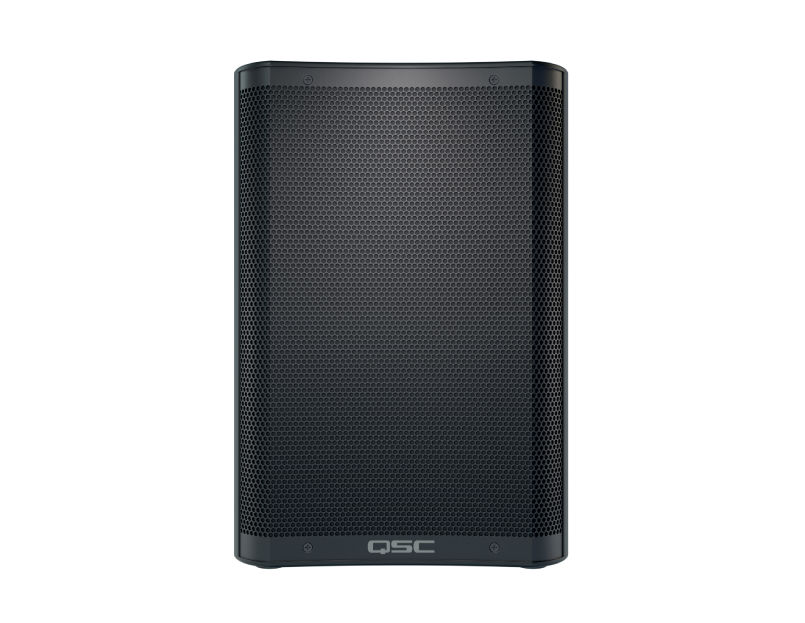

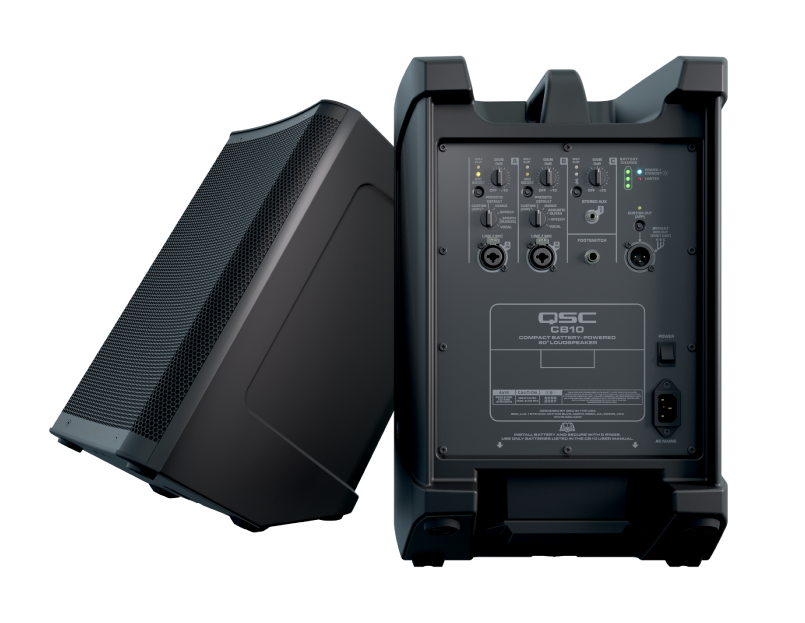

The CB10 is a compact,
battery-powered loudspeaker system offering unrivaled audio performance and versatility. It features a 10-inch LF driver, 1-inch compression driver and 3-channel mixer for microphones, instruments and Bluetooth® streaming. Ideal for DJs, event professionals and musicians, it offers easy plug-and-play operation and customization via the QSC Loudspeaker Control app.
Battery Powered
Bluetooth® Audio
Lightweight & Portable
10-Inch Woofer;
1-Inch Compression Driver
QSC Loudspeaker
Control App
6-Year Warranty *
(1 year on battery)
*With product registration within 30 days
of purchase.
Key Features
Powerful, Compact 2-way System
440 watts of peak power (Class D)
10-inch woofer
1-inch HF compression driver
127 dB @ 1 m (peak SPL)
Integrated 3-Channel Mixer
Wireless Remote Control
Two combo XLR inputs with independent Factory Presets
QSC Loudspeaker Control App (iOS & Android) for convenient system remote control
Simple to Use

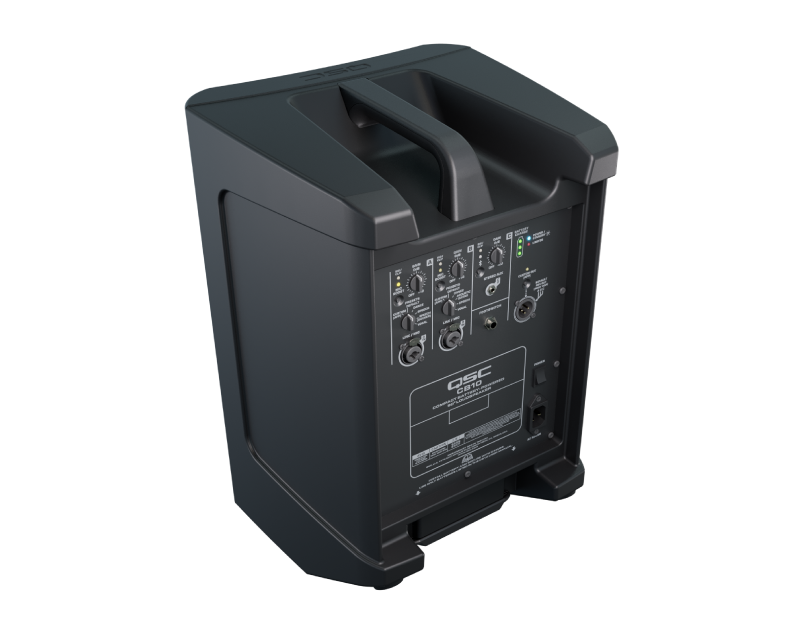

Large carry handle on the enclosure top
Lightweight and portable
30 degrees tilt back (floor deployment)
Integrated pole cup (stand deployment)
Room Delay
200 ms (max) of room delay
Bluetooth® 5.1 Audio
For control and audio with True Wireless Stereo (TWS) Bluetooth
Battery and AC Power
Up to 12 hours of battery power (rechargeable in approx. 4 hrs)
User-installable/removable battery pack
AC power for unlimited steady operation
Technical Specifications
-
Model : CB10
Configuration : Two-way Rechargeable Loudspeaker System
LF Transducer : 254 mm (10-inch), cone
HF Transducer : 25.4 mm (1-inch), compression driver
Frequency Response (-6 dB) : 51 Hz - 18 kHz
Frequency Range (-10 dB) : 47 Hz - 20 kHz
Nominal Coverage Angle : 90° Axisymmetric
Maximum Rated SPL : 127 dB @ 1 m
Amplification (peak) : Class D, 440 W

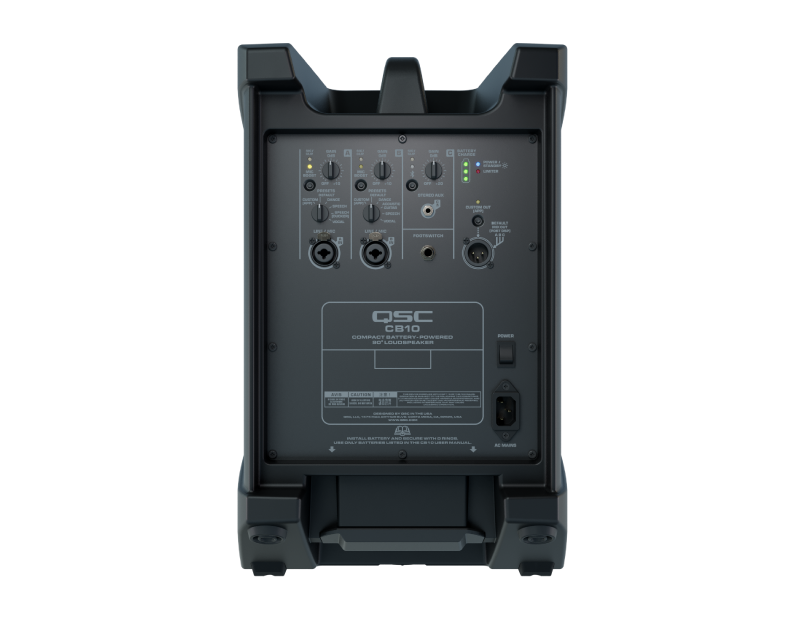

Cooling : Convection coolingBackpanel Controls : 3 × Rotary level potentiometers (Gain) | 2 × MIC Boost Push-Switch | 2 × 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls) | 1 × Bluetooth Switch | 1 × Output Select Switch | 1 × AC Power Switch
Loudspeaker Control App Functions : Input Channels: Gain Control, Presets (Channels A and B), EQ | Reverb (Channels A and B) | Ducker (Channel A) | Contour Selection | Custom Output Routing | Footswitch Functionality: Channel Mute, FX Mute, or Channel Boost | Bluetooth Audio Configuration | Loudspeaker Firmware Updates
Backpanel Indicators : 3 × Input Signal/Clip LEDs | 2 × MIC selected LEDs | 3 × Battery Charge LEDs | 1 × Limiter Active LED | 1 × Bluetooth LED | 1 × Output Select LED | 1 × Power/Standby LED
Connectors : 2 × locking XLR/F / ¼ inch combo (Line Input and Mic/Line Input) | 1 × 3.5 mm TRS (Stereo Input) | 1 × 6.3 mm TS (Footswitch) | 1 × XLR/M (Mix Output) | 1 × locking IEC Power Connector
DC Power (Battery) : Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module (1 × unit included with CB10) | Battery life: up to 12 hours / Battery charging time: approx. 4 hours
AC Power Input : Universal Power Supply: 100-240 VAC, 50/60 Hz
AC Power Consumption : 100 VAC, 1A / 120 VAC, 0.9 / 240 VAC, 0.5A
Enclosure Material : Polypropylene
Color : Black (RAL 9011)
Grille : Powder-coated steel with internal lining (18 Gauge)
Loudspeaker Dimensions (H×W×D) : 465 × 313 × 287 mm / 18.3 × 12.3 × 11.3 in
Carton Dimensions (H×W×D) : 559 × 406 × 381 mm / 22 × 16 × 15 in
Net Weight : 12.2 kg / 26.9 lb
Shipping Weight : 14.5 kg / 32 lb
Battery Chemistry : Lithium Nickel Manganese Cobalt Oxide
Regulatory : CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A
California Prop 65 : ⚠️ Warning Information
Optional Accessories : CB10-CVR: Weatherized Cover for the CB10 Loudspeaker System | CB10-BATTERY: Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module -
