AD-S.SUB
6.5-inch Dual Voice Coil, Small Format Surface Subwoofer
Features & Benefits
Dual voice-coil for improved thermal dissipation and higher output
Low saturation and low-loss 70/100 V transformers in mono mode
Low-Z mono or stereo configurable
4x built-in high-pass filtered outputs
Locking 4-pole Euroblock connectors
Reversible rear panel cover with cable tie anchors
Reversible V-wall mount hardware
Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform

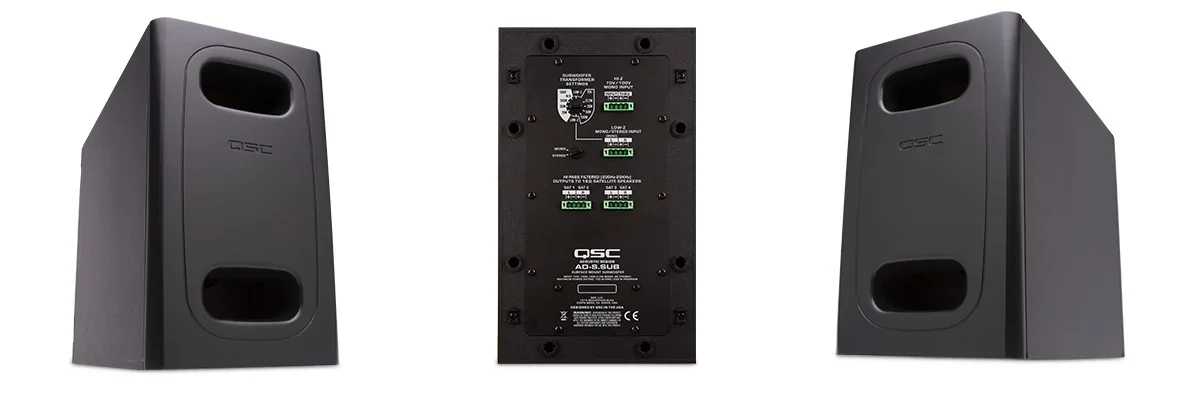

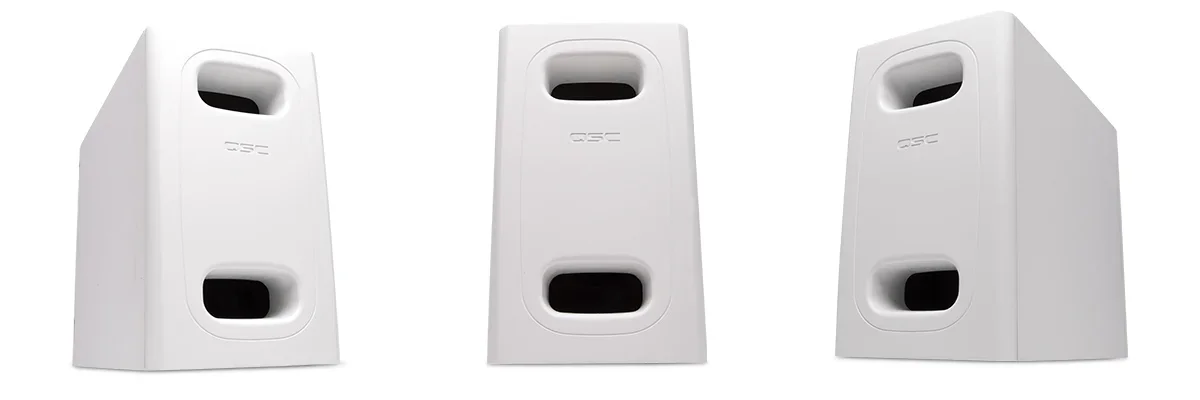

Available in black (RAL 9011) or white (RAL 9010)
Technical Specifications
| Specifications | AD-S.SUB |
|---|---|
| LF transducer | 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer |
| HF transducer | N/A |
| Effective frequency range | 45 Hz – 150 Hz |
| Rated noise power / voltage | 100 W / 20 V (rms) |
| Sensitivity [dB] (rated @ 1 W, 1 m) |
86 |
| Coverage (-6 dB) [°] | Omni |
| Directivity factor | 1.58 |
| Directivity index [dB] | 2 |
| Maximum SPL [dB] (continuous / peak) |
106 / 112 |
| Recommended amplifier | 100 W |
| Transformer taps / impedance |
70 V: 100, 50, 25, 12.5 W (mono only) 100 V: 100, 50, 25 W (mono only) Bypass: 4 Ω mono or 8 Ω + 8 Ω stereo |
| Connectors |
Hi-Z mono input: 4-pole Euroblock with thru output Low-Z input: 4-pole Euroblock, left (mono) and right Hi-pass mono output: x2 4-Pole Euroblock for x4 satellites |
| Enclosure material | Vinyl wrapped medium density fiberboard |
| Port baffle / cover panel | ABS |
| Ingress protection | N/A |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122° F (-20 to 50° C) |
| Net weight | 23.6 lb (10.7 kg) |
| Product dimensions (Ø x H) | 13.8 × 8.2 × 17-inch (350 × 209 × 432 mm) |
| Shipping weight | 13.94 lb (30.73 kg) |
| Shipping dimensions (H x W x D) | 21 × 12.4 × 18.6 in (535 × 315 × 473 mm) |
| Included accessories | V-wall bracket, 4x euroblock connector, rear cover panel, adhesive rubber feet |
| Safety agency |
UL1480A, ROHS, CE compliant Transformer UL registered per UL1876 |
