AD-S.SAT
2.75-inch Small Format Surface Satellite Loudspeaker
Features & Benefits
Inverted aluminum dome dust cap
Rated at 16 Ω
Locking 2-pole Euroblock connectors
X-Mount™ Mini mounting hardware provides repeatable angles without drift or sag
Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform

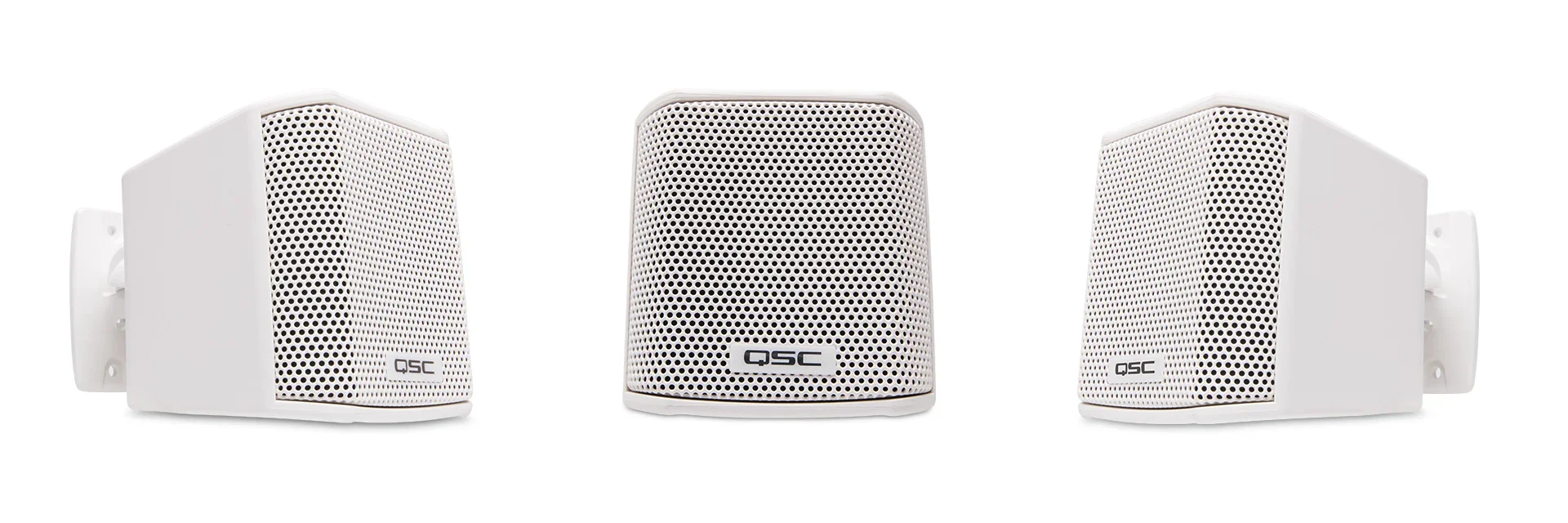

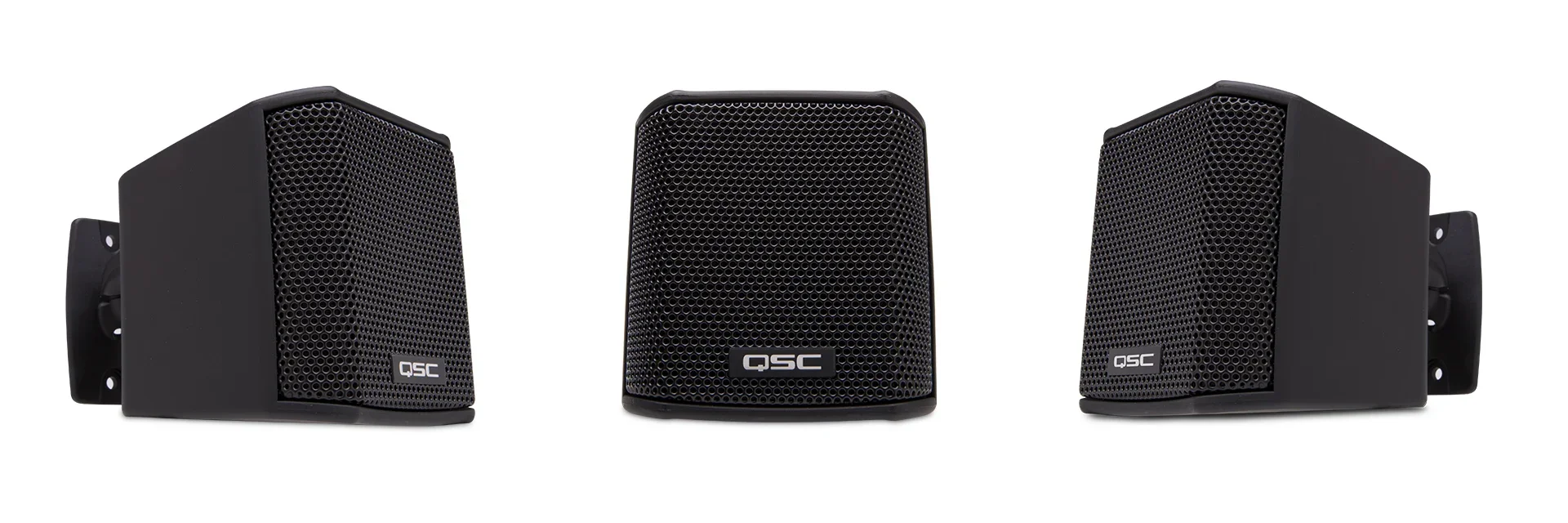

Available in black (RAL 9011) or white (RAL 9010)
Technical Specifications
| Specifications | AD-S.SAT |
|---|---|
| LF transducer | N/A |
| HF transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective frequency range | 150 Hz – 20 kHz |
| Rated noise power / voltage ⁶ | 25 W / 20 V (rms) |
|
Sensitivity [dB] (rated @ 1 W, 1 m) |
82 |
| Coverage (-6 dB) [°] | 170 Conical |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
|
Maximum SPL [dB] (rated, 1 m (continuous / peak)) |
90 / 96 |
| Recommended amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Connector | 2-pole Euroblock |
| Enclosure material | ABS |
| Grille material | Aluminum |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122° F (-20 to 50° C) |
| Net weight | 0.95 lb (433 g) |
|
Product dimensions including wall bracket (H x W x D) |
3.6 × 3.5 × 5.4-inch (92.5 × 89 × 136 mm) |
| Shipping weight | TBD (pair packed) |
| Shipping dimensions (H x W x D) | TBD (pair packed) |
| Included accessories | X-Mount Mini, Euroblock connector (pair packed) |
| Safety agency | Transformer UL registered per UL1876, ROHS, CE compliant |
