AD-S8T
8-inch 2-way, 105° conical DMT™
Features & Benefits
8-inch weather treated woofer; 1.4-inch compression driver
105° conical DMT™ coverage
60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
Maximum peak SPL 119 dB (8Ω bypass)
Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area

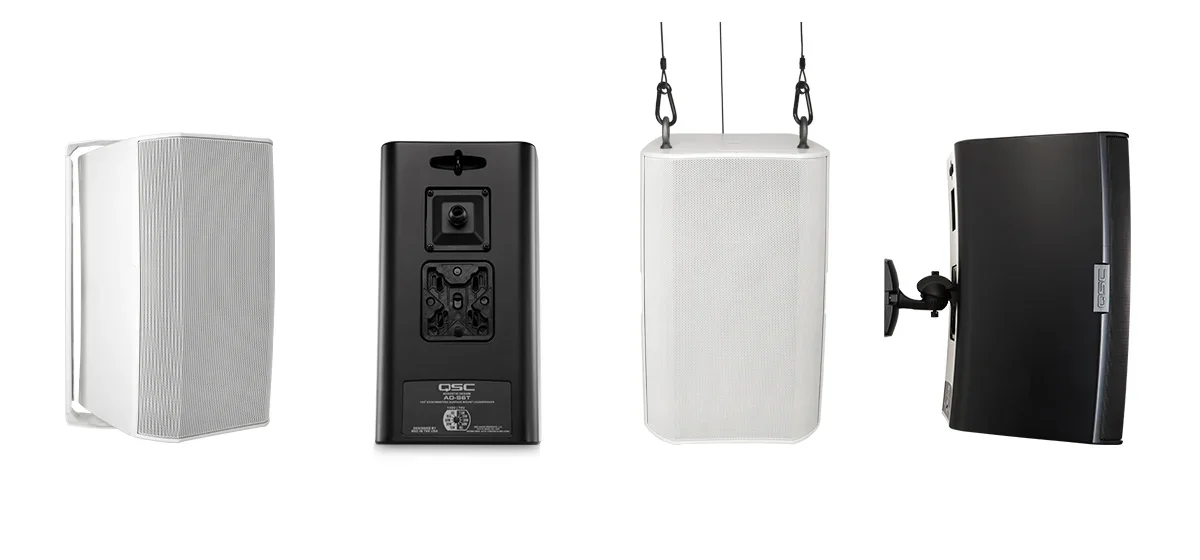

X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
Optional Yoke mount and M10 Kit-C for additional installation versatility
Advanced Intrinsic Correction™ voicings available via Q-SYS™
Lightweight ABS enclosures offer long-term durability and lasting good looks
Sealed input panel cover and powder coated aluminum grilles for added weather resistance
Meets IEC60529 IP-54 for dust and splash resistance

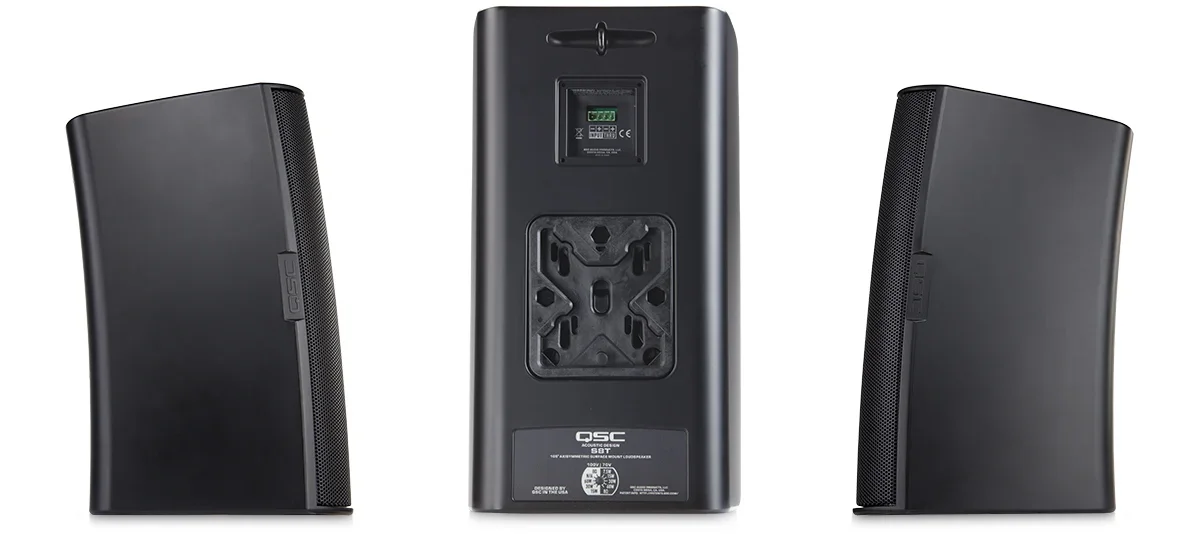

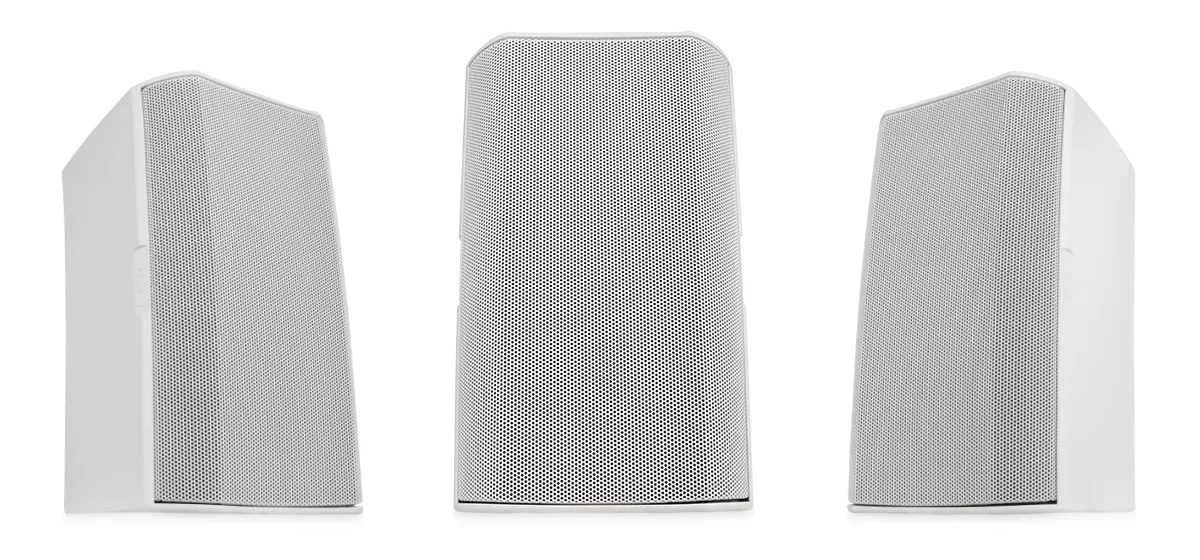

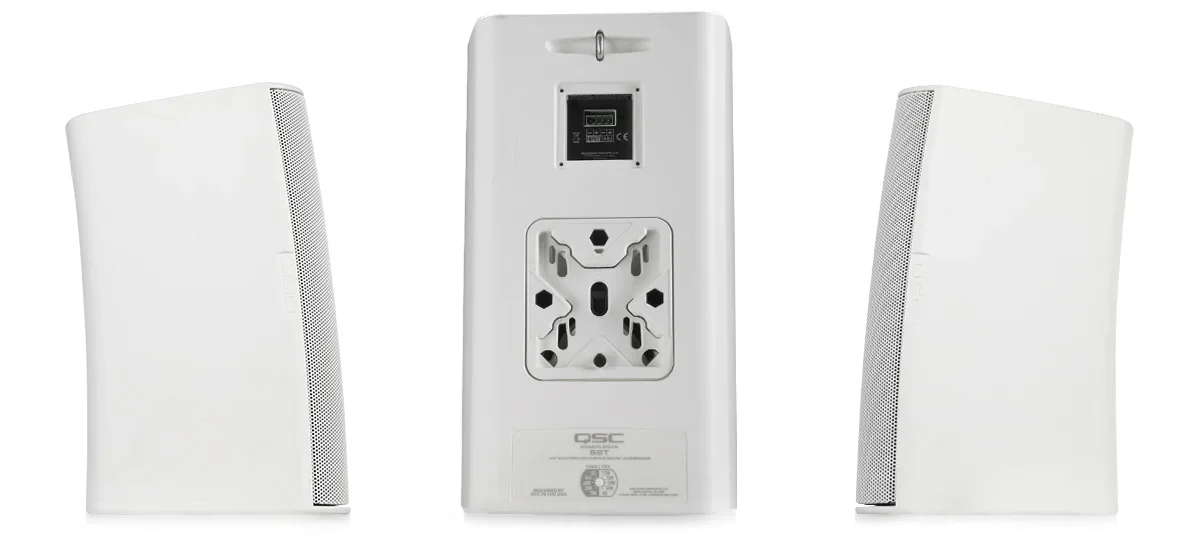

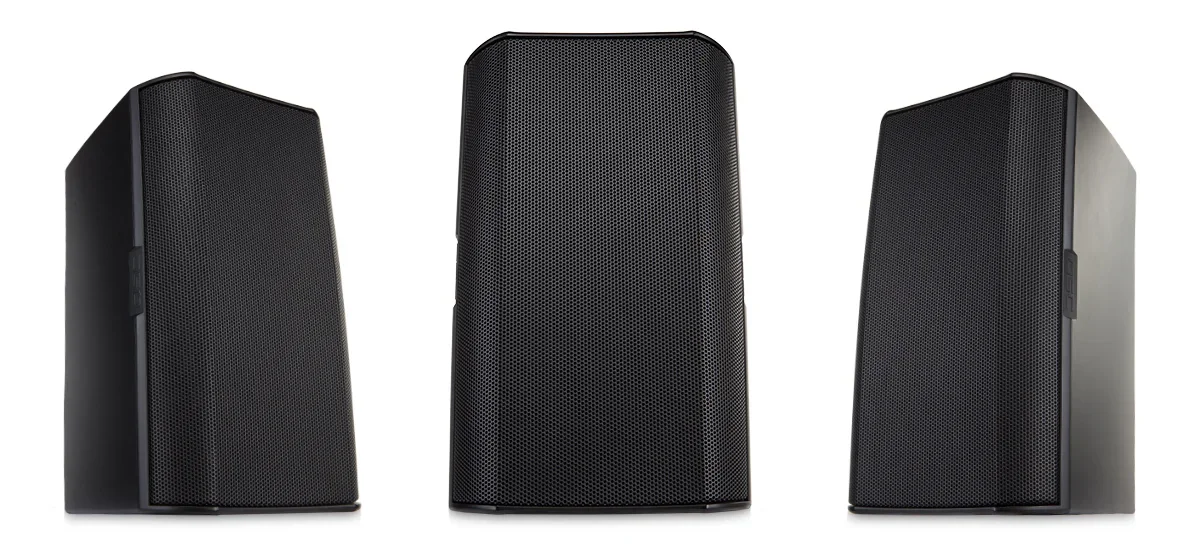

Available in black (RAL 9011) or white (RAL 9010)
Complete EASE, CF2, CAD, and BIM information available online
Technical Specifications
| System Details | AD-S8T |
|---|---|
| Effective frequency range¹ | 55 Hz - 20 kHz |
| Rated noise power / voltage² | 200 watts / 40 volts (rms) |
| Broadband sensitivity³ | 90 dB SPL |
| Coverage angle (-6 dB) | 105° conical DMT™ |
| Directivity factor (Q) | 7 |
| Directivity Index | 9 dB |
| Maximum continuous SPL⁴ | 113 dB |
| Maximum peak SPL⁴ | 119 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power (loudspeaker "program" power) |
400 watts |
| Transformer taps |
70 V: 60, 30, 15, 7.5 W and 8Ω bypass 100V: 60, 30, 15 W and 8Ω bypass |
| HF transducer | 1-inch exit / 1.4-inch voice coil compression driver |
| LF transducer |
8-inch weather resistant paper cone woofer 2-inch / 51 mm voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| X-Mount material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing |
The AD Series loudspeakers qualified for outdoor use using the following tests:
|
| Net weight | 24.1 lb / 11 kg |
| Product dimensions (HWD) inches |
17.3 × 10 × 9.9 |
| Product dimensions (HWD) mm |
440 × 254 × 251 |
| Shipping weight | 32.1 lb / 14.5 kg |
| Shipping dimensions (HWD) inches |
24.3 × 13.8 × 13.8 |
| Shipping dimensions (HWD) mm |
729 × 351 × 351 |
| Included accessories |
X-Mount mounting system, Euroblock connector, input panel cover |
| Optional accessories | YMS8T yoke mount, M10 Kit-C |
