AD-S5T

5.25-inch 2-way, 115° conical DMT™

5.25 inch weather treated woofer; 1 inch silk dome tweeter
115° conical coverage
60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
Maximum peak SPL 116 dB (8 ohm bypass)
Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
Advanced Intrinsic Correction™ voicings available via Q-SYS™
Lightweight ABS enclosures offer long-term durability and lasting good looks
Sealed input panel cover and powder coated aluminum grilles for added weather resistance
Meets IEC60529 IP-54 for dust and splash resistance

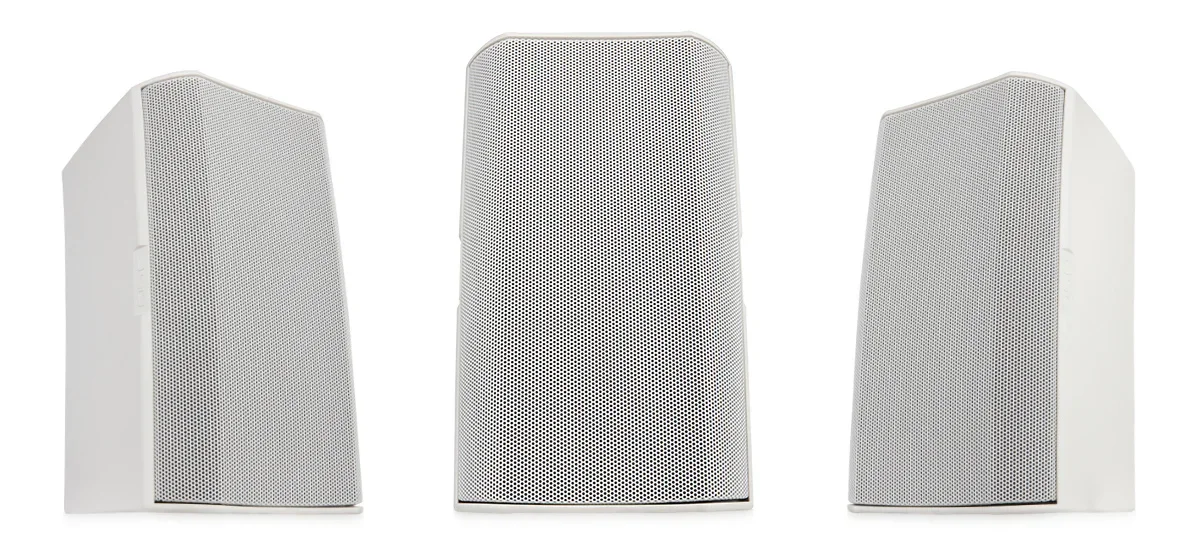

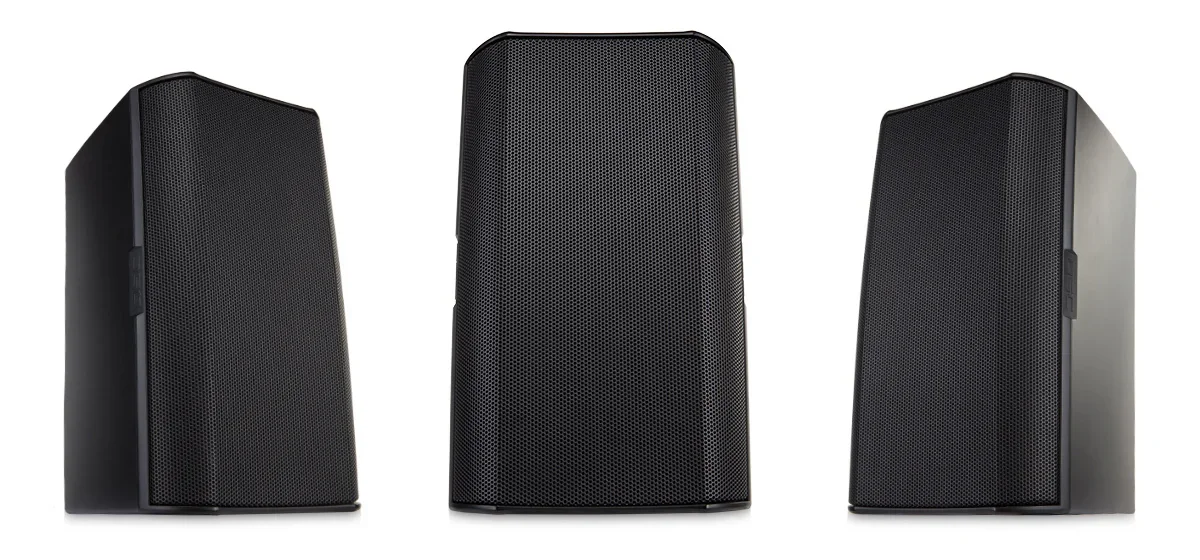

Available in black (RAL 9011) or white (RAL 9010)
Complete EASE, CF2, CAD, and BIM information available online

System Details	AD-S5T
Effective frequency range¹	60 Hz - 20 kHz
Rated noise power / voltage²	100 W
Broadband sensitivity³	86 dB SPL
Coverage angle	115° conical DMT®
Directivity factor (Q)	6.9
Directivity Index	7 dB
Maximum continuous SPL⁴	106 dB
Maximum peak SPL⁴	112 dB
Rated impedance	8 ohms
Transformer taps	70 V: 7.5, 15, 30, 60, bypass 100 V: n/a, 15, 30, 60, bypass
HF transducer	1-inch damped fabric dome tweeter, 1-inch voice coil
LF transducer	5.25-inch paper cone woofer, 1-inch voice coil
Input connector type	Euroblock connector with parallel output terminals
Enclosure material	Painted ABS polymer
Grille material	Powder coated aluminum
X-Mount material	Powder coated aluminum
Enclosure Details
Ingress protection	IP-54
Operating environment	Designed for indoor and outdoor use
Product dimensions (HWD)	11.3 × 6.9 × 6.8 in (286 × 175 × 174 mm)
Shipping weight	20.2 lbs / 9.2 kg (pair packed)
Shipping dimensions (HWD) inches	15.9 × 10.3 × 18.3 in (405 × 262 × 465 mm)
Included accessories	X-Mount mounting system, Euroblock connector, input panel cover
