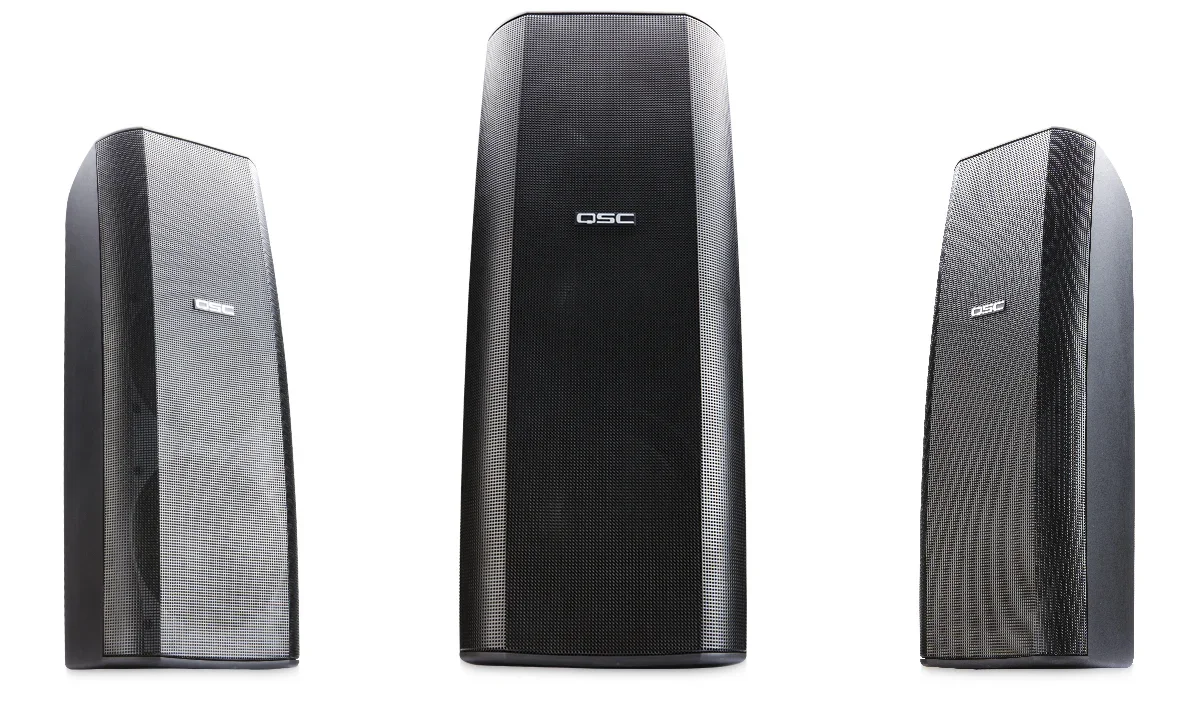

AD-S282H
Dual 8-inch 2-way, 90° x 60° (rotatable)
Features & Benefits
Contemporary style, weather-resistant enclosure and components - ideal for a wide range of applications.

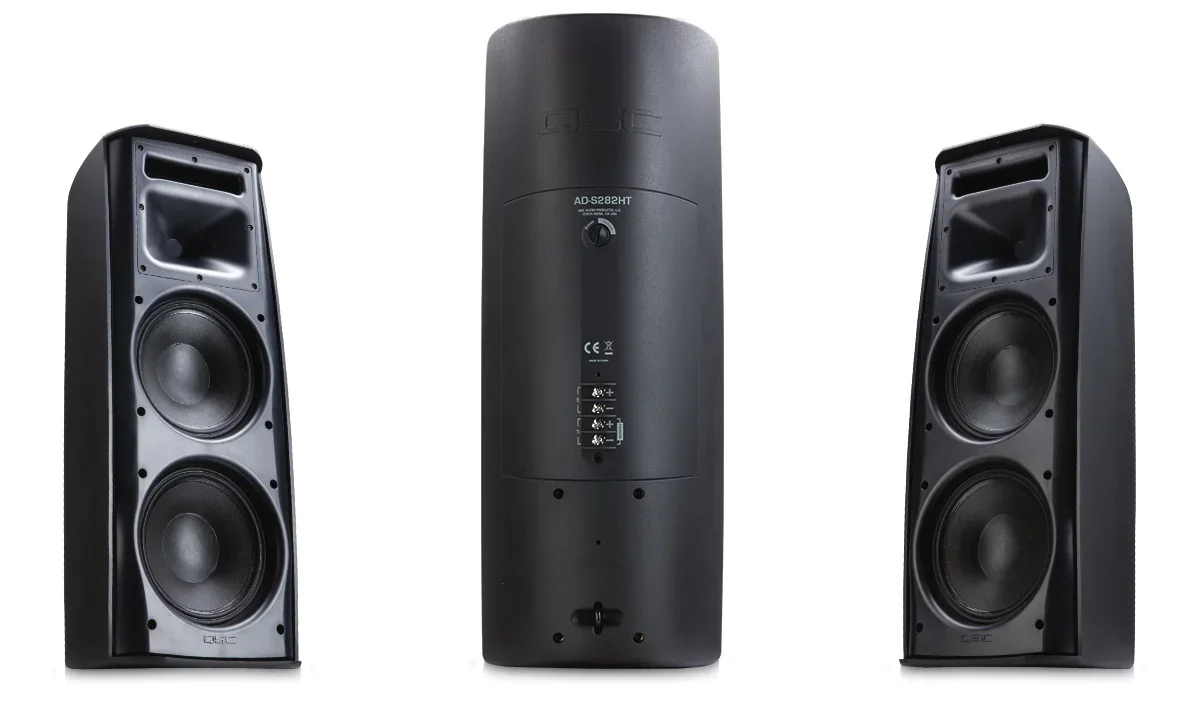

Dual 8-inch, 2-way system - in a lightweight, multipurpose enclosure featuring a heavy duty, powder coated aluminum grill.
Versatile mounting options - The included yoke mount bracket can be used for mounting and aiming the system in vertical or horizontal orientations. Provision for optional Omni-mount™ bracket is built in.
Advanced Directivity™ rotatable waveguide - (90° × 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation.
Low impedance - Standard 8 ohm system is selectable for passive or bi-amp operation.
Package Includes:
AD-S282H
Yoke mount and hardware
Connector protection cap
Technical Specifications
| SPECIFICATIONS | AD-S282H | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Configuration | Compact two way, ported enclosure | ||||||||
|
Transducers Low Frequency Transducer High Frequency Transducer |
Dual 8-inch high power, treated paper cone, 2-inch voice coil, neodymium magnet
1-inch high output compression driver |
||||||||
|
Frequency Range¹ Frequency Response (-6 dB) Useable Frequency Range (-10 dB) |
80 Hz - 27.7 kHz 60 Hz - 29.5 kHz |
||||||||
|
Maximum Output (SPL at 1 m)² Fullrange (passive mode) LF (biamp mode) HF (biamp mode) |
|
||||||||
|
Nominal Impedance Passive LF HF |
8 ohms 8 ohms 8 ohms |
||||||||
|
Power Rating³ Passive LF HF |
450 W (IEC 8 hours) 500 W (IEC 8 hours, 50 Hz - 2 kHz) 45 W (IEC 8 hours, 2 kHz - 20 kHz) |
||||||||
| Recommended Max Amp Power (Passive) | 900 W RMS | ||||||||
|
Sensitivity (SPL, 1 W at 1 m)⁴ Passive LF HF |
93 dB (100 Hz - 10 kHz) 97 dB (200 Hz - 2 kHz) 104 dB (2 kHz - 10 kHz) |
||||||||
| Nominal Coverage | 90° H x 60° V (-6 dB) (rotatable to 60° H x 90° V) | ||||||||
| Bass Loading | Ported, tuned to 60 Hz | ||||||||
| Enclosure | |||||||||
| Material | Injection molded, weather resistant, high impact polystyrene | ||||||||

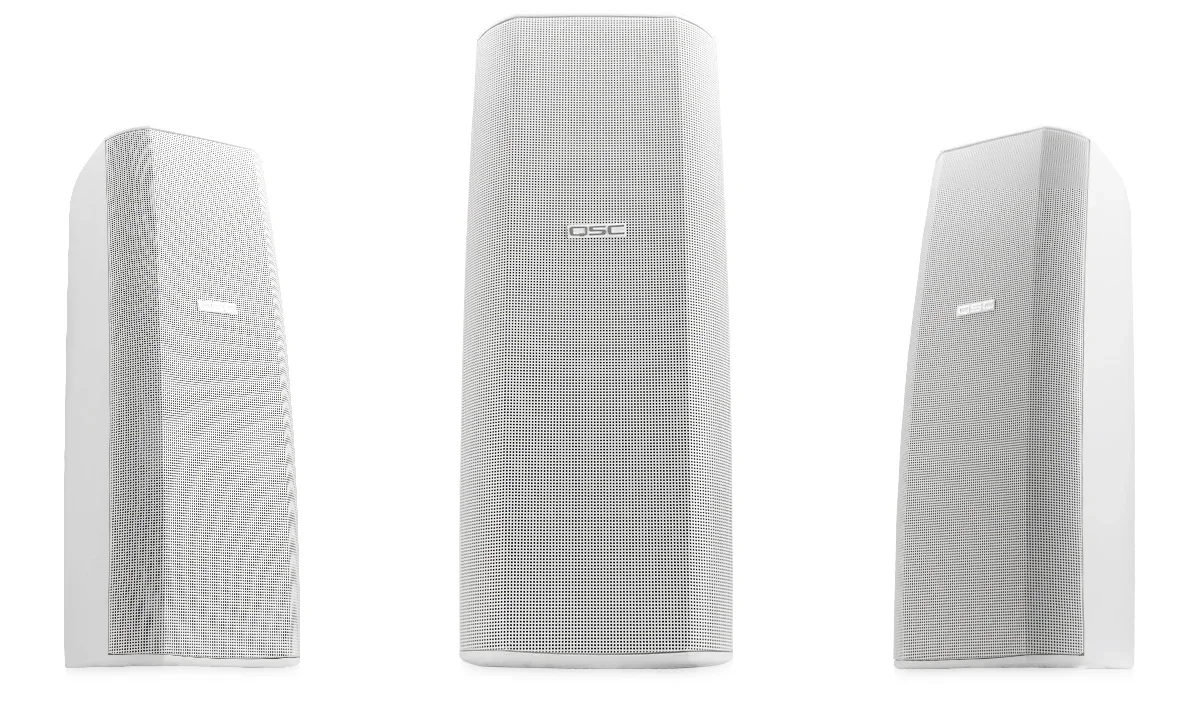

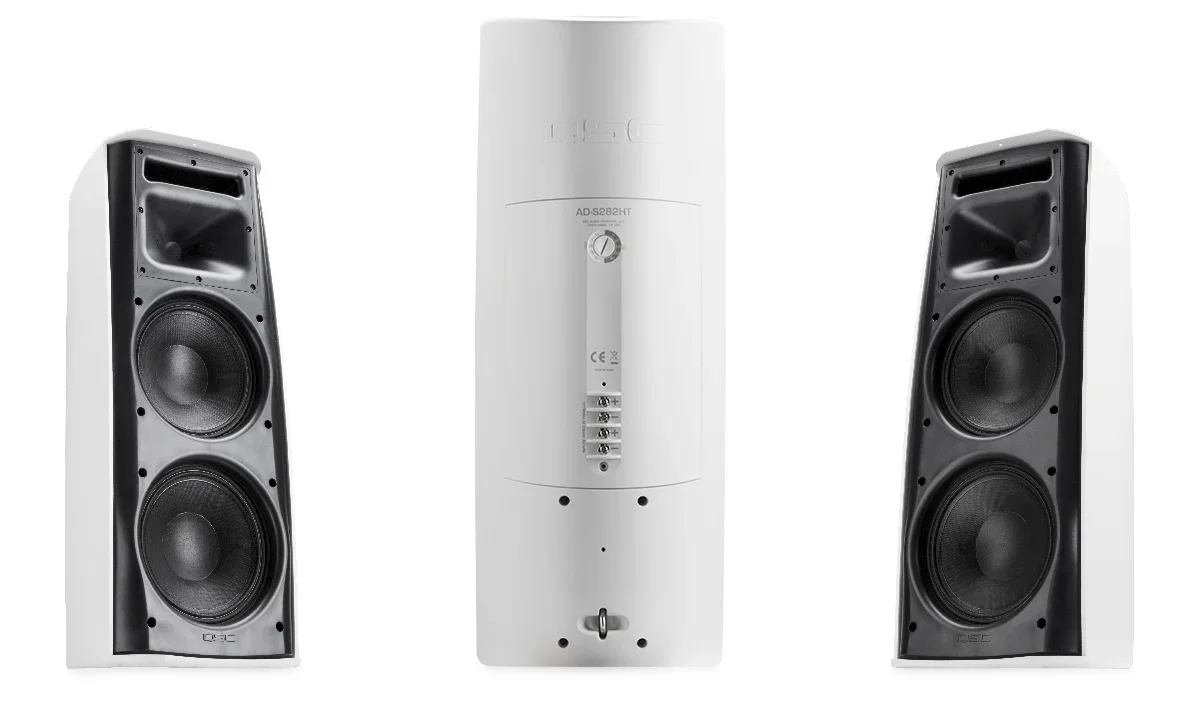

| Finish | White or black (paintable) | ||||||||
| Weather Resistant | Yes | ||||||||
| Grille | Heavy duty powder coated aluminum | ||||||||
| Connectors | Barrier strip, (switchable: passive/active on AD-S282H) | ||||||||
| Mounting Hardware | Yoke mount (included) | ||||||||
| Weight |
27.7 lb (12.6 kg) net 35.6 lb (16.1 kg) shipping |
||||||||
