AD-S12
12-inch 2-way, 75° conical DMT™
Features & Benefits
12-inch weather treated woofer; 1.4-inch compression driver
75° conical DMT™ coverage
Maximum peak SPL 126 dB
Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
Optional Yoke mount and M10 Kit-C for additional installation versatility
Advanced Intrinsic Correction™ voicings available via Q-SYS™
Lightweight ABS enclosures offer long-term durability and lasting good looks
Sealed input panel cover and powder coated aluminum grilles for added weather resistance
Meets IEC60529 IP-54 for dust and splash resistance

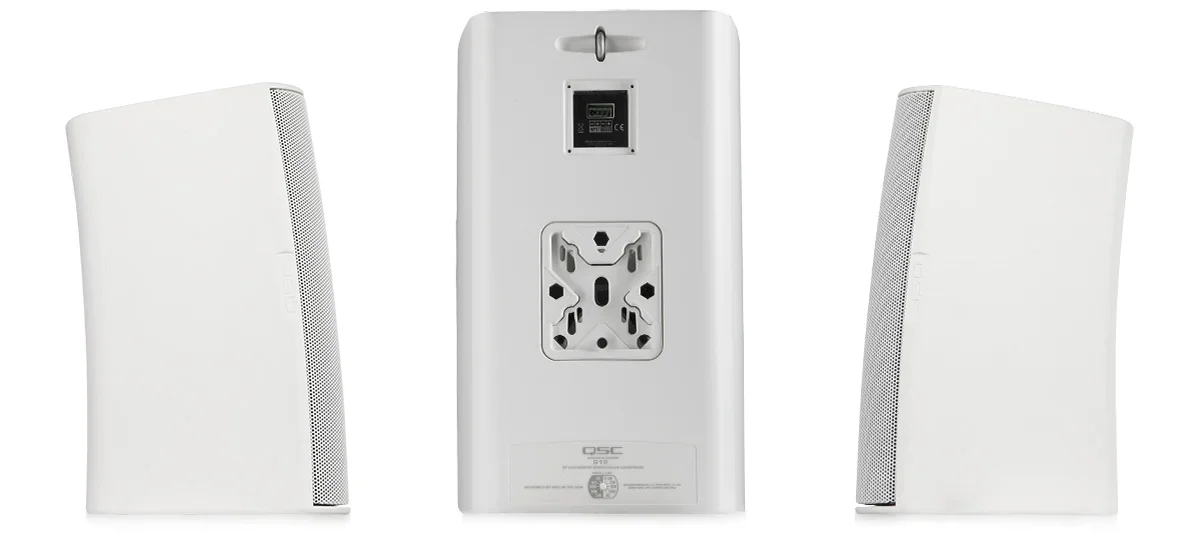

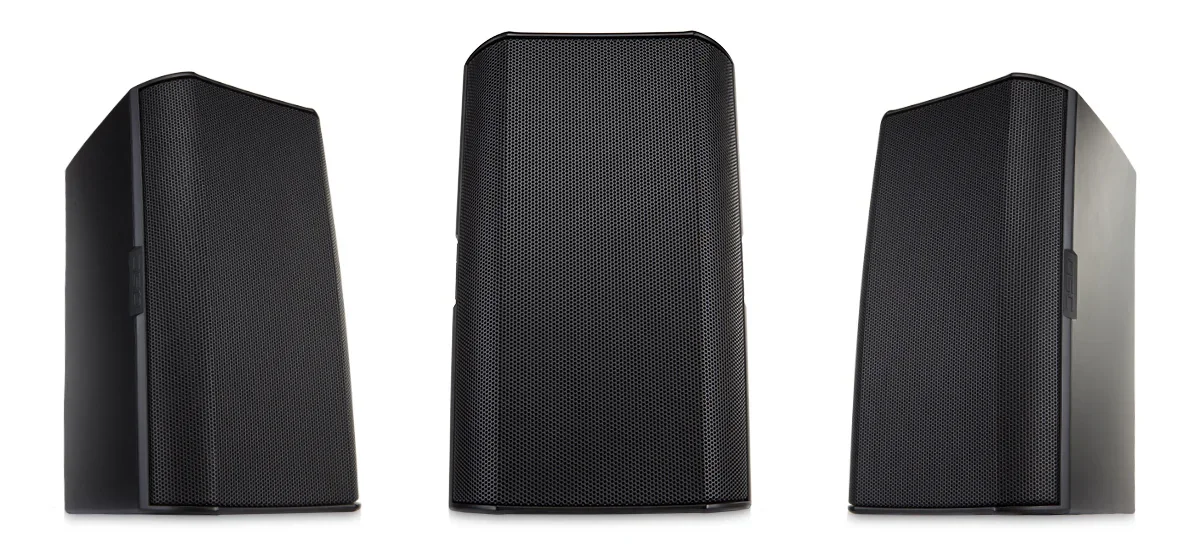

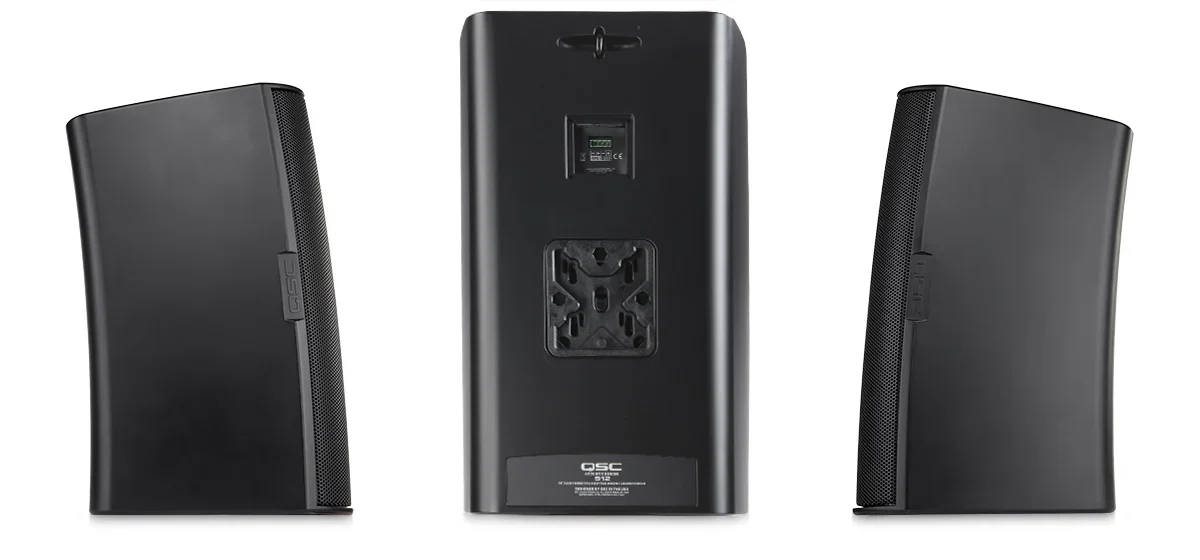

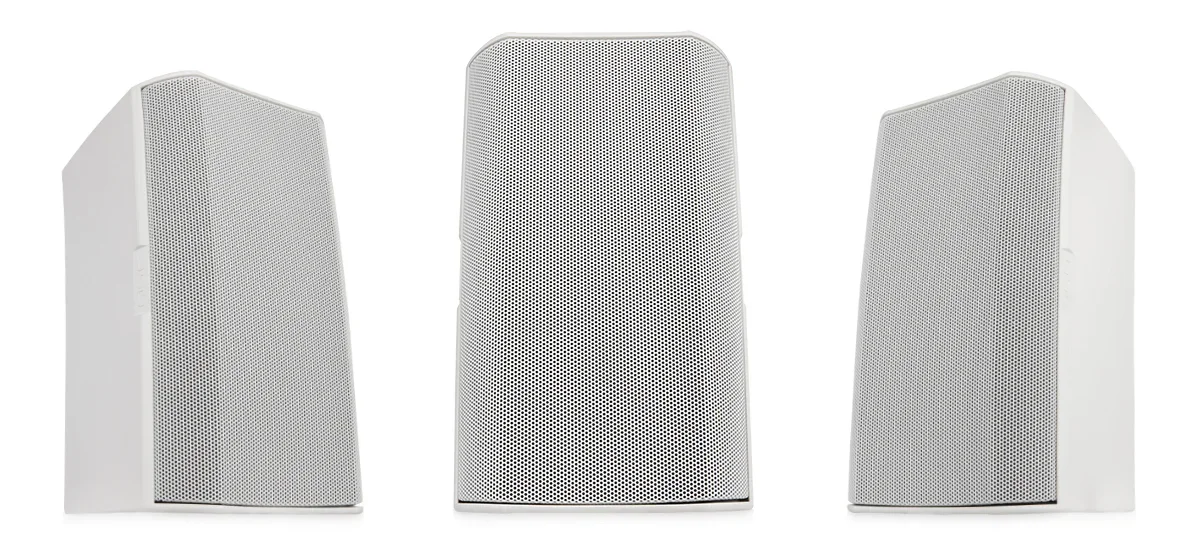

Available in black (RAL 9011) or white (RAL 9010)
Complete EASE, CF2, CAD, and BIM information available online
Technical Specifications
| System Details | AD-S12 |
|---|---|
| Effective frequency range¹ | 52 Hz - 20 kHz |
| Rated noise power / voltage² | 300 watts / 50 volts (rms) |
| Broadband Sensitivity³ | 95 dB SPL |
| Coverage angle (-6 dB) | 75° conical DMT™ |
| Directivity factor (Q) | 12 |
| Directivity Index | 11 dB |
| Maximum continuous SPL⁴ | 120 dB |
| Maximum peak SPL⁴ | 126 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power (loudspeaker "program" power) |
600 watts |
| Transformer taps | n/a |
| HF transducer | 1-inch exit / 1.4-inch voice coil compression driver |
| LF transducer | 12-inch weather resistant paper cone woofer, 2.5-inch / 64 mm voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing |
The AD Series loudspeakers qualified for outdoor use using the following tests:
|
| Product Dimensions (HWD) inches |
23.4 × 13.9 × 12.7 |
| Product Dimensions (HWD) mm |
594 × 354 × 323 |
| Net weight | 35.2 lb / 16 kg |
| Shipping weight | 46.3 lb / 21 kg |
| Shipping dimensions | 34.5-inch x 17.9-inch x 17.2-inch (765 × 455 × 437 mm) |
| Included accessories | X-Mount mounting system, Euroblock connector, Input panel cover |
| Optional accessories | YMS12 yoke mount, M10 Kit-C |
