AD-S10T
10-inch 2-way, 90° conical DMT™
Features & Benefits
10-inch weather treated woofer; 1.4-inch compression driver
90° conical DMT™ coverage
100 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
Maximum peak SPL 122 dB (8 ohm bypass)
Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time Optional Yoke mount and M10 Kit-C for additional installation versatility
Advanced Intrinsic Correction™ voicings available via Q-SYS™
Lightweight ABS enclosures offer long-term durability and lasting good looks

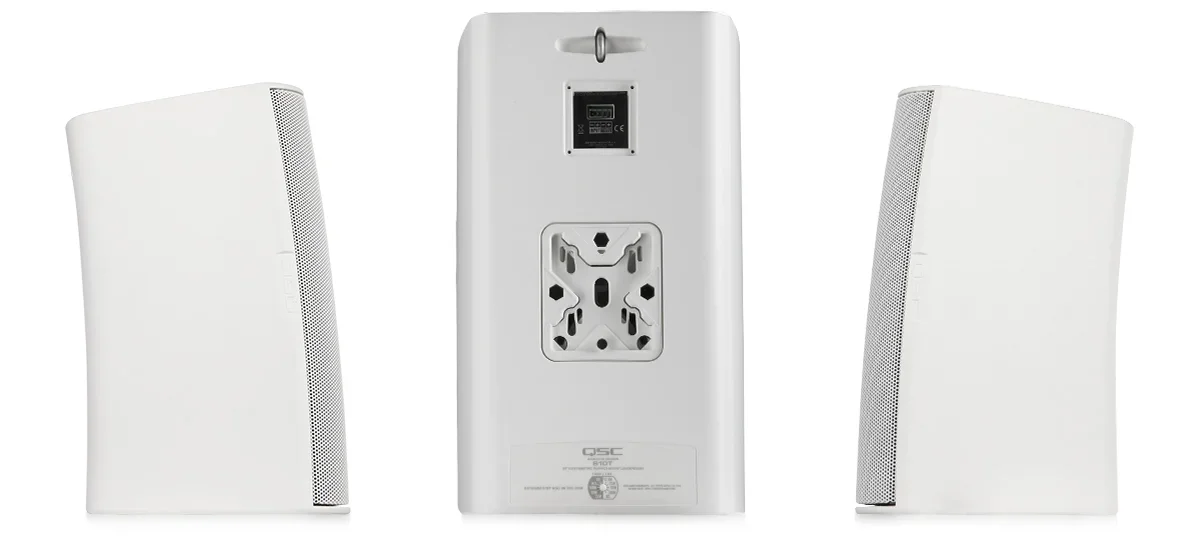

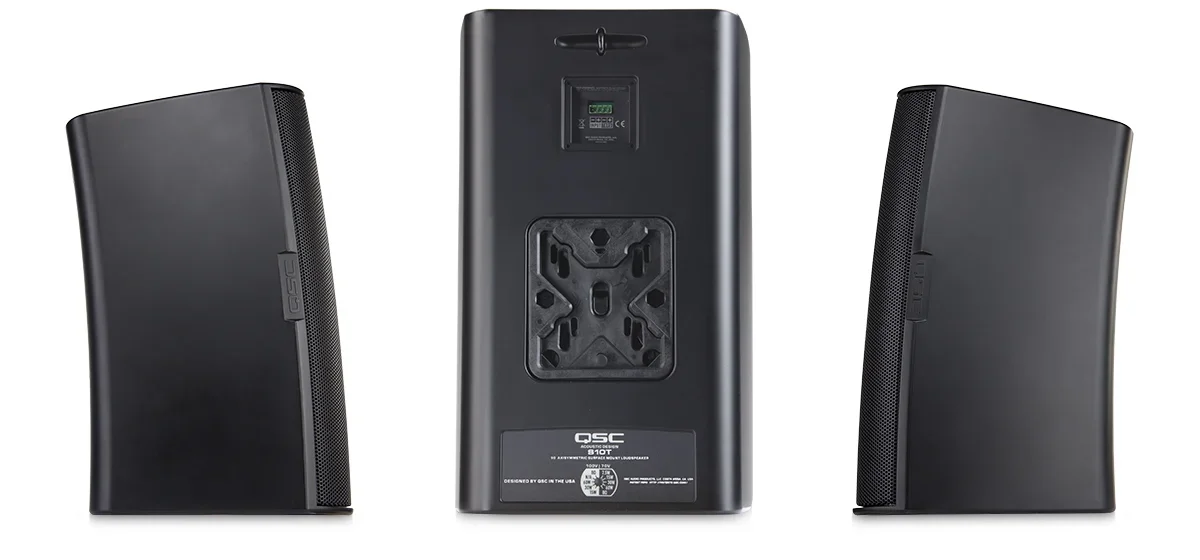

Sealed input panel cover and powder coated aluminum grilles for added weather resistance
Meets IEC60529 IP-54 for dust and splash resistance

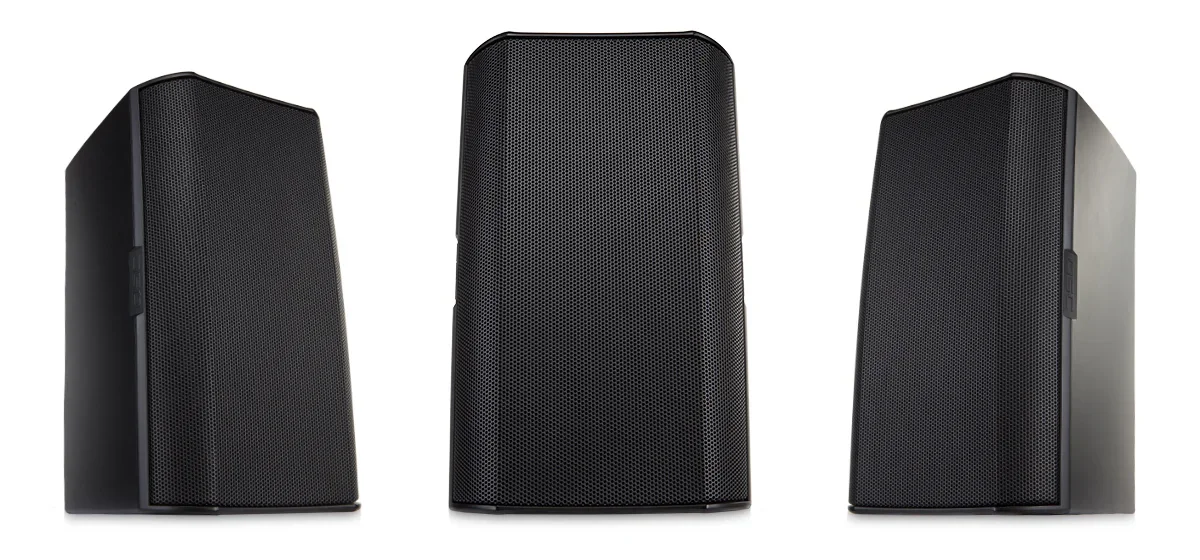

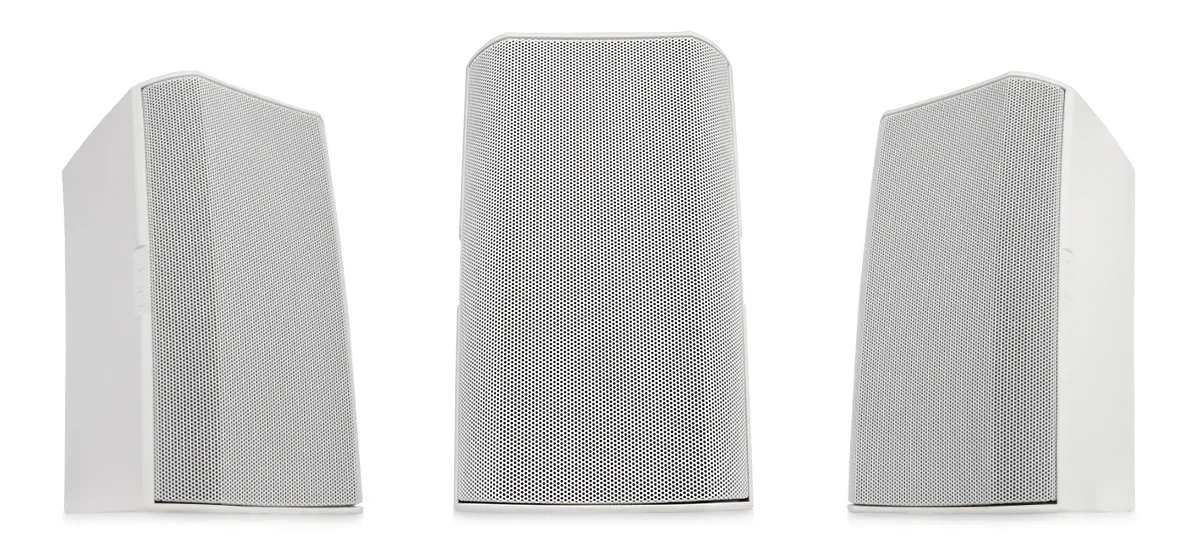

Available in black (RAL 9011) or white (RAL 9010)
Complete EASE, CF2, CAD, and BIM information available online
Technical Specifications
| System Details | AD-S10T |
|---|---|
| Effective frequency range¹ | 50 Hz - 19 kHz |
| Rated noise power / voltage² | 250 watts / 45 volts (rms) |
| Broadband sensitivity³ | 92 dB SPL |
| Coverage angle (-6 dB) | 90° conical DMT™ |
| Directivity factor (Q) | 10 |
| Directivity Index | 10 dB |
| Maximum continuous SPL⁴ | 116 dB |
| Maximum peak SPL⁴ | 122 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power (loudspeaker "program" power) |
500 watts |
| Transformer taps |
70 V: 100, 50, 25, 12.5 W and 8Ω bypass 100V: 100, 50, 25 W and 8Ω bypass |
| HF transducer | 1-inch exit / 1.4-inch voice coil compression driver |
| LF transducer |
10-inch weather resistant paper cone woofer 2.5-inch / 64 mm voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| X-Mount material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing |
The AD Series loudspeakers qualified for outdoor use using the following tests:
|
| Net weight | 31 lb / 15 kg |
| Product dimensions (HWD) inches |
20.3 × 12.5 × 11.7 |
| Product dimensions (HWD) mm |
516 × 318 × 298 |
| Shipping weight | 40.6 lb / 18.45 kg |
| Shipping dimensions (HWD) inches |
31.7 × 16.1 × 16.1 |
| Shipping dimensions (HWD) mm |
805 × 409 × 409 |
| Included accessories |
X-Mount mounting system, Euroblock connector, input panel cover |
| Optional accessories | YMS10T yoke mount, M10 Kit-C |
