AcousticDesign Series (Premium)

Features & Benefits

AcousticDesign™ surface loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience. Models ship complete with the award winning X-Mount™ system and weather input cover.

Consistent and even conical coverage is achieved through Directivity Matched Transition (DMT™), an innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response.
AcousticDesign models with (T) suffix feature low-loss, low-saturation transformers with selectable taps, including an 8Ω bypass. To enhance weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.
To further enhance performance and speed of install with optimum result, advanced voicing filter sets using Intrinsic Correction™ techniques are available via Q-SYS.

Installers will appreciate the award-winning X-Mount™ system included with each full-range AcousticDesign model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, vertical, wall, or ceiling deployments.
Knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow pre-configuration of the X-Mount™ while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster with repeatable results.
Furthermore, AcousticDesign surface-mount speakers may be adapted to third-party mounting solutions or used with the following ball-mount and yoke mount accessories:
• AD-S32T: Yoke and ball mount included
• AD-S52/S52T: YM-5 Yoke Mount available
• AD-S6T/AD-S8T/AD-S10T/AD-S12: X-Mount™
included, Yoke Mounts available
With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance.
Designed for all general audio applications, AcousticDesign surface-mount models come in a wide range of sizes, from a compact 3-inch 2-way to a dual 8-inch 2-way and even a dual 8-inch subwoofer. Several models have built-in 70/100 volt distributed line transformers.

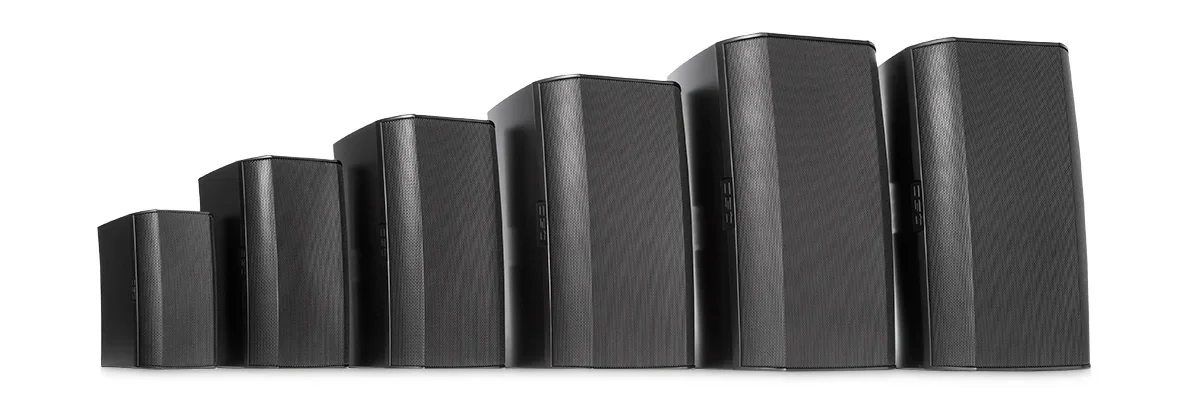

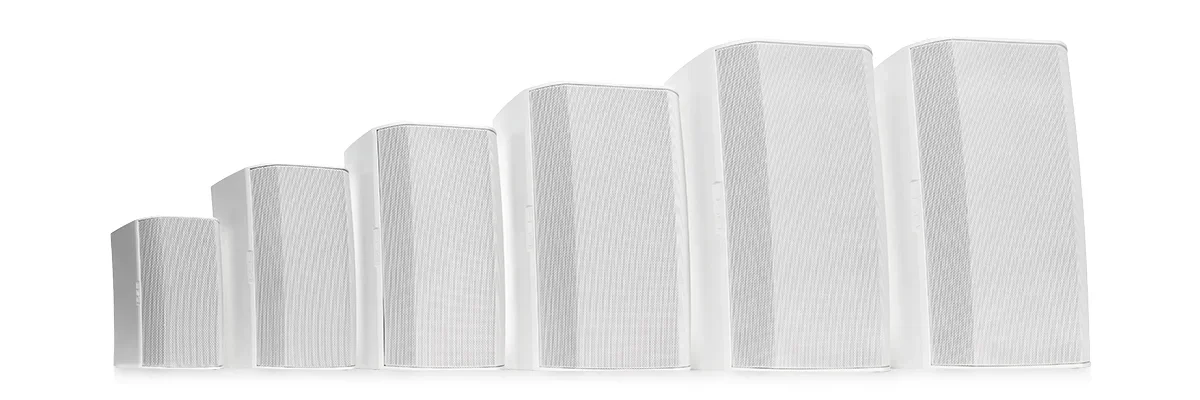

Complementing adjacent product families, AcousticDesign surface loudspeakers are available in black (RAL 9011) or white (RAL 9010) and may be painted to match any décor.

SELECT A MODEL


          Model
          AD-S4T
          AD-S5T
          AD-S6
          AD-S6T
          AD-S8T
          AD-S10T
          AD-S12

          Effective frequency range¹
          68 - 20k Hz
          65 – 20k Hz
          58 - 20k Hz
          60 – 20k Hz
          55 – 20k Hz
          50 – 19k Hz
          52 – 20k Hz

          Rated noise power / voltage²
          50 W / 20 V
(rms)
          100 W / 28 V
(rms)
          150 W / 49 V
(rms)
          150 W / 35 V
(rms)
          200 W / 40 V
(rms)
          250 W / 45 V
(rms)
          300 W / 50 V
(rms)

          Sensitivity³
          87 dB SPL
          86.3 dB SPL
          89 dB SPL
          89 dB SPL
          90 dB SPL
          92 dB SPL
          95 dB SPL

          Coverage Angle (-6 dB)
          120° conical
DMT™
          115° conical
DMT™
          105° conical
DMT™
          105° conical
DMT™
          105° conical
DMT™
          90° conical
DMT™
          75° conical
DMT™

          Output⁴ (Peak SPL @ 1M)
          110 dB
          112 dB
          116 dB
          116 dB
          119 dB
          122 dB
          126 dB

            Driver Information:

            LF

            HF

            4.5" weather treated paper cone woofer, 1" / 25 mm voice-coil

            0.75" silk dome tweeter / 0.75" voice coil, horn loaded

            5.25" paper cone woofer, 1" voice coil

            1" damped fabric dome tweeter, 1" voice coil

            6.5" weather treated paper cone woofer, 1.5" / 38 mm voice-coil

            1" silk dome tweeter / 1" voice-coil horn loaded

            6.5" weather treated paper cone woofer, 1.5" / 38 mm voice-coil

            1" silk dome tweeter / 1" voice-coil horn loaded

            8" weather treated paper cone woofer, 2" / 51 mm voice-coil

            1" exit / 1.4" voice-coil compression driver

            10" weather treated paper cone woofer, 2.5" / 64 mm voice-coil

            1" exit / 1.4" voice-coil compression driver

            12" weather treated paper cone woofer, 3" / 76 mm voice-coil

            1" exit / 1.4" voice-coil compression driver

          Transform Max Tap
          70 V: 30 W
100 V: 30 W
          70 V: 60 W
100 V: 60 W
          No transformer
          70 V: 60 W
100 V: 60 W
          70 V: 60 W
100 V: 60 W
          70 V: 100 W
100 V: 100 W
          No transformer

          Rated Impedance
          8 Ω
          8 Ω
          16 Ω
          8 Ω
          8 Ω
          8 Ω
          8 Ω

          Input Connectors
          Euroblock connector with parallel output terminals

          Enclosure
          Painted ABS polymer

          Ingress protection
          IP-54

          Net Weight
          6.5 lb / 2.9 kg
          9.9 lbs / 4.5 kg
          11.6 lb / 5.26 kg
          13.6 lb / 6.2 kg
          24.1 lb / 11 kg
          31 lb / 15 kg
          35 lb / 16 kg

Legacy Model


          Legacy Models

          Model
          AD-S282H

          Frequency Range, -10 dB
          60 Hz - 29.5 kHz

          Nominal Coverage
          90° H x 60° V

          Power Capacity¹
          450 W (8 hours)

          Sensitivity²
          93 dB

          LF Driver Information

            Dual 8 in high power,

            treated paper cone,

            2 in voice coil,

            neodymium magnet

          HF Driver Information

            1 in high output

            compression driver

          Controls / Selectors

            70V 200, 100, 50, 25 W

            100V 200, 100, 50 W

            8Ω Selectable

            Rotary Knob

          Connectors

            Barrier strip,

            (switchable: passive/active

            on AD-S282H)

          Dimensions (HWD) inches
          -

          Dimensions (HWD) mm
          -

          Weight
          27.7 lb / 12.6 kg
