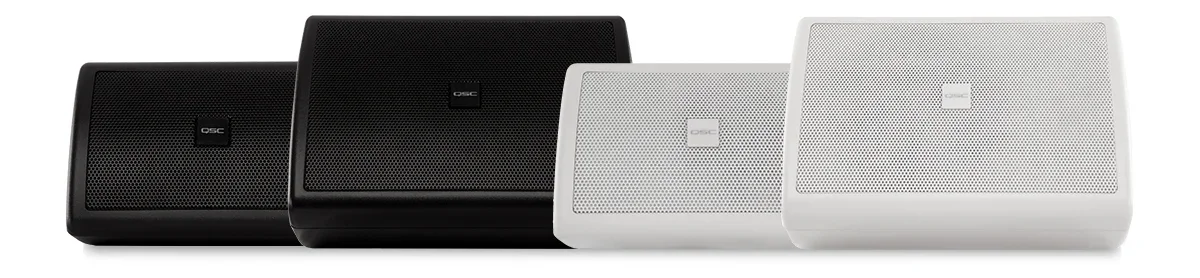

AcousticCoverage Series
Features & Benefits
AcousticCoverage™ is designed to offer integrators a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products. Applications for AcousticCoverage™ speakers include wide area paging systems, background music, office buildings, healthcare facilities, concourses, transportation terminals and more.
High quality transducers provide exceptional clarity through the critical voice range.
Ported baffle for increased low frequency extension.
Low saturation 70/100V transformers with 8 ohm bypass.
4-pole Euroblock connector eases system wiring.
Intrinsic Correction™ voicings available via Q-SYS Platform.
Spring-loaded and rotatable logo on grill for installation convenience in either horizontal or vertical deployments.
Available in White (RAL 9010) or Black (RAL 9011).
Complete EASE, CAD & BIM information
SELECT A MODEL
| Model | AC-S4T | AC-S6T |
|---|---|---|
| Frequency Range (-10 dB)¹ | 70 Hz - 20 kHz | 60 Hz - 20 kHz |
| Power Capacity² | 16 W | 30 W |
| Broad-Band Sensitivity³ | 85 dB SPL | 88 dB SPL |
| Coverage Angle | 130° (500 Hz - 5 kHz) | |
| Output 3 (Peak SPL @ 1M)⁴ | 103 dB | 107 dB |
| Driver Information |
4.5 inch Polypropylene woofer with 1 inch voice-coil |
6.5 inch Polypropylene woofer with 1 inch voice-coil |
| Rated Impedance | 8 ohm | |
| Input Connectors |
Euroblock connector with parallel output terminals |
|
| Baffle Material | Painted ABS polymer | |
| Net Weight | 5.2 lbs / 2.4 kg | 8.3 lbs / 3.8 kg |
