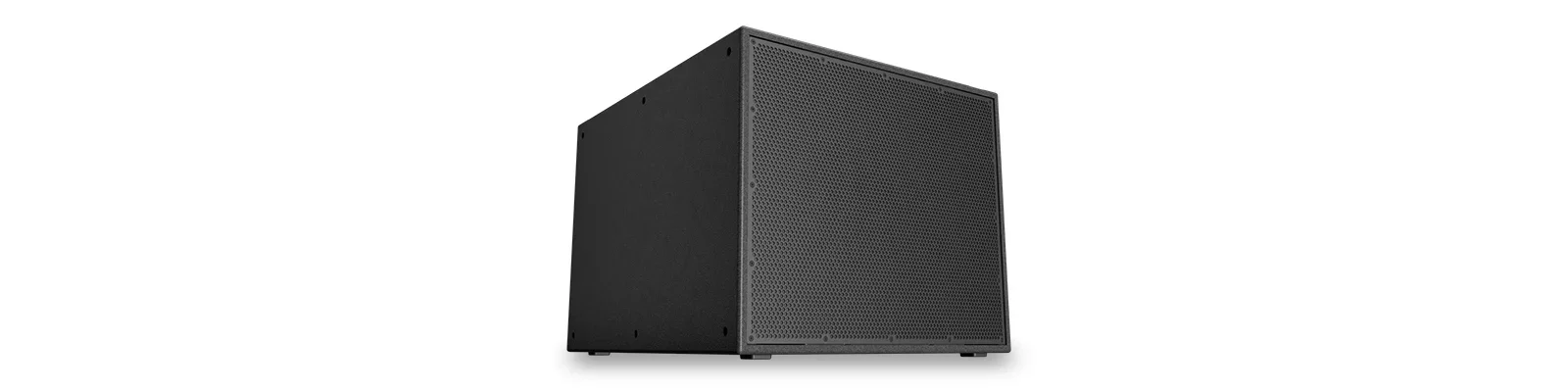

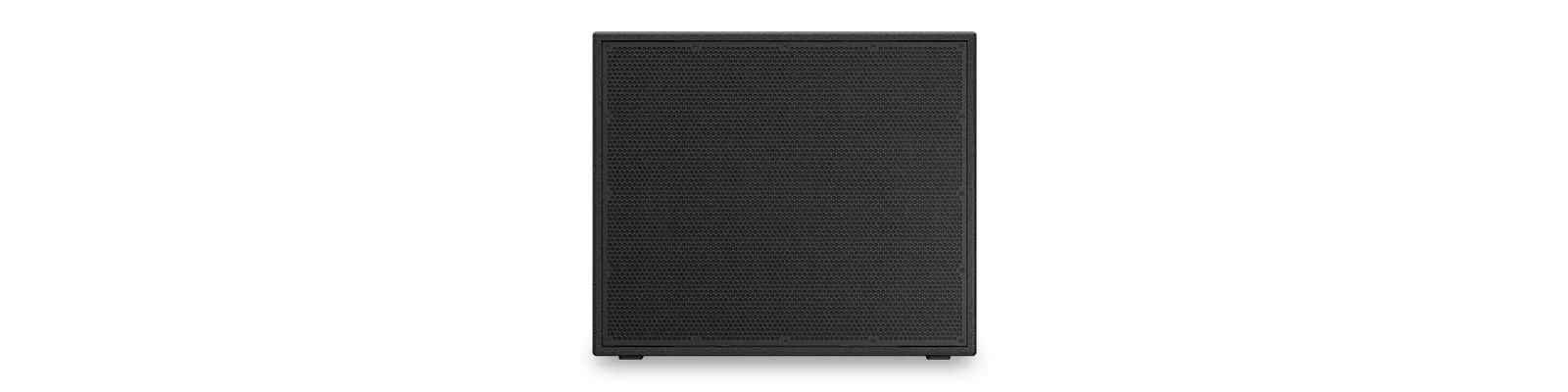

Q-SYS PL-SUB15
Passive 18-inch installation subwoofer
Features & Benefits
The Q-SYS PL-SUB18 is a passive, 18-inch installation subwoofer that features a weatherized wooden enclosure in a compact form factor suited for a broad range of applications, from entertainment and small sporting venues to corporate auditoriums or higher ed lecture halls.
18-inch LF transducer in a bass-reflex enclosure
Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
Omnidirectional or cardioid radiation, selectable in Q-SYS (requires deployment of two or more subwoofers)
PL-SUB18 is flyable with the PL-LA12 line array (PL-LA12-AF Array Frame not included)
Deliver the right system for your customers: The Q-SYS PL-SUB18 is a passive, 18-inch installation subwoofer that features a weatherized wooden enclosure in a compact form factor suited for a broad range of applications, from entertainment and small sporting venues to corporate auditoriums or higher ed lecture halls. When deploying two or more subwoofers, this 18-inch model also offers omnidirectional or cardioid radiation modes configurable within Q-SYS Designer Software.
Full control and monitoring for Entertainment: Deploy intuitive user control interface for any operator in the venue. Similarly, enlist Q-SYS Reflect to remotely monitor and enable system visibility, even allowing an offsite technician to identify and troubleshoot issues from any web browser.
Seamless Q-SYS experience: PL Series performance loudspeakers are part of a comprehensive Q-SYS system portfolio that delivers a holistic audio, video, and control experience for the entire venue.
Technical Specifications
| SPECIFICATIONS | PL-SUB18 |
|---|---|
| Transducers | LF: 18 in (460 mm), 4 in (100 mm) voice coil |
| Enclosure configuration | Passive subwoofer in bass reflex enclosure |
| Coverage | Omni-directional or cardioid radiation modes selectable in Q-SYS; cardioid setup requires minimum two (2) units |
| System bandwidth (-10 dB with EQ) |
34-100 Hz Sub Crossover = 80 34-110 Hz Sub Crossover = 100 34-140 Hz Sub Crossover = 125 |
| System sensitivity | 96dB @ 1W/1m |
| Max SPL* (continuous) | 126 dB |
| Enclosure material: | Exterior plywood |
| Enclosure color | Black (RAL 9011) |

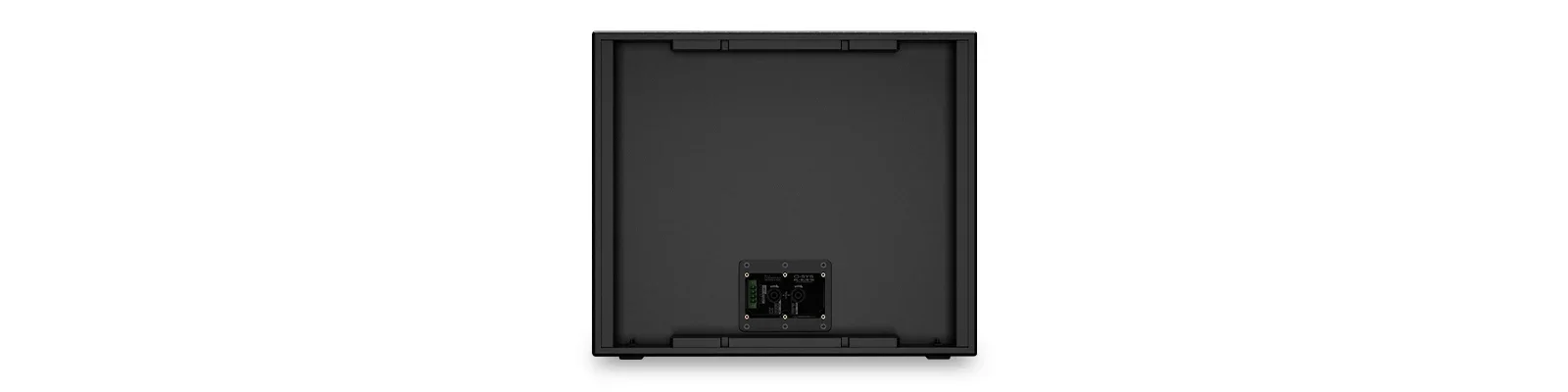

| Connectors |
2x Speakon NL4 (cable connector not provided) 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles |
| Deployment ** |
Integrated retractable rigging hardware allows secure ground
stacking or connecting to the PL-LA12-AF Array Frame Flyable in column up to 10x PL-SUB18 (without PL-LA12-AF Array Frame) or up to 3x PL-SUB18 + 10x PL-LA12 (with PL-LA12-AF Array Frame) |
| Weatherization |
IP54 External plywood Stainless screws Treated grille vs. UV and corrosion Hydrophobic stainless steel mesh behind grille Polyurea Paint Input cup (IP65) sealing with gland |
| Recommended amplifiers | Q-SYS CX-Q 8K4 (up to 1 per ch) |
| Dimensions | 20.9 × 24.4 × 29.15 in (531 × 620 × 740.6 mm) |
| Weight | 102.2 lb (46.3 kg) |
