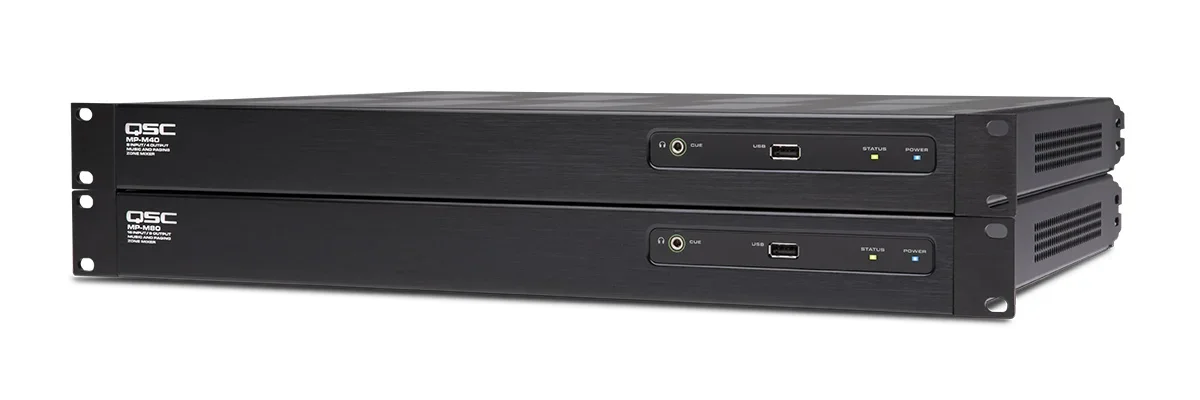

MP-M Series Premium Business Music Mixers
Music and Paging Mixers
The QSC MP-M music and paging mixers are fixed architecture mixer/processors offering unprecedented capabilities combined with ease of configuration and operation. The products are intended for retail and hospitality applications in which high-quality audio from various sources is routed to multiple zones. Live mixing functions are also supported for applications requiring reinforcement of entertainment, presentations or conferences.
MP Install provides the system designer and installer an
attractive graphic environment and intuitive workflow to
configure and tune the system.
Helps the installer keep track of tasks and easily navigate the mixer.
Apply Intrinsic Correction™ (factory FIR/IIR presets) to QSC loudspeakers to maximize the performance and value of the system.
Controls are easily customized to give facility staff as much or as little control as is needed.
The available MP-MFC wired, wall-mounted controllers with graphic display control source selection, level and preset recall. Or control the system from smartphones and tablets using the MP Manage app.
MP-M Series mixers match the appearance aesthetic of the QSC MP-A Series music and paging amplifiers for an installation that looks as good as it sounds.
SELECT A MODEL
MP-M40
MP-M80
Inputs
Total
8
16
Mic/Line
4 (Euroblock)
8 (Euroblock)
RCA
4 (mono-summed RCA pairs)
8 (mono-summed RCA pairs)
Outputs
Total
6
10
Line
4 (Euroblock, balanced)
8 (Euroblock, balanced)
Music on Hold
1 (Euroblock, transformer balanced)
1 (Euroblock, transformer balanced)
Cue (phones)
1 (3.5 mm, stereo)
1 (3.5 mm, stereo)
Dimensions (H×W×D)
45 × 483 × 356 mm
1.75 × 19 × 14 in
1.75 × 19 × 14 in
Net Weight
3.2 kg / 7 lb
