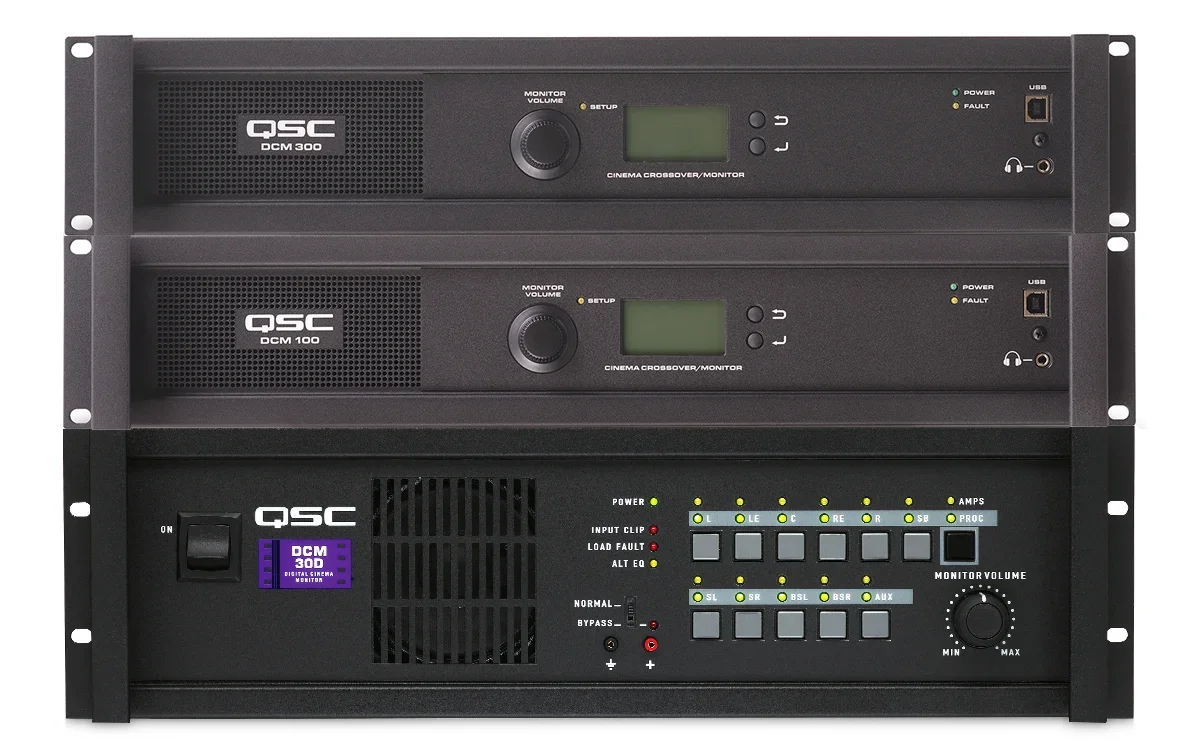

DCM Series
Features & Benefits
QSC Digital Cinema Monitors (DCM) integrate DSP crossovers, booth monitoring, and load fault detection into a single unit that provides exceptional performance and control while interfacing seamlessly with existing legacy cinema processors. By combining booth monitor and crossovers, the DCM Series monitors simplify system wiring and configuration, boosting your bottom line with faster setup and increased operational efficiency.
The DCM Series Monitors take full advantage of digital technology for both processing and control. Digital Signal Processing delivers the best possible sound quality and high dynamic range to outperform traditional analog crossovers. And our software lets you easily build and deploy configurations that combine all elements of system setup into a savable preset.
-
Quad-, tri-, bi-amp, or passive operation (varies by model)
Three to five screen channels (varies by model)
Intrinsic Correction™ to optimize DCS speaker systems (DCM 300 only)
Precise adjustment of crossover frequencies, parametric EQ, polarity, and gain for each speaker in your system
Switch-in alternate EQ settings for alternative content
-
DCM Manager for DCM 30D
DPM Manager for DCM 100/300
Easy intuitive system setup
Configure parameter settings, routing, crossover filters, gains, delays, diagnostics, and monitoring
Real-time software control from PC via USB
-
Analog or AES/EBU inputs
DataPort amp connections (no barrier strips or XLRs required)
-
Support for all current cinema sound processor formats
Load and amplifier fault monitoring reports opens and shorts for each channel
Active emergency bypass crossover provides fail-safe operation
SELECT A MODEL
| DCM 300 | |
|---|---|
| Digital In Channels | n/a |
| Analog In Channels | 8 |
| Screen Channel Support | 3 |
| Screen channel Operation | Passive, bi-, tri-, or quad-amp |
| Intrinsic Correction DSP | yes |
| Sub Output Channels (max) | 4 to 8 |
