Scaling Q-SYS to more spaces
Quickly deploy at scale across your
collaboration spaces.
The Q-SYS RoomSuite Modular System enables fast, standardized setup for medium to large collaboration spaces. Designed to work with leading UC platforms and BYOM functionality, it offers a web-based workflow for efficient design, commissioning, and deployment, supported by unified cloud management and remote monitoring through Q-SYS Reflect.
Simplified Hardware, Customizable for your Room

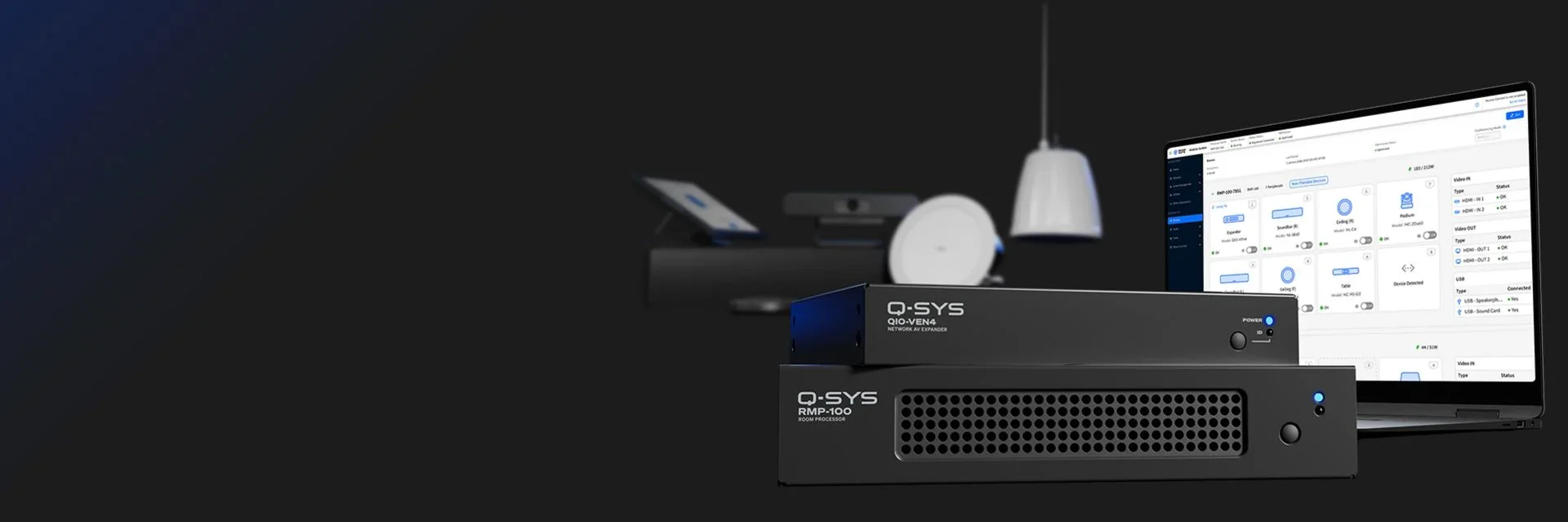

The Q-SYS RoomSuite Modular System’s RMP-100 processor and QIO-VEN4 expander deliver an integrated hardware foundation for audio processing, room control, and system connectivity.
Simplified Configuration (not programming)
Using a streamlined, web-based workflow, the Q-SYS RoomSuite Modular System accelerates deployment and commissioning through no-code configuration.
Everything You Want In One Place
Whether you are positioning your cameras, setting audio levels, or managing room settings, access the essential configuration tools through one streamlined interface.
Simplified System Management
By integrating Q-SYS Reflect Plus, remotely monitor and manage compatible Q-SYS systems from one central location.
Choose from a portfolio of networked collaboration endpoints to accommodate the needs of your space.
SYSTEM COMPONENTS
| Model | RMP-100 Processor |
|---|---|
| Ethernet ports | |
| AV LAN Ethernet ports | 7x 1 Gbps ports, PoE+ output |
| Expander Ethernet port | 1x 1 Gbps port, PoE++ output (IEEE 802.3bt Type 4) |
| External Ethernet ports | 2x Auxiliary ports (No PoE power) |
| PoE power budget | 212 W total, all ports (IEEE 802.3bt Type 4) |
| Video I/O | |
| HDMI 2.0 inputs |
1x HDMI (BYOM: 4K60 capable with audio; ZR/MTR compatibility
mode: 1080p60 capable with audio) 4:4:4
1x HDMI (BYOM: 4K60 capable with no audio; ZR/MTR compatibility mode: 1080p60 capable with no audio) 4:4:4 |
| HDMI 2.0 outputs | 2x HDMI (BYOM: 4K60 capable; ZR/MTR compatibility mode: 1080p60 capable) 4:4:4 |
| Scaler | None. Input source must match the output. |
| Color formats | Determined by source. |
| Control | |
| RS-232 | 2 ports for display control |
| GPIO | 1 input (occupancy sensor connectivity, +24 V / 50 mA) |
| CEC | Supported on HDMI video outputs |
| USB | |
| USB |
1x USB-C port 1x USB-A (not supported) |
| Controls & indicators | |
| Front |
Power LED ID Button and indicator |
| RF antenna | Not supported |
| Power supply | |
| Included 54 V DC Power Supply | 100 - 240 VAC, ~50 / 60 Hz, 4A Max |
| Physical | |
| Product dimensions (L × W × H) | 10.5 × 8.6 × 8.7 in (266 × 217 mm × 220 mm) |
| Product weight | 4.30 lbs (1.95 kg) |
| Shipping carton dimensions (L × W × H) | 19.1 × 13.6 × 3.5 in (485 × 345 × 89 mm) |
| Included accessories |
Surface mounting accessories 54 V DC Power Supply 1x AC mains power cords (country specific) I/O connector Regulatory and safety pamphlet Warranty statement |
| Environmental & safety | |
| Storage temperature range | -4° to 158° F (-20° to 70° C) |
| Storage humidity range | 5% to 85% |
| Operating temperature range | 32° to 104° F (0° to 40° C) |
| Operating humidity range | 5% - 85% |
| Thermal dissipation (excluding POE Loads) | 69 BTU / hour (20 W) |
| Power consumption (including POE loads) | 200 W typical, 245 W maximum |
| Battery chemistry | Lithium Carbon Monofluoride |
