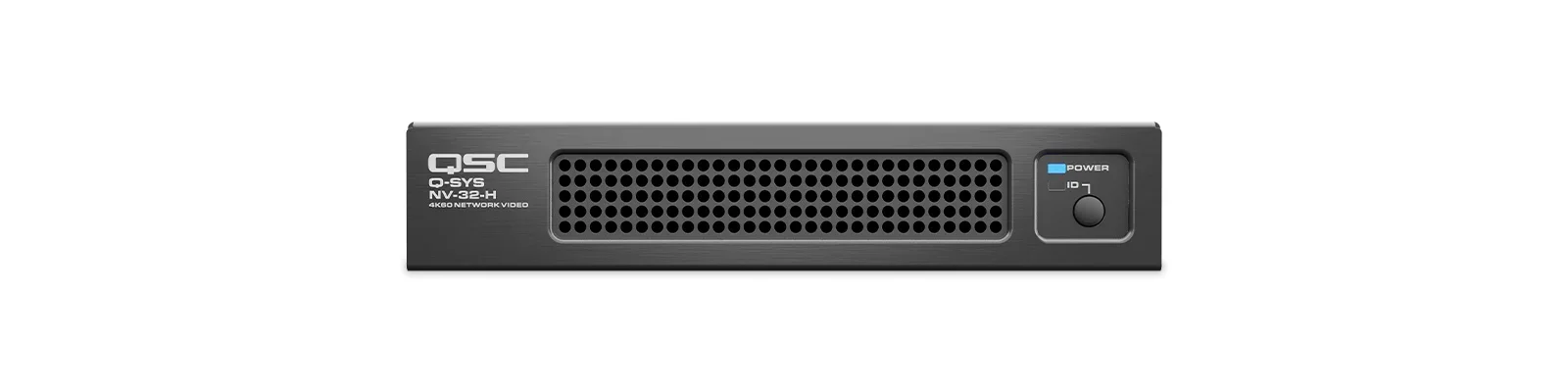

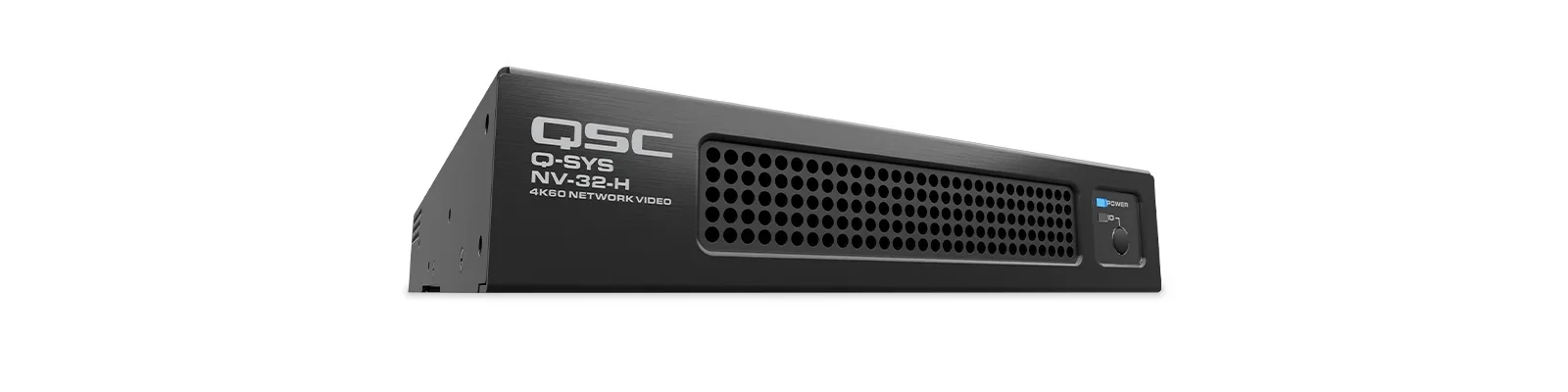

NV-32-H (Core Capable)
Q-SYS Network Video Endpoint
The NV-32-H (Core Capable) is a multipurpose, software-configurable video endpoint native to the Q-SYS Platform, offering two distinct operating modes to choose between, based on the needs of the application. ‘Core Mode’ transforms the device into a fully integrated Q-SYS processor with local HDMI switching capabilities. ‘Peripheral Mode’ allows multi-stream video encoding or decoding for network-based HDMI video distribution. Like all Q-SYS devices, the NV-32-H (Core Capable) offers native integration and control driven by the Q-SYS OS, simplifying setup and configuration while eliminating the need for advanced programming knowledge. With its Q-SYS Platform integration, you’re able to receive cryptographically-signed firmware updates, ensuring secure updates in functionality and security to your entire system.
Features & Benefits
Core Mode
True Q-SYS processing and I/O capabilities
Complete audio processing for the Q-SYS Platform. Includes 32x32 network audio channels, eight software-based acoustic echo cancelation (AEC) channels and onboard audio via HDMI, USB and 3.5mm connections.Integrated video capabilities
Core Mode enables an onboard 3x2 HDMI video switcher, allowing in-room users to share content from their laptops or other devices easily. The Core Mode Video Streaming feature license enables encoding or decoding via Q-SYS Shift™ or via Mediacast mode to allow for use in the same design along NVM Series encoders and decoders.Integrated AV Bridging
Seamlessly connect Q-SYS network camera and audio feeds via a driverless USB connection into all major UC&C conferencing applications, including Microsoft Teams, Zoom and Google Meet.
Peripheral Mode
Native video distribution for the Q-SYS Platform
Native HDMI audio and video distribution without additional control processors or complicated programming.Flexible for a broad range of spaces
Q-SYS Shift® video codec dynamically adjusts network bandwidth based on video content, delivering the right balance of quality, latency and network efficiency for meeting room video applications. Optional Mediacast mode allows for use in the same design along NVM Series encoders and decoders, supporting video formats up to 1080p30 4:2:0.Integrated AV Bridging
Seamlessly connect Q-SYS network camera and audio feeds via a driverless USB connection into all major UC&C conferencing applications, including Microsoft Teams, Zoom and Google Meet.

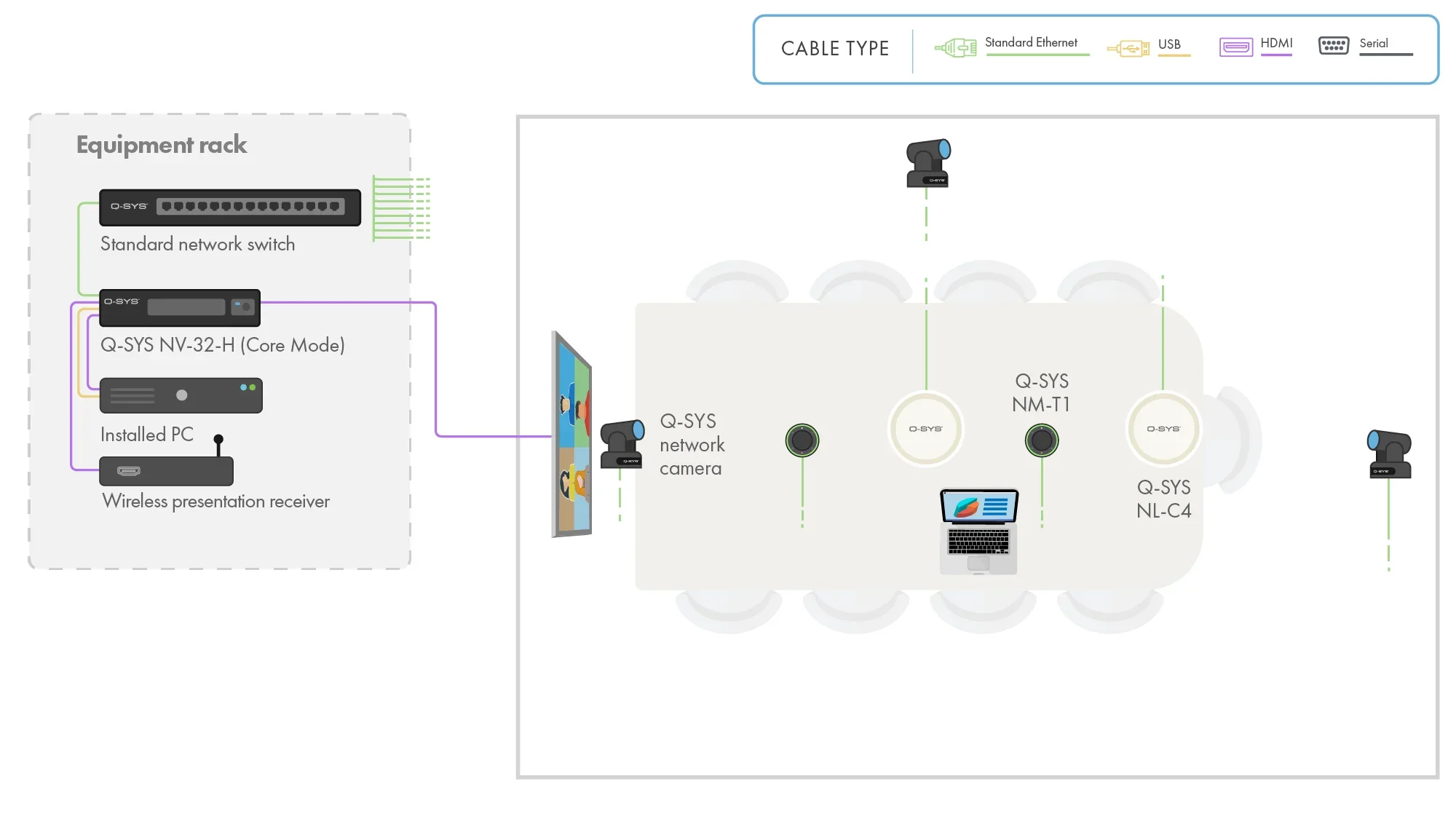

Meeting Room

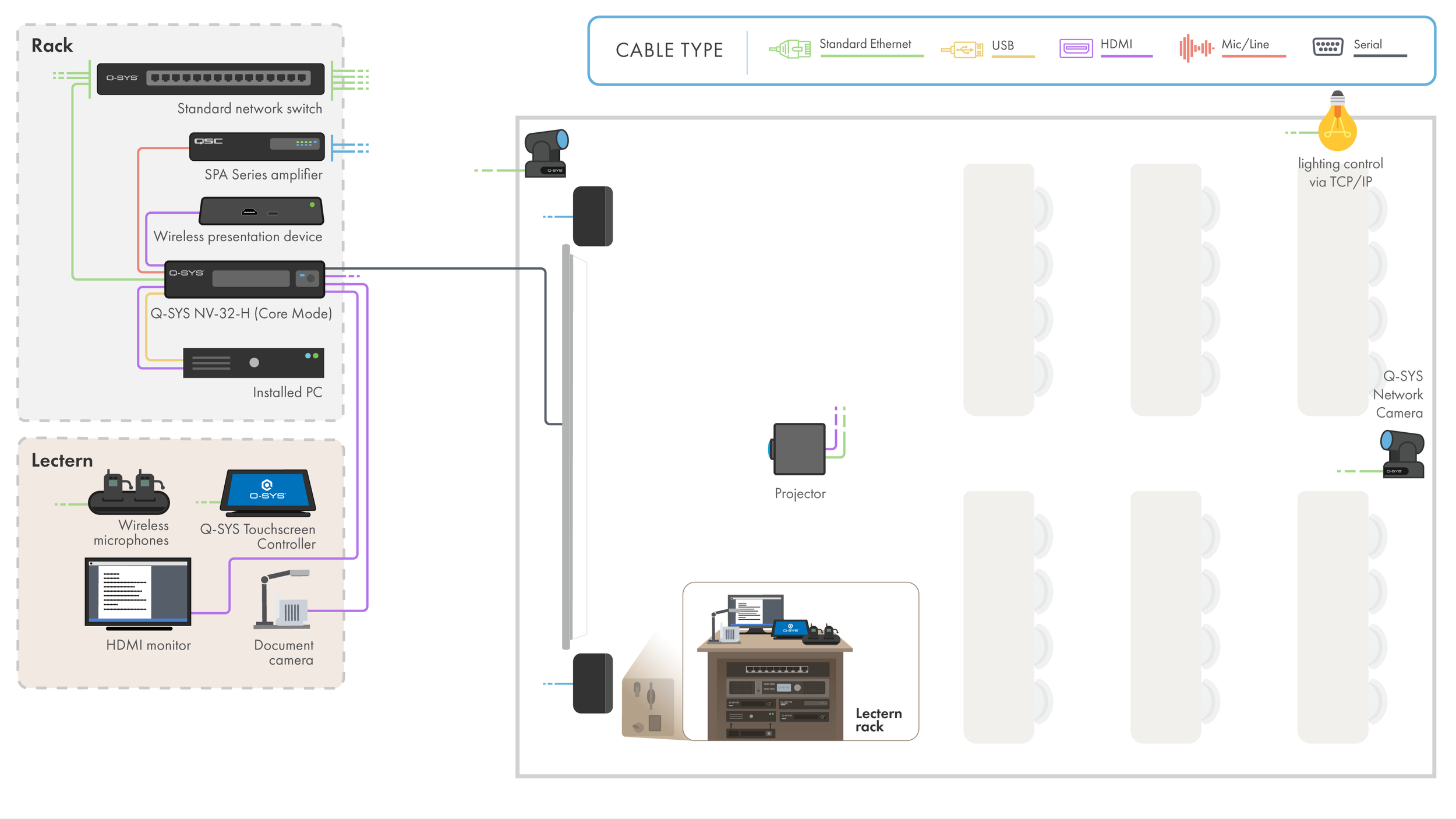

Small Classroom

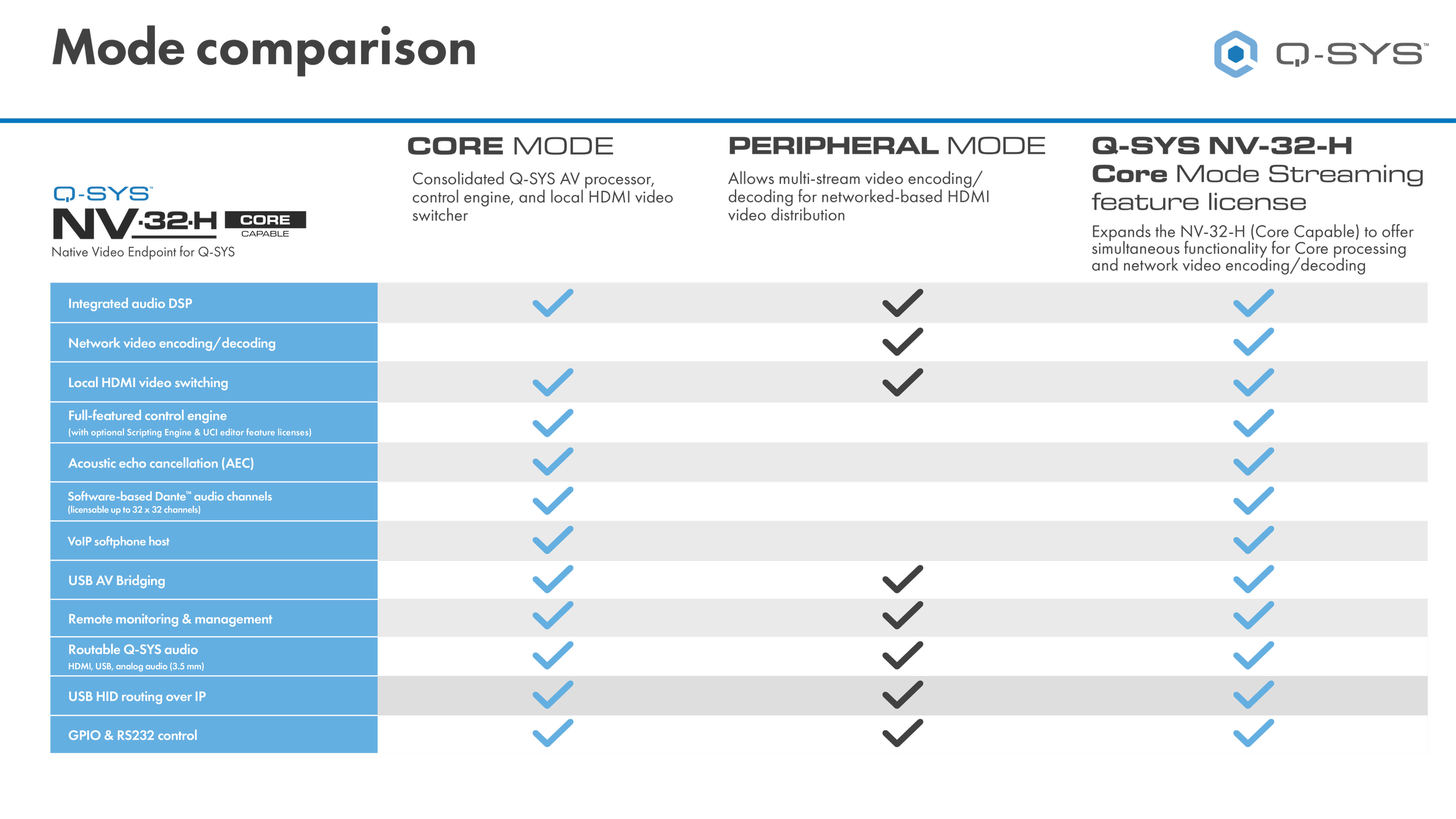

Mode Comparison
Technical Specifications
-
Channel Capacity (Core Mode only)
Total network I/O channels: 64 × 32
Total network I/O streams: 32 × 16
Dante Channels: Licensable up to 32 × 32 (none included)
AEC processors: 8
VoIP instances: 1
Audio recording / playback: 4 ch recording / 16 ch playback
Q-SYS NM-T1 capacity: 3
Encoding or Decoding (Peripheral Mode only)
Supported video codecs:
Q-SYS Shift™: Up to 4K60 4:4:4
Mediacast: Up to 1080p30 4:2:0
Bitrates: 10 Mbps – 800 Mbps
Content protection: HDCP 2.2 compliant, AES-128 encryption for all audio and video signals between encoders and decoders
Audio I/O
HDMI inputs: 8-channel PCM audio, Q-SYS routable
HDMI outputs: 8-channel PCM audio, Q-SYS routable
Analog input: 3.5 mm unbalanced stereo mic/line input, Q-SYS routable
Analog output: 3.5 mm unbalanced stereo line output, Q-SYS routable
Video I/O
HDMI 2.0 inputs: 3× HDMI capable of receiving source input video formats up to 4K60 4:4:4
HDMI 2.0 outputs: 2× HDMI capable of scaling and outputting video formats up to 4K60 4:4:4
Scaler: Each HDMI output features a robust 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions

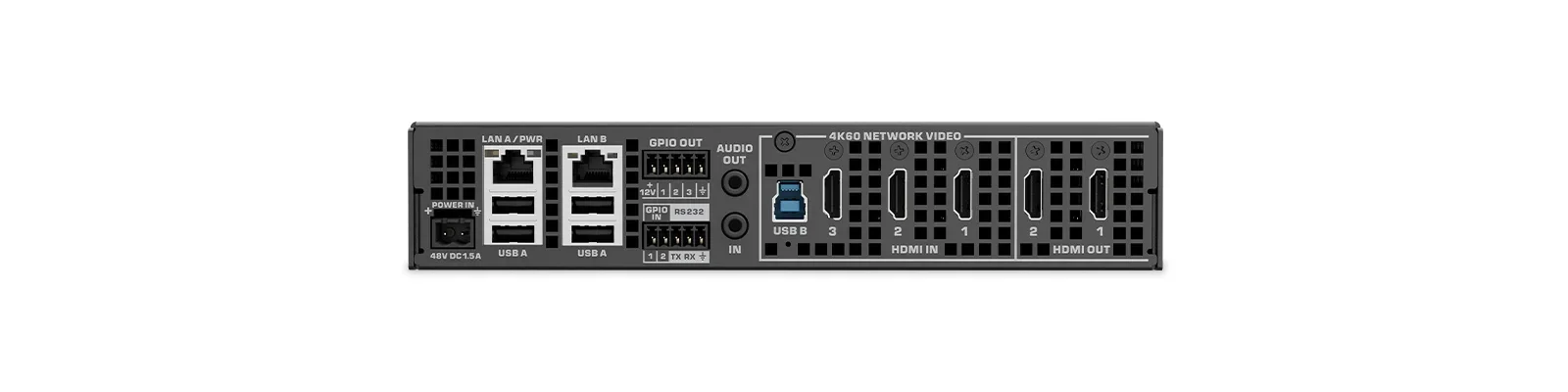

Connectors
RS-232: Three-pin Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable
GPIO: Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable
LAN A: Gigabit LAN connection for interfacing with Q-LAN. PoE 802.3bt Type 4 for power.
LAN B: Redundant connection for audio & control traffic (Core Mode only)
Audio input:
Signal to Noise: 90 dBFS
THD+N: 0.0009% @ 0 dB
Audio output:
Signal to Noise: 90 dBFS
THD+N: 0.0167% @ 0 dB
Power
Power over Ethernet specification/wattage: Conforms to IEEE 802.3bt Type 4
Physical power supply info: 48 V DC Nominal, 1.5 A on 2-pin Euro connector
Aux power supply accessory: 90 W PoE injector (POE-90W-PSU) sold separately
Environmental
Ambient operating temperature range: 0–50° C
Humidity: 5 to 85% non-condensing
Storage temperature: -20 to 70° C
General
Dimensions:
8.66 in × 11.28 in × 1.72 in
220 mm × 286.6 mm × 43.6 mm
Weight: 4.0 lb (1.81 kg)
Regulatory compliance: CE, FCC Part 15 Class B, RoHS
Mounting options
Surface-mountable, table or wall-mount
All mounting hardware is included
Battery chemistry (embedded, non-accessible): Lithium Carbon Monofluoride
