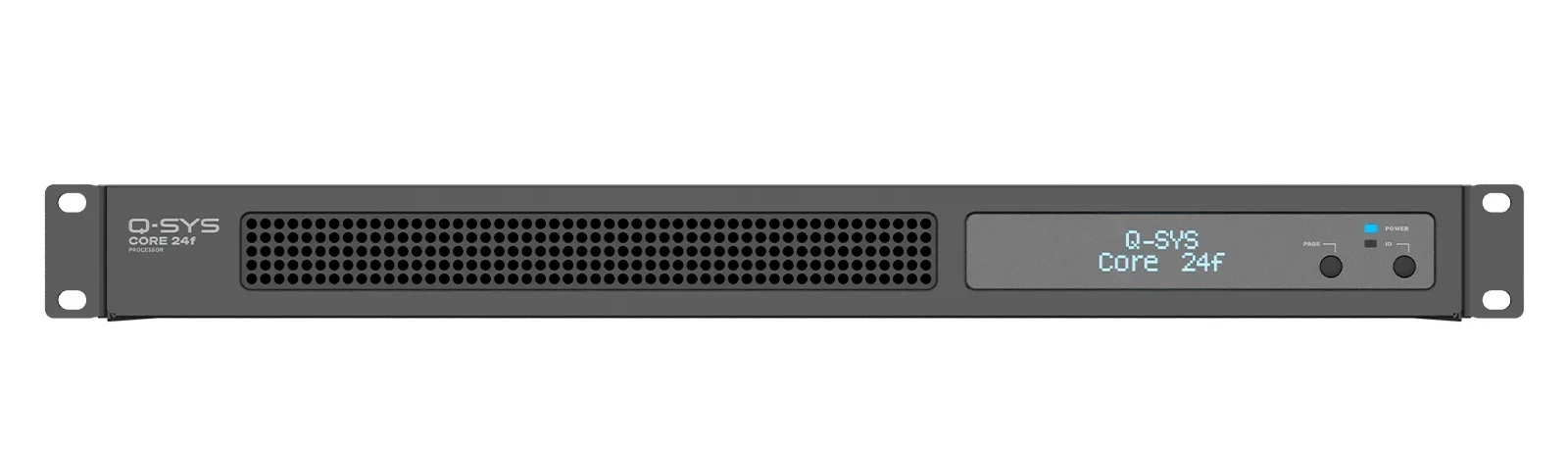

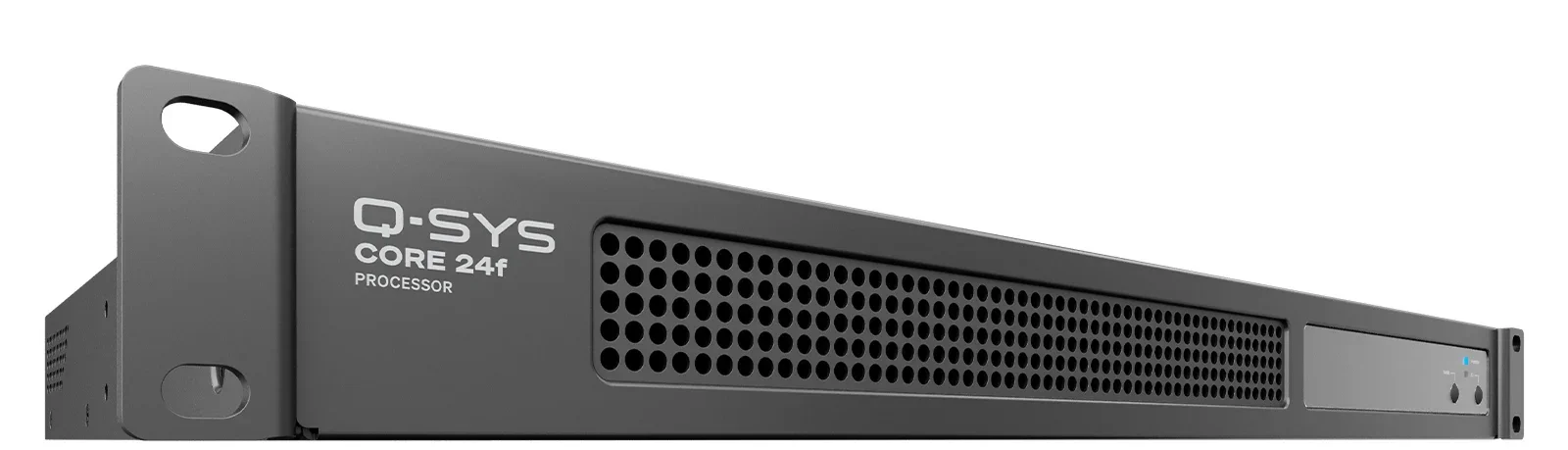

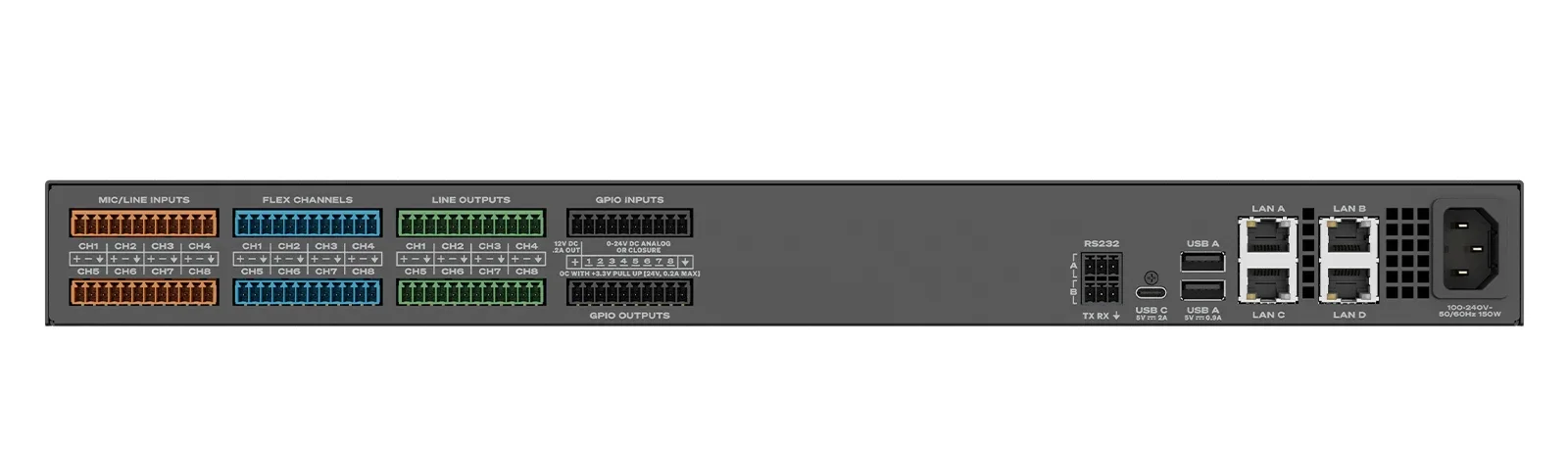

Core 24f
Q-SYS network + analog I/O processor
The Q-SYS Core 24f ushers in the next-generation of Q-SYS processing capabilities, delivering a fully integrated audio, video, and control solution that enables a blank canvas to deliver unique experiences across a broad range of application types. Combining the convenience of ample onboard I/O with robust processing and network I/O capacity, the Core 24f can serve a broad range of corporate, higher education, entertainment and hospitality applications requiring in-room processing.
Features & Benefits
Up to 160 x 160 network I/O channels
24 channels of analog I/O, including 8 software-definable Flex channels
8 x 8 GPIO to integrate third-party device control connectivity
Includes 8 x 8 Software-based Dante channels (licensable up to 64 x 64)
24x AEC channels @ 200 ms
Integrated AV bridging via USB-C
Two (2) 2.5 Gbps Ethernet ports for redundant networked audio (QLAN, AES67, VoIP, WAN, Media Streaming, etc.)
Two (2) 2.5 Gbps independent, auxiliary Ethernet ports
Supports up to ten (10) Q-SYS NM-T1 tabletop microphones
Host up to 8 instances of a VoIP softphone
Includes OLED front display
1RU form factor
The Right Capabilities for Demanding Applications
As the evolutionary successor to the Q-SYS Core 110f, the Core 24f expands on the foundation set by the industry’s first truly integrated audio, video, and control processor, offering a significant increase in processing power and updated I/O to meet the performance needs of modern AV environments. It features 24x onboard audio channels, integrated AV bridging via USB-C, GPIO and RS232 control connectivity and 4x network ports for a variety of applications requiring in-room processing.
Q-SYS Control is intrinsic to Q-SYS
The Core 24f processor leverages the full capabilities of the Q-SYS control engine without the need for feature licenses. This allows you to design and deliver a user control & automation experience tailor-made for each unique space, with a set of tools that match any programming comfort level on a single, scalable platform.
Integrated audio, video and control
The Core 24f processor is driven by the Q-SYS Full Stack AV Platform, which unifies data, devices and a cloud-first open architecture to deliver a fully integrated audio, video and control solution that offers simpler integration and software-based scalability.
Application Diagram

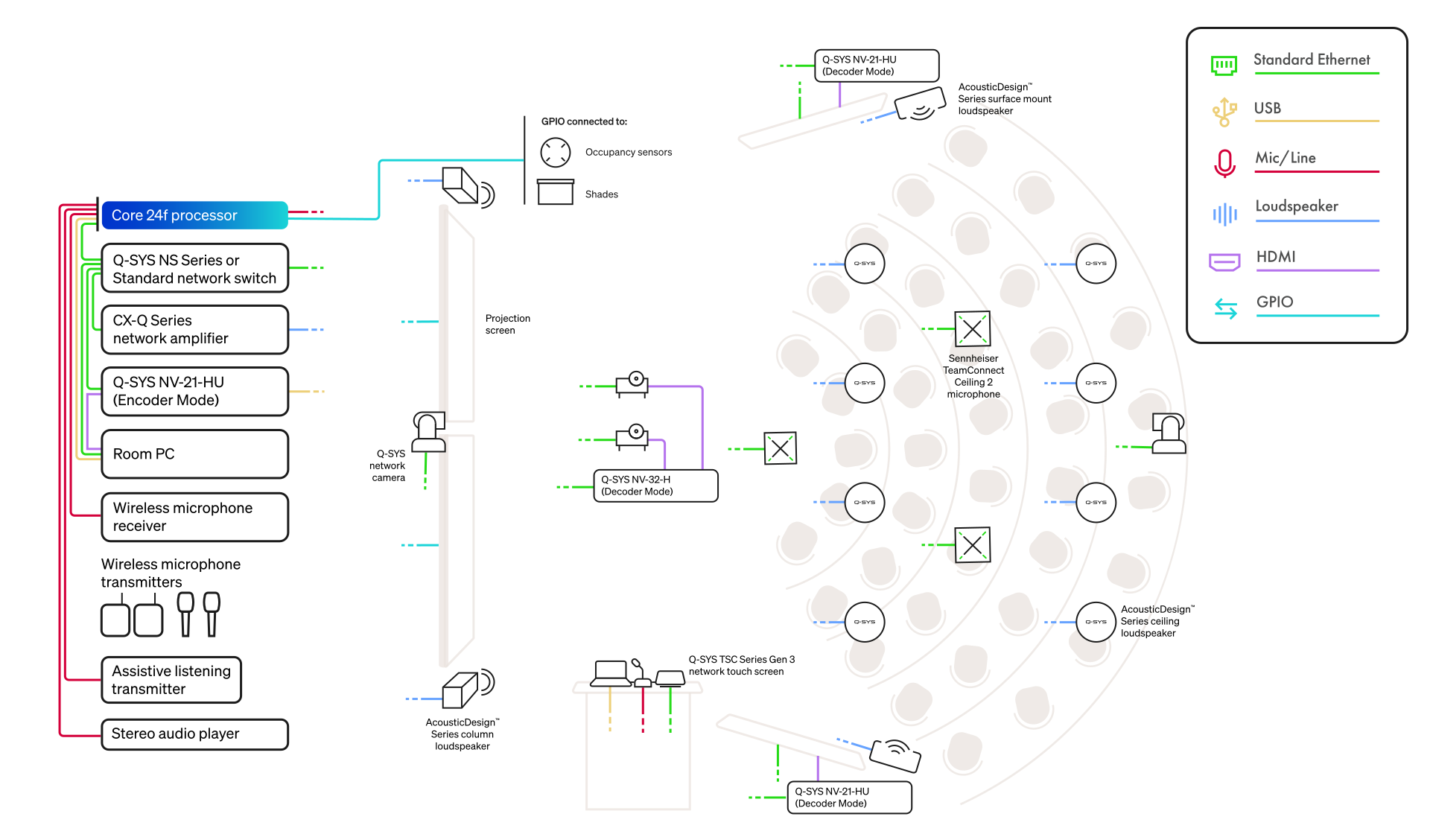

Lecture Hall
Application Diagram
All Hands / Training Room
Application Diagram
Divisible Space
Technical Specifications
-
Processing
Processor: Intel 64-bit architecture
Audio processing: 32-bit floating point
Q-LAN network audio transport: 32-bit floating point
Q-SYS Capacities
Total network I/O channels: 160 × 160
Total network I/O streams: 80 × 80
Analog I/O: 24x (8x mic/line in, 8x line out, 8x Flex)
Dante channels: 8 × 8 included (up to 64 × 64 with Software-based Dante feature license)
AEC channels: 24
Q-SYS NM-T1 capacity: 10
WAN / media streaming channels: 36 × 36
Network peripherals: Up to 96 (including native Q-SYS cameras, I/O, NV, TSCs, paging stations, extensions and plugins with their "Is Managed" property set to "Yes". It does not include streaming I/O, loudspeakers, scripts or plugins with their "Is Managed" property set to "No").
VoIP softphones: 8
Audio recording / playback: 4 channels recording / 16 channels playback, [expandable up to 64 channels playback with optional multi track playback license (SLMTP-32) stackable up to 2x]
Media drive capacity: 128 GB (at least 100 GB available for user media, or at least 200 hours of uncompressed 48kHz, 24 bit, mono WAV format audio files)
Control
RS232: 2 ports
GPIO: 8 × 8
Controls and Indicators
Front
Power LED
2×20 character OLED display
PAGE button provides navigation between screens on the front display (forward direction only)
ID button and indicator (blinks when enabled from Q-SYS Designer Software)
USB Inputs & Outputs
USB: 2x USB-A and 1x USB-C port
AV bridging: Via USB-C
USB HID routing: Via USB-C
USB audio device hosting: Support for standard USB headset, speakerphone on USB-C connection (3 devices max at a time, each having up to 8×8 USB audio channels, up to 16×16 total channels)
USB-C (Audio bridging)
Bit depth: 16 bit
Channel count: 16 × 16
Sample rate: 48 kHz
USB-A Input
Sample rate: 48 kHz or 16 kHz, mono
Resolution: 8-bit, 16-bit, 24-bit or 32-bit, float
Format: Little-endian, signed or unsigned
USB-A Output
Sample rate: 48 kHz only, stereo
Resolution: 8-bit, 16-bit, 24-bit or 32-bit, float
Format: Little-endian, signed or unsigned
Physical
Product dimensions (L × W × H): 19.0 × 12.2 × 1.7 in (482.6 × 310.9 × 43.6 mm)
Product weight: 12.0 lb (5.44 kg)
Shipping carton dimensions (L × W × H): 22.4 × 16.1 × 4.65 in (569 × 410 × 118 mm)
Shipping weight: 12.3 lb (5.58 kg)
Included accessories:
Regulatory statements pamphlet
1x AC mains power cords
I/O connector kit
Removable rack ears
Warranty statement
Environmental & Safety
Power consumption: 60 W typical, 150 W maximum
Line voltage: 100–240 VAC, ~50/60 Hz
Operating temperature range: 0°C to +50°C
Storage temperature: -20°C to +70°C
BTU/hour: 136 BTU/Hr
Humidity: 5% to 85%
Regulatory
FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1
Battery chemistry (embedded, non-accessible): Lithium manganese dioxide
