PL Series
Performance Loudspeakers for Q-SYS
Features & Benefits

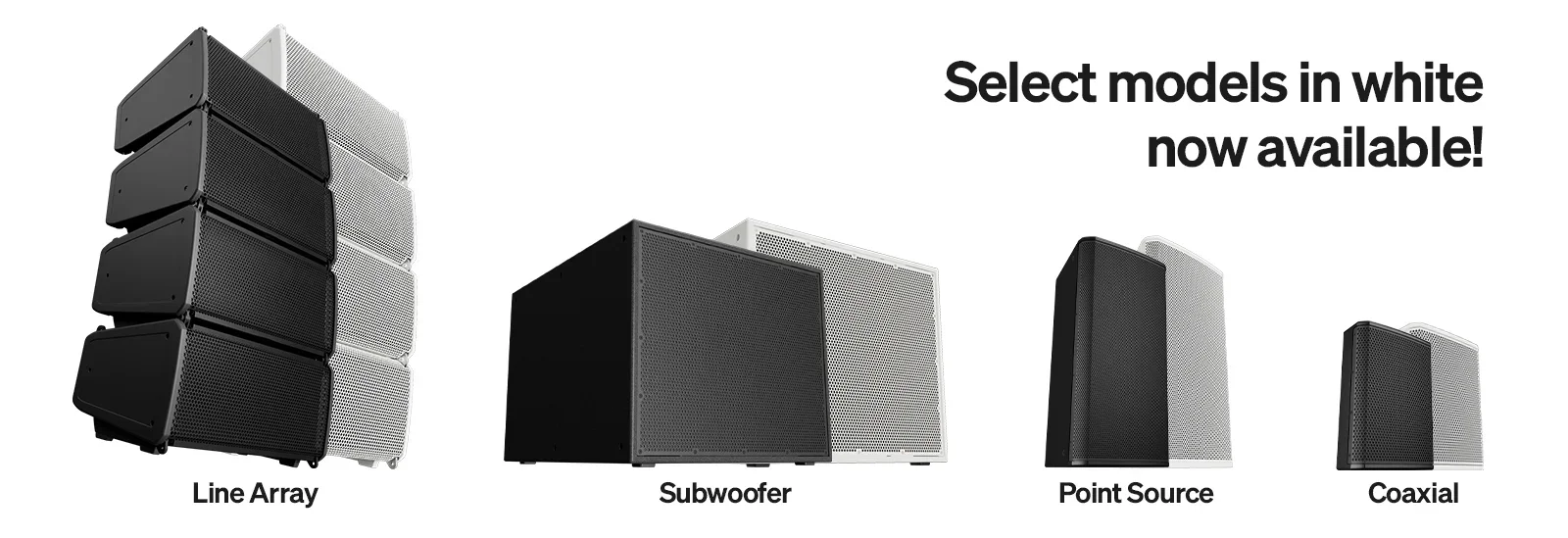

The Q-SYS PL Series is a portfolio of performance installation loudspeakers designed to deliver premium sound for Q-SYS systems in a broader range of applications including entertainment, corporate, or higher education. From auditoriums and restaurants to nightclubs and sporting venues, PL Series offers multiple form factors, allowing you to design the optimal audio experience for each unique space. Pair a rich legacy of high-performance audio with the power and flexibility of Q-SYS to extend an integrated audio, video, and control experience to your Front-of-House applications.
Deliver the Right System for your Customers
Q-SYS PL Series loudspeakers provide an abundance of options to ensure the right solution anywhere in the venue that requires high performance audio. Each model features a weatherized enclosure (IP54) making them the perfect choice for indoor or protected outdoor applications.
Full Control and Monitoring for Entertainment Venues
The Q-SYS Platform offers a full-featured control engine that lets you deploy the right level of intuitive user control and system visibility for each stakeholder in the venue, while Q-SYS Reflect lets you remotely monitor and manage the integrity of your system from anywhere.
Seamless Q-SYS Experience
PL Series performance loudspeakers are part of a comprehensive Q-SYS system portfolio that delivers a holistic audio, video and control experience for the entire venue, from auditoriums or lecture halls to performing arts or sporting venues.
SELECT A MODEL
| PL-LA8 | PL-LA12 | |
|---|---|---|
| Enclosure Configuration: | Bass Reflex, two-way passive/bi-amp line array loudspeaker | |
| Transducers: |
LF: 8 in (200 mm), 2 in (50 mm) voice coil, neodymium magnet HF: Compression driver, 1.75 in (44 mm) voice coil |
LF: 12 in (320 mm), 2.5 in (64 mm) voice coil, neodymium magnet HF: 2x compression driver, 1.75 in (44 mm) voice coil |
| Coverage (horizontal x vertical): | 100° x 15° | 90° x 15° |
| System bandwidth (-10 dB with EQ) | 61 Hz-20 kHz (no subwoofer) | 53 Hz-20 kHz (no subwoofer) |
| System Sensitivity | 101.2 dB @ 1W/1m | 102.3 dB @ 1W/1m |
| Max SPL* (continuous) | 126 dB | 129 dB |
| System Power Rating | 46 Vrms, continuous 250 W @ 8 Ω | 49 Vrms, continuous 300 W @ 8 Ω |
| Connectors |
2x Speakon NL4 (cable connector not provided) 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles |
|
| Recommended Amplifiers |
Q-SYS CX-Q Series 4ch network amplifiers up to four (4) loudspeakers per channel on CX-Q 8K4 up to two (2) loudspeakers per channel on CX-Q 4K4 |
|
| Rigging angles | 0.5, 1.5, 3, 4.5, 6, 8, 10, 12 | |
| Enclosure Material: | Impact-resistant ABS | |
| Enclosure Color: | Black (RAL 9011) or White (RAL 9003) | |
| Weatherization |
IP54 Stainless screws UV and Corrosion treated grille Aluminum Rigging Hydrophobic Stainless Steel Mesh behind grille Input cup (IP65) sealing with gland |
|
| Dimensions | 10.7 × 20.1 × 13.7 in (272 × 512 × 349 mm) | 15.4 × 24.4 × 15.8 in (392 × 620 × 381 mm) |
| Weight | 30 lb (13.5 kg) | 47 lbs (21.5 kg) |
