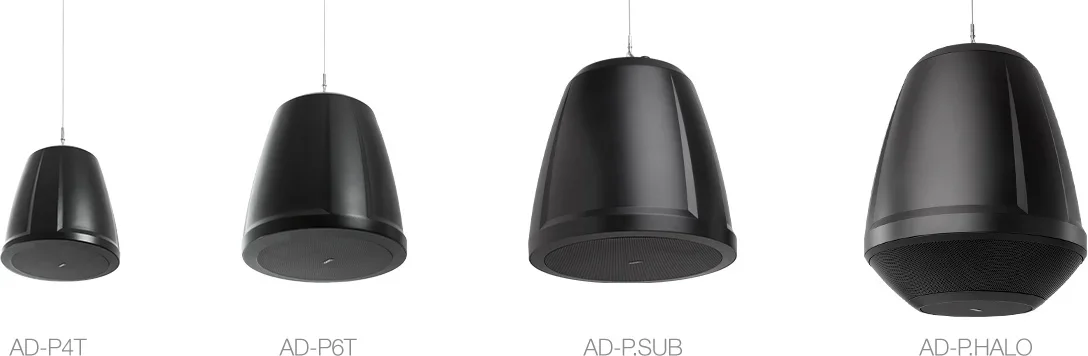

AcousticDesign Series (Premium)
Features & Benefits
AcousticDesign™ Series pendant-mount loudspeakers are two-way loudspeakers ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70 / 100 V or 16 Ω bypass configurations.
The AcousticDesign™ Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant applications, the AcousticDesign™ Series allows integrators seamless transitions within blended installations.
SELECT A MODEL
| AD-P4T | AD-P6T | |
|---|---|---|
| Systems Type | 2-way | 2-way |
| Frequency range, -10dB(Hz) |
65 - 20k Hz | 55 – 20k Hz |
| Nominal Coverage | 150° conical DMT | 135° conical DMT |
| Output (Peak SPL@1M) | 108 dB | 112 dB |
| Rated noise power1 |
30 | 60 |
| Sensitivity2 | 87.9 | 88 |
| LF Driver | 4.5 in (114 mm) | 6.5 in (165 mm) |
| HF Driver | 0.75 in (19 mm) | 0.75 in (19 mm) |
| Transformer Taps |
70 V : 30, 15, 7.5, 3.75 W and 16 Ω bypass 100 V : 30, 15, 7.5 W and 16 Ω bypass |
70 V : 60, 30, 15, 7.5 W and 16 Ω bypass 100 V : 60, 30, 15 W and 16 Ω bypass |
| Input Connectors | Euroblock connector with parallel output terminals | |
| Dimensions (H x W x D) in | 9.3 × 10.7 in | 11.3 × 12.7 in |
| Dimensions (H x W x D) mm |
237 × 272 mm | 287 × 323 mm |
| Net Weight | 6.5 lb (2.9 kg) | 9 lb (4.1 kg) |
