SDCA Series (Discontinued)

Features & Benefits

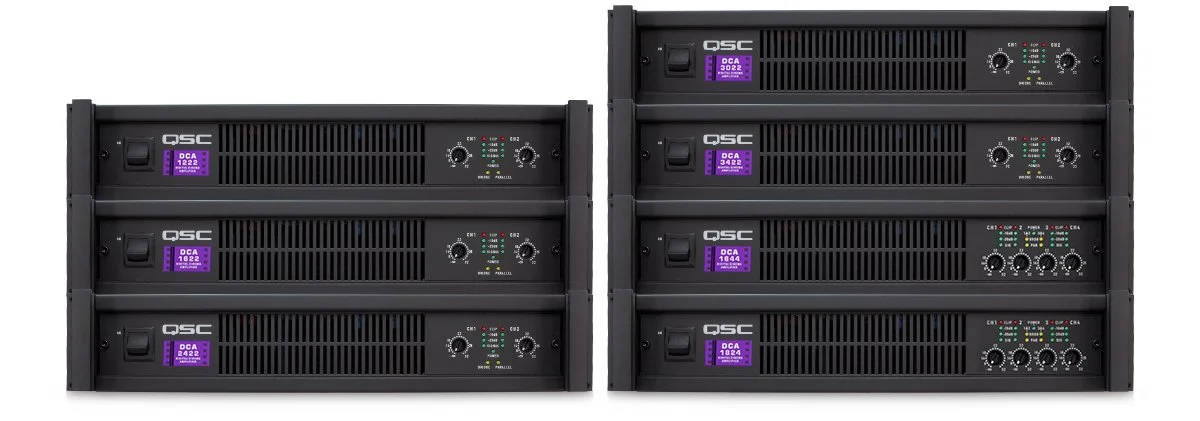

Crystal-clear, breathtaking, seat-shaking cinema sound is here with our DCA Series Digital Cinema Amplifiers. These THX approved amplifiers offer superior performance and features designed specifically for the cinema market. All DCA amplifiers feature PowerLight™ switch mode power supply technology and DataPorts for integration with DCP Cinema Processors, or DCM Cinema Monitors.

Five 2-channel and two 4-channel models offer power points from 200 to 1700 watts per channel in a two rack, 21 pound amplifier. With PowerLight® switching technology you'll hear ultra-powerful bass and superior highs in every scene.

Built on a rugged tour-grade chassis, DCA 2-channel and 4-channel amps deliver heavyweight power in a light 2RU package. All models are equipped with our innovative DataPort interface, which facilitates a fast hook-up, enables control and monitoring via Q-SYS, and supports a range of useful accessories.
All are safeguarded by protective circuitry that keeps them going strong over the long haul.
Using a standard VGA-style connector that simplifies wiring and speeds up installation, the DCA DataPort interface provides single-cable integration with DCP, DXP, DCM and Q-SYS. Creating a smart, centrally controlled system that goes beyond simple audio connections, DataPort enables DSP crossovers, speaker-specific EQ, and monitoring and control of amplifier and loudspeaker functions.

A single DataPort connection includes two channels of audio, output voltage monitoring (VMON), current monitoring (IMON), clip/protect monitoring, and thermal monitoring. DataPort also enables AC standby control and provides a 15 volt DC power supply for rear-panel accessories.

With PowerLight technology, DCA amplifiers take your soundtracks to a whole new level. Not only does it give your music bigger bass and cleaner highs, PowerLight also cuts wasted heat and boosts reliability.
PowerLight is a switching power supply that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second through an ultra-low impedance circuit. This Ultra-fast charging of supply rails results in tighter bass and clean, transparent highs. So, unlike high-powered amps with conventional supplies, the audio signal is never starved prematurely, but remains crisp and clean. It virtually eliminates hum and greatly reduces noise, providing a vast dynamic range that can handle the most demanding digital soundtracks without running out of headroom.
DCA Series amps also boast a set of useful features such as:
• Individually selectable clip limiters and subsonic filters
• Stereo, parallel, and bridged mono operation
• Extensive protection circuitry guarding against failures such as DC, infrasonic, thermal overload, and short circuits.
• Active Inrush Limiting allowing the amps to be turned on and off safely without expensive AC power sequencers

SELECT A MODEL




          DCA 1222
          DCA 1622
          DCA 2422
          DCA 3022
          DCA 3422
          DCA 1644
          DCA 1824




          Number Of Channels
          2
          2
          2
          2
          2
          4
          4


          Power per channel (1 kHz, 1% THD):


          8Ω
          215
          350
          475
          625
          800
          250¹
          170¹


          4Ω
          375
          600
          825
          1050
          1250
          400³
          250²


          2Ω
          600
          800
          1200
          1500
          1700
          -
          450
