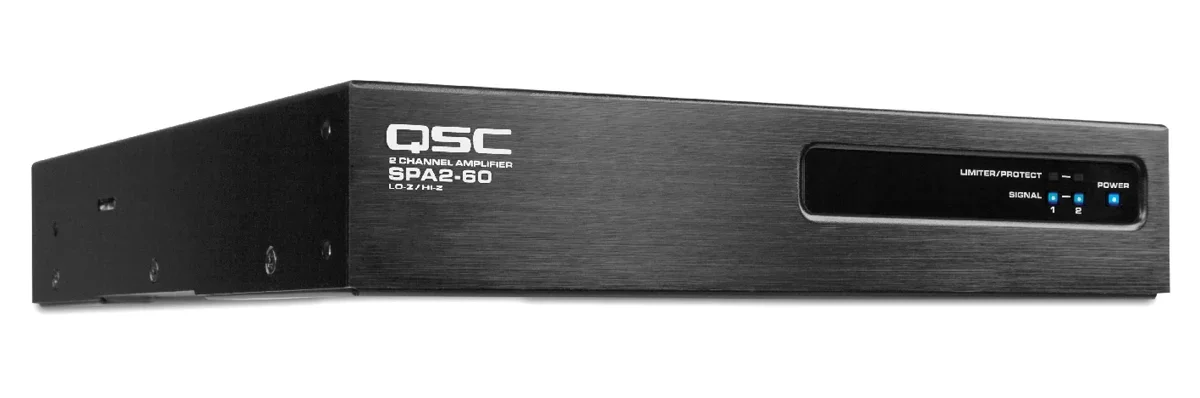

SPA2-60
Power Amplifier
Features & Benefits
Up to 60 watts per channel into 4 and 8 ohms — The outputs of the SPA2-60 and SPA4-60 are designed to provide 60 watts per channel into Low-Z loads
Energy efficient — The SPA2-60 power amplifier employs an efficient class-D design to conserve energy and requires no active cooling, reducing operational costs.
Bridgeable outputs for higher power — Bridging the outputs of the SPA2-60 provides up to 200 watts into low impedance, and up to 250 watts into 70V or 100V providing outstanding flexibility.
Auto-Ramp provides quiet startup and power-down — The Auto-Ramp circuitry ensures quiet and fast power up from Standby and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.
Rack-mountable 1U, half rack width enclosure — The SPA2-60 and SPA4-60 can be mounted in 1/2 RU reducing rack space requirements. In addition their clever joining brackets enable easy under-table and wall-mounting.
Technical Specifications
| SPECIFICATIONS | SPA2-60 | SPA4-60 | SPA2-200 | SPA4-100 |
|---|---|---|---|---|
| Stereo Mode Watts Per Channel | ||||
| 8 Ω dynamic, both channels driven | 60 W | 60 W | 200 W | 100 W |
| 4 Ω dynamic, both channels driven | 60 W | 60 W | 200 W | 100 W |
| Bridged Mode Watts per channel pair | ||||
| 8 Ω & 4 Ω | 200 W | 100 W continuous | 400 W | 200 W |
| 70 V & 100 V | 250 W | 125 W | 350 W | 175 W* |
| Signal to Noise (A weighted, 20 Hz-20 kHz) | >100 dB | >100 dB | >100 dB | >100 dB |
| Input Sensitivity | 1.23 Vrms (+4 dBu) | 1.23 Vrms (+4 dBu) | 1.23 Vrms (+4 dBu) | 1.23 Vrms (+4 dBu) |
| Maximum Voltage Gain | 25.0 dB | 25.0 dB | 25.0 dB | 25.0 dB |
| Output Circuitry | Class D | Class D | Class D | Class D |
| Frequency Response (20 Hz - 20 kHz) | Frequency Response (20 Hz - 20 kHz) | |||
| Input Impedance | >10 kΩ (balanced), >10 kΩ (unbalanced) | |||
| Maximum Input Level | 12.3V (+24 dBu) | |||
| Highpass Filter | Switchable 80 Hz when Bridged in 70V & 100V | |||
| Front Panel Indicators | Power, per channel Signal, per channel Protect/Limit | |||
| Controls | 4Ω/8Ω/70V Bridge Highpass On/100V Bridged Highpass On per channel pair | |||
| Dimensions (HWD) inches | 1.7 × 8.7 × 9.5 / 1RU | |||
| Dimensions (HWD) mm | 43 × 220 × 241 / 1RU | |||
| Weight (Net) | 3.5 lb / 1.6 kg | 3.5 lb / 1.6 kg | 4.0 lb / 1.4 kg | 4.0 lb / 1.4 kg |
| Weight (Shipping) | 6 lb / 2.3 kg | 6 lb / 2.3 kg | 6.5 lb / 2.5 kg | 6.5 lb / 2.5 kg |
| Agency Approvals | UL, CE, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 with PL-Kit | |||
| Carton Contents | Power cable, quick start guide, connector kit, rack mount ears, mounting brackets | |||
