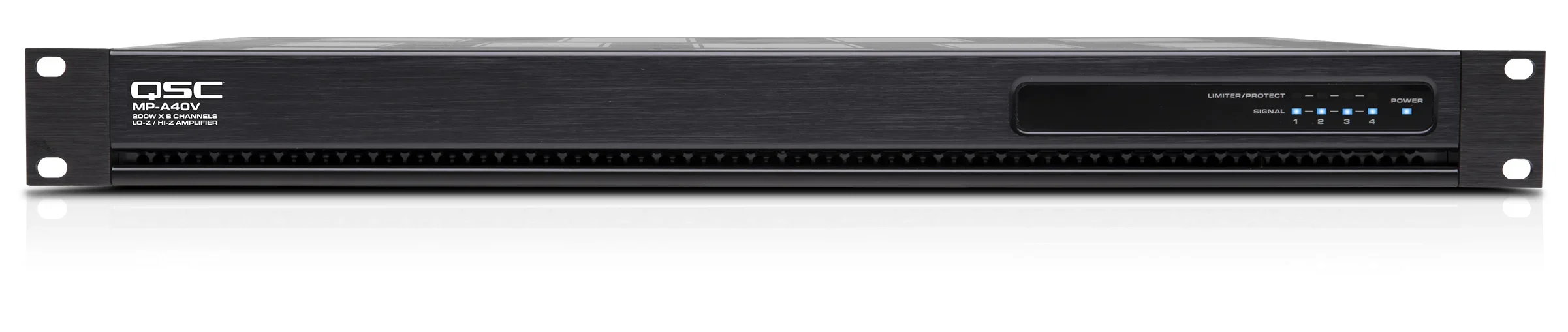

MP-A40V
Multi-Channel Amplifier
Features & Benefits
The MP-A Series music and paging amplifiers build on a 50-year legacy of amplifier dependability and quality. The MP-A Series offers an incredible amount of flexibility for business music and paging applications, while maintaining high efficiency and low total cost of ownership.
FlexAmp Technology allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio
Class-D output circuitry and switchmode power supply for high efficiency and low cost of ownership
1RU amplifier design for rack space savings
Load selector for driving 4 Ω, 8 Ω, 70 V or 100 V on each channel
Selectable 80 Hz highpass filter offered on each channel
Power saving features - Auto-standby (after 28 minutes with seamless auto-ramp when signal returns) and remote standby input
Amp status remote output
Technical Specifications
| Specifications | MP-A20V | MP-A40V | MP-A80V |
|---|---|---|---|
| Channels | 2 | 4 | 8 |
|
Power (all channels driven)
8 Ω
4 Ω
70 V
100 V
|
200 W200 W200 W200 W |
200 W200 W200 W200 W |
200 W200 W200 W200 W |
| FlexAmp Technology | Allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio | ||
| Frequency response at 8 Ω | 20 Hz – 20 kHz +/- 0.5 dB | ||
| Signal to Noise | > 103 dB | ||
| Input sensitivity | 1.23 V (+4 dBu) | ||
| Gain at 8 Ω | 30.0 dB | ||
| Output circuitry | Class D | ||
| Input impedance | >10k, balanced or unbalanced | ||
| Maximum input level | 12.3 V (+24 dBu) | ||
|
Cooling
Type
Operating temperature range
|
Forced air cooling, thermally regulated fan speed, side/rear-to-front airflow
Maximum: -10° - 50° C, recommended: 0° - 35° C, reduced performance above 40° C
|
||
|

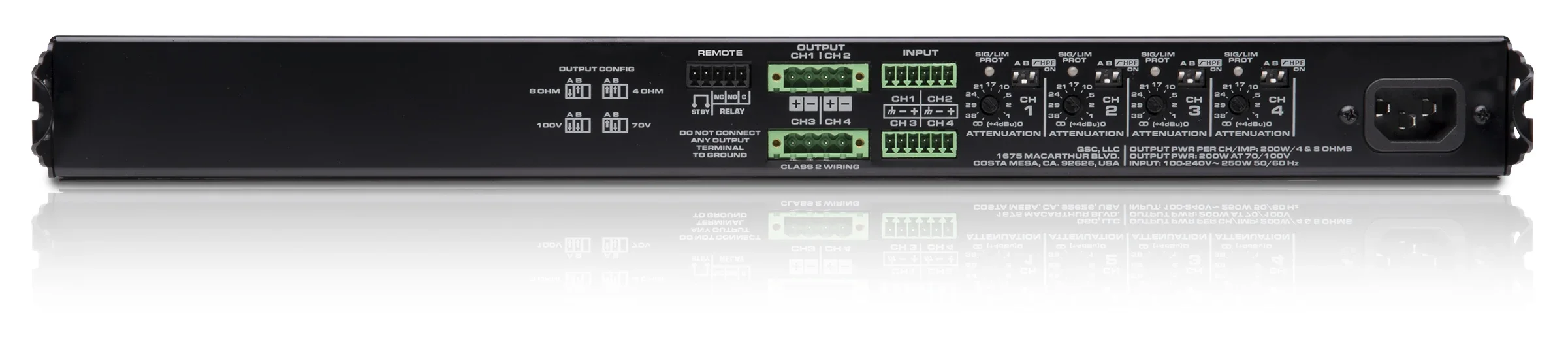

Connectors
Input connectors
Remote connectors
Output connectors
|
Two 3.5mm Euro, 3-pin (green)
One 3.5mm Euro, 5-pin (black)
One 5.0mm Euro, 4-pin (green)
|
Four 3.5mm Euro, 3-pin (green)
One 3.5mm Euro, 5-pin (black)
Two 5.0mm Euro, 4-pin (green)
|
Eight 3.5mm Euro, 3-pin (green)
One 3.5mm Euro, 5-pin (black)
Four 5.0mm Euro, 4-pin (green)
|
| Front panel indicators | Power, signal (per channel), limit / mute / protect (per channel) | ||
| Rear panel indicators | Bi-Color LED signal / limit / mute / protect | ||
| User-configurable operating modes (per channel) | DIP switch selectable, low impedance 4 Ω or 8 Ω, high impedance direct drive 70 V or 100 V |
||
| Remote I/O | Remote standby, amplifier status enunciation on 3.5 mm connectors | ||
| Highpass filter | 80 Hz DIP switch engaged per channel | ||
| Dimensions | 1.75 in x 19 in x 14.8 in (44 mm x 483 mm x 377 mm) | ||
| Net weight | 7.7 lb (3.5 kg) | 9.3 lb (4.2 kg) | 12.8 lb (5.8 kg) |
| Shipping weight | 12.3 lb (5.6 kg) | 13.9 lb (6.3 kg) | 17.4 lb (7.9 kg) |
| Power requirements | Universal power supply (with active power factor correction), 100 – 240 VAC, 50 -60 Hz |
||
| Agency approvals | UL, CE, RoHS/WEEE compliant, FCC class B (conducted and radiated emissions) |
||
| Carton contents | IEC cable, quick start guide, connector pack | ||
