MP-MFC Controller
Wall mount controller for MP-M Series mixers
Features & Benefits
The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.
For use with the MP-M paging and music mixer/processor only
Control zone source selection, zone output level, input level selection and scene recall
Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
Ability to daisy chain up to four MP-MFC controllers
Up to 250 m cable length (CAT5)
Up to eight MP-MFC controllers per MP-M Series mixer

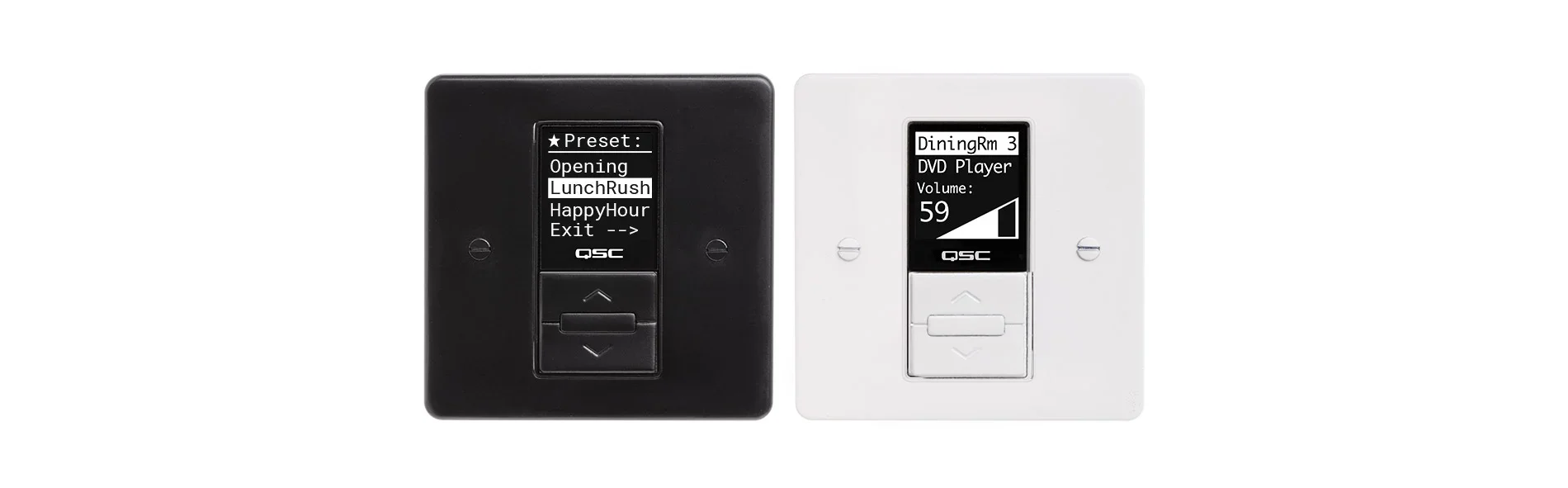

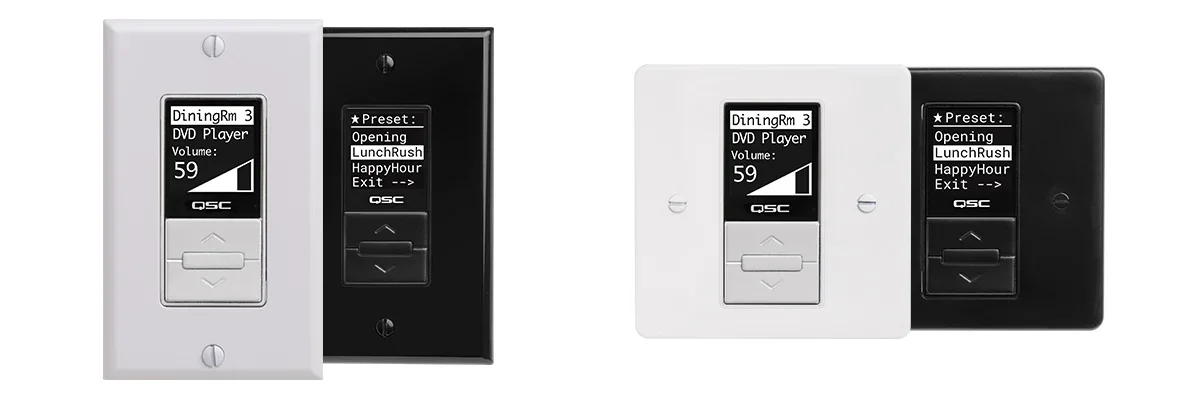

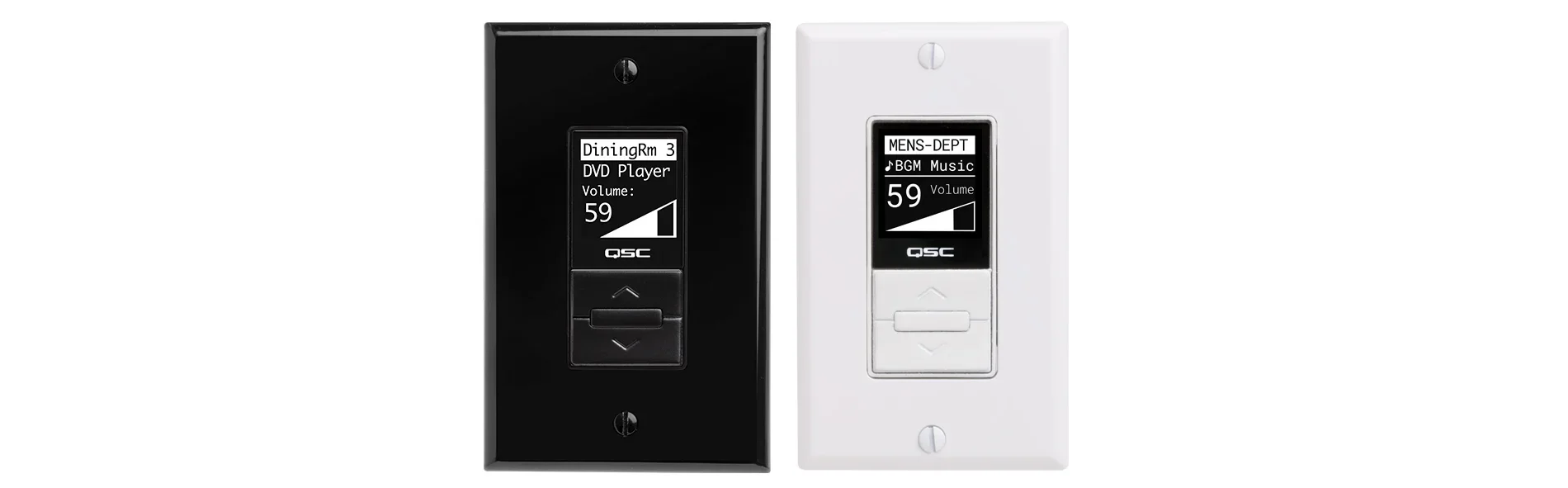

Available in black or white
Available in NA and EU sizes
Technical Specifications
| Model | MP-MFC |
|---|---|
| Controls | Three buttons (increment, decrement, and select) |
| Connectors | 2× RJ45 |
| Display | 128 × 128 pixels, 27 (L) × 26 (W) mm viewing area |
| Available Colors | Black, white |
| Connection Max |
Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length Total: Up to 8 controllers per MP-M Series mixer |
| Versions |
MP-MFC-NA-BK – North American version, black MP-MFC-NA-WH – North American version, white MP-MFC-EU-BK – European version, black MP-MFC-EU-WH – European version, white |
|
Dimensions (H×W×D) North American versions |
114 × 7 × 35 mm 4.5 × 2.75 × 1.4 in |
|
Dimensions (H×W×D) European versions |
89 × 89 × 36 mm 3.5 × 3.5 × 1.4 in |
| Net Weight | All Versions: 0.1 kg / 0.2 lb |
