Q-SYS Scheduling Panel
QSP-11

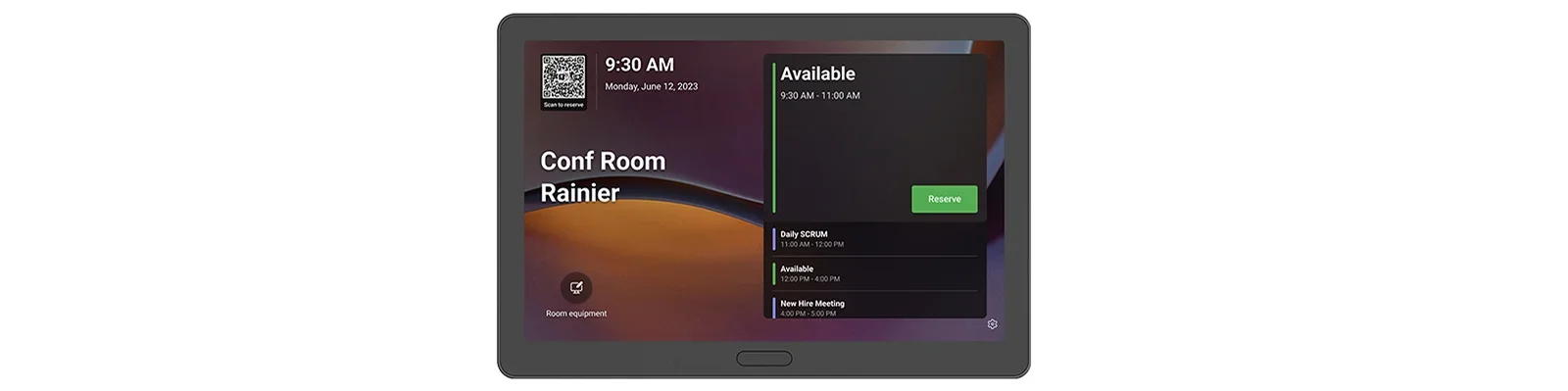

The Q-SYS Scheduling Panel is built on the Microsoft Device Ecosystem Platform (MDEP), as a Microsoft Teams Panel. Displaying meeting details, availability, and allowing users to reserve meeting spaces on the spot.
Features & Benefits
10.9-inch touchscreen optimized for usability and high visibility
1920 x 1200 resolution
Anti-fingerprint, anti-glare screen

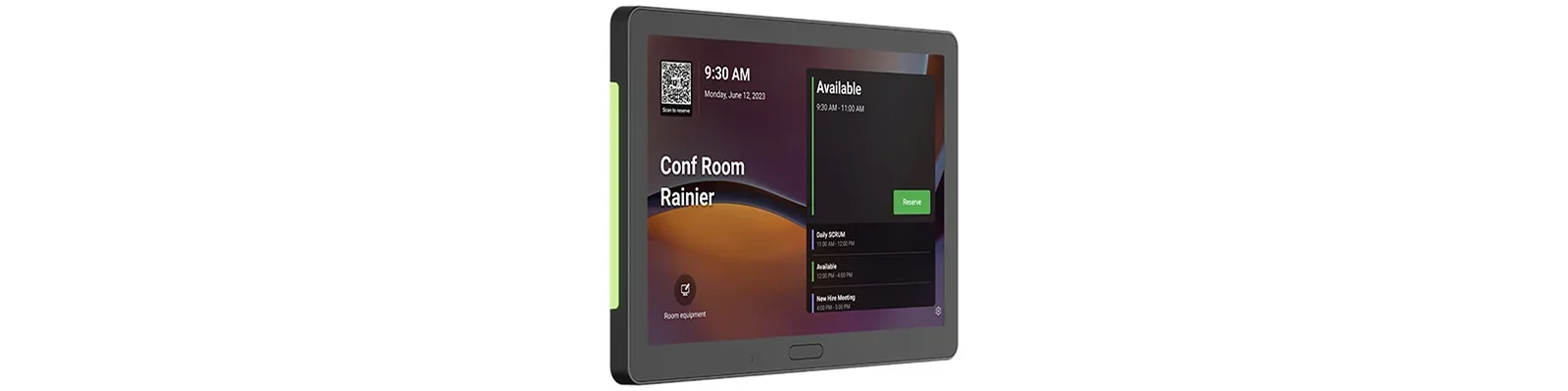

Illuminated side LEDs represent status, such as available, in-use, or requires cleaning
PoE 802.3af powered
Flexible mounting options
Wi-fi for wireless connectivity (requires DC power supply accessory)
Built for Microsoft Teams: The Q-SYS Scheduling Panel is built on the Microsoft Device Ecosystem Platform (MDEP) and delivers consistent experiences, improved performance, and simplified deployment.
Integrate with Q-SYS Reflect: The Q-SYS Scheduling Panel connects to Q-SYS Reflect for cloud-based device monitoring alongside all other Q-SYS devices and systems, including RoomSuite spaces, high-impact spaces, and communal areas, providing system administrators with real-time actions and insights.

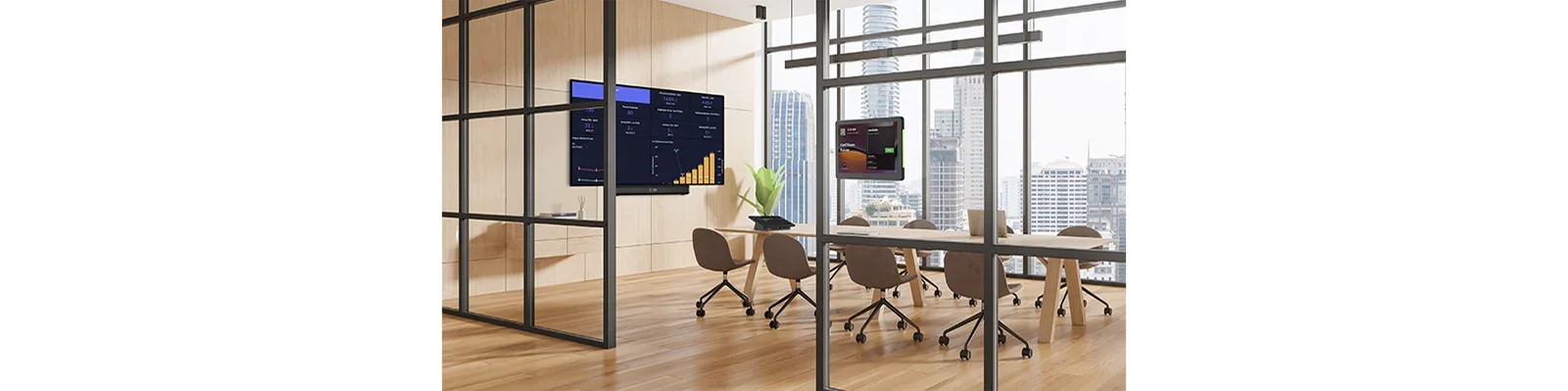

Mounting options for any space: The Q-SYS Scheduling Panel can be easily installed on conference room exteriors, walls, or glass. A surface mount is included, with an optional kit for glass and mullion installation.
Technical Specifications
| Model | Q-SYS Scheduling Panel (QSP-11) |
|---|---|
| System Details | |
| Operating System | Android 15 (MDEP-compliant for Teams Panel) |
| Screen size | 10.95 in (278 mm) |
| Resolution | 1920 × 1200, 16:10, ~206 dpi |
| Brightness | 350 nits (typical) |
| Microsoft Teams Panel Capabilities |
Room Status: At-a-glance free/busy RGB lightbars Actions: Reserve now, check-in, view schedule, extend, release Management: Teams Admin Center for enrollment, configuration and updates |
| Touch & sensors | |
| Touch type | Projected capacitive multi-touch |
| Surface | Anti-glare, oleophobic |
| Motion sensor | Human presence/proximity (auto wake-up) |
| Status indicators | Dual RGB side lightbars, front-visible, side-visible, rear-visible through glass |
| Mounting | |
| Wall mount | Included |
| Glass/mullion mounting kit | Optional (sold separately) |
| Orientation | Portrait or Landscape |

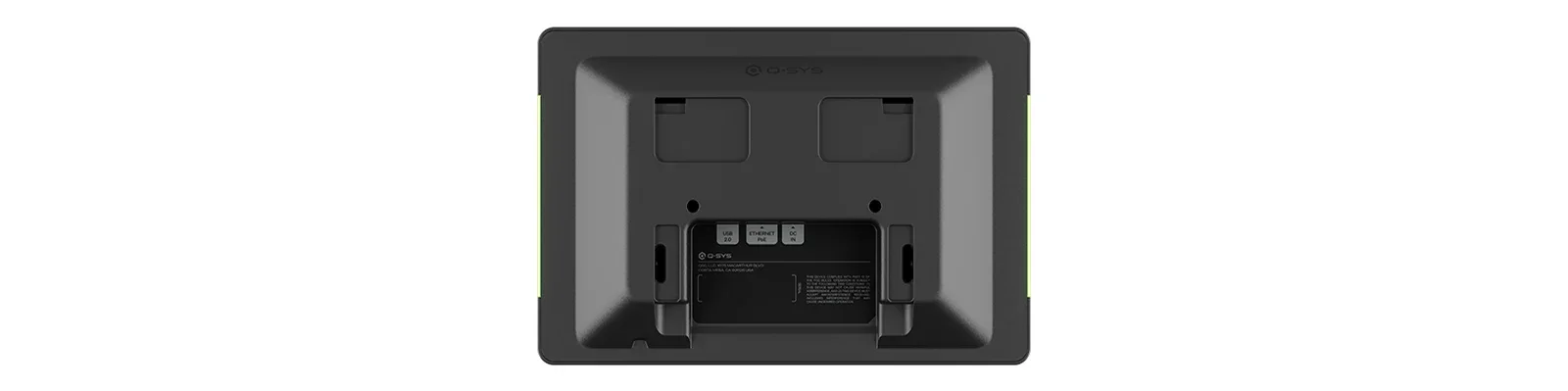

| Power and connectivity | |
| RJ-45 (PoE) | 1 Gbps Ethernet, 802.3af PoE PD |
| Wi-fi | 802.11 a/b/g/n/ac; 2.4/5 GHz; disabled by policy if required |
| Bluetooth | Bluetooth 5.0 (BR/EDR + LE); peripheral pairing as allowed by Microsoft Teams/MDEP |
| DC input | Optional (12 V DC power supply accessory with regional plug (QSP-DC-PSU) sold separately) |
| USB-C | USB-C service/debug port; up to 5 V / 1 A device power support during service |
| Physical | |
| Product dimensions (L × W × H) | 10.4 × 7.1 × 1.2 in (264 × 180.9 × 30.0 mm) |
| Product Weight | 1.6 lbs (0.7 kg) |
| Environmental & safety | |
| Storage temperature range | -4° to 158° F (-20° to 70° C) |
| Operating temperature range | 50° to 95° F (10° to 35° C) |
| Operating & storage humidity range | 5% to 85% RH, non-condensing |
