Axon C1 Wall Controller
Single-Gang networked audio controller (Attero Tech)

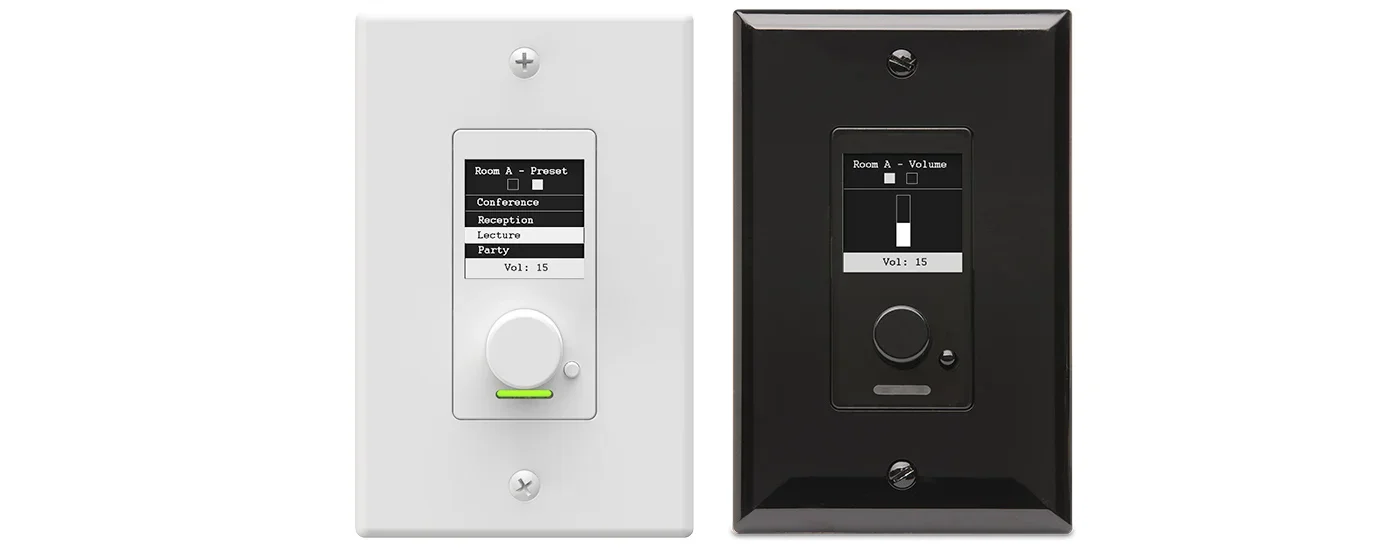

The Attero Tech Axon C1 is an assignable control solution for networked AV systems. The C1 features a single-gang, Decora in-wall design with an OLED display and rotary encoder for simple AV system control of volume, mute and preset recall. The C1 integrates into the Q-SYS via Extension, removing the need for custom programming during integration. Given its flexible nature, the C1 is capable of controlling virtually any Ethernet-based, third-party audio DSP or AV equipment.
Features & Benefits
Ethernet-based control solution for Q-SYS and other third-party AV products supporting UDP, TCP/IP control
Available Q-SYS Extension for control mapping - no programming required
Menu customization with unIFY Control Panel software
High-contrast OLED display provides easy-to-read menus and status
Intuitive controls facilitate simple user experience over assigned AV system functions
Assignable LED light bar, provides optional feedback for zone level and system state

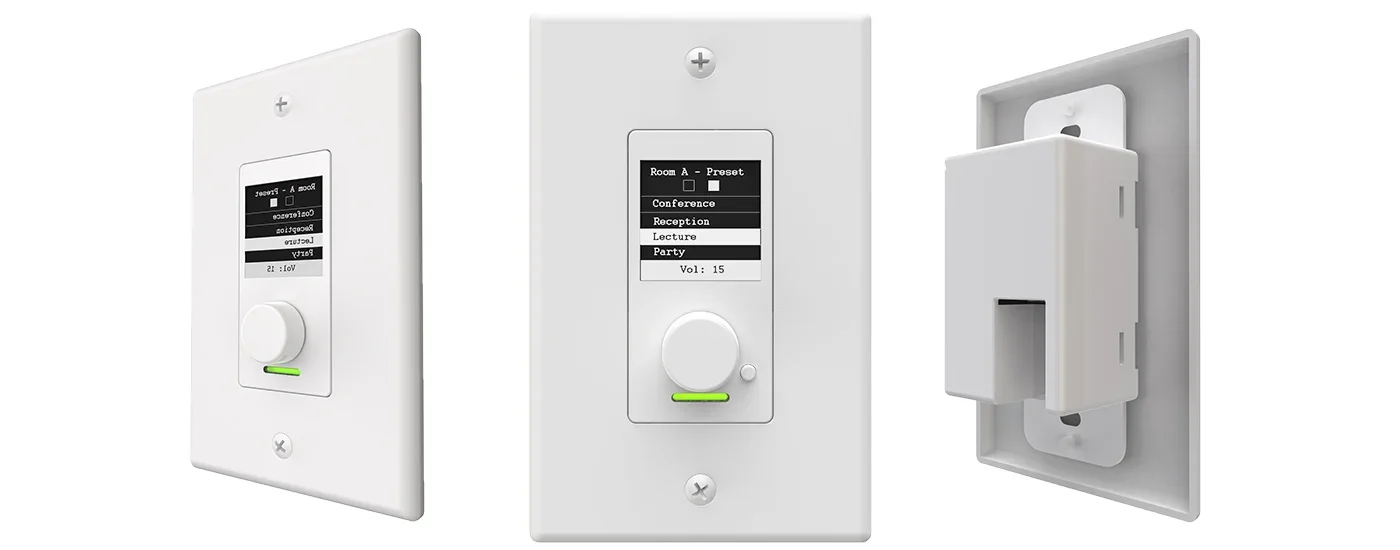

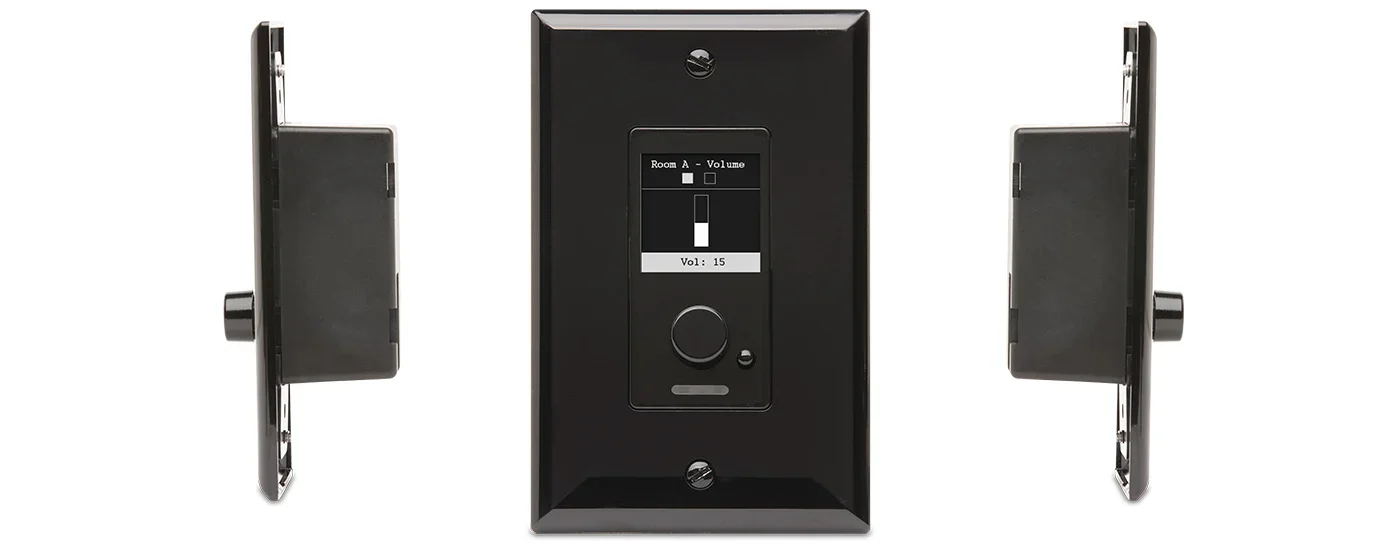

Minimalist design includes both black and white Decora faceplates to provide aesthetic appeal to a variety of venues
PoE powered - simple, single CAT-5e/CAT-6 cable installation
Technical Specifications
| Axon C1 | |
|---|---|
| User interface | One rotary / pushbutton encoder knob; one pushbutton toggle selector |
| Display type | 1.5 in (38.1 mm) diagonal high-contrast OLED display |
| Status indicator | RGB LED bar, adjustable brightness |
Axon C1 Specifications:
| Axon C1 | |
|---|---|
| Network physical layer | Ethernet |
| Network connector(s) | RJ-45 |
| Network transmission speed | 100 Mbps |
| PoE power | 802.3af Class 0 |
| Device dimensions (H x W x D) | 4.2 × 1.74 × 1.77 in (106.68 × 44.19 × 44.96 mm) |
| Device weight | 0.25 lbs (0.113 kg) |
