AD-S402T
Features & Benefits
The AcousticDesign™ Series AD-S402T is a 4-driver column surface-mount loudspeaker. This premium full range system is capable of 70 V / 100 V or 16 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Deliberately unobtrusive industrial design.

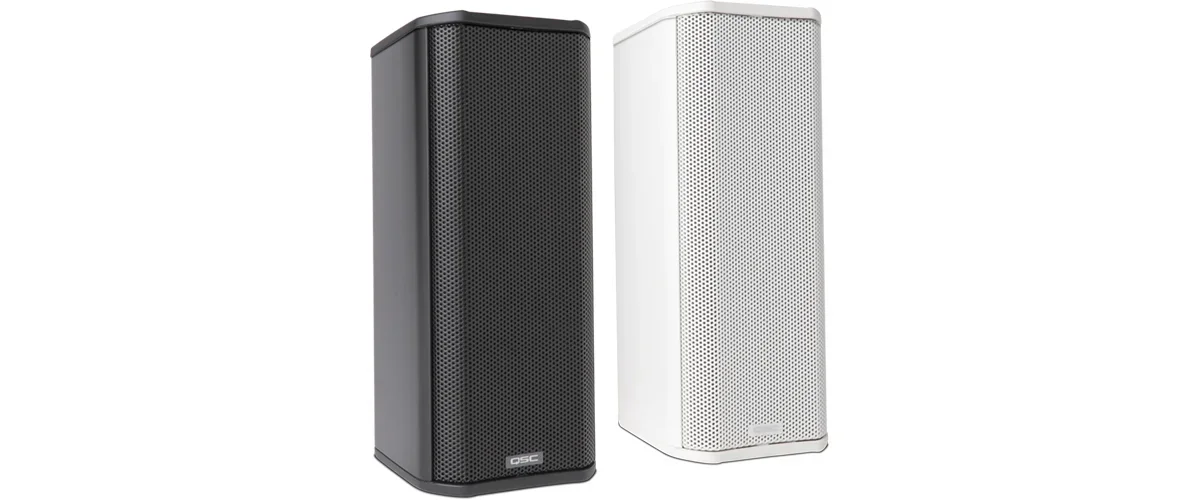

Available in white (RAL 9010) or black (RAL 9011).
Paintable enclosure and grille.
Complete EASE, CLF, CAD & BIM information.
Rugged aluminum construction.
UV Inhibitors in all white models.
IP-54 rating for dust and splash resistance.
Powder-coated grille and weather-treated cones.
Close to wall pan/tilt bracket included.
Low saturation 70 V / 100 V transformers.
16 ohm low impedance bypass.
Screw-down Euro block connector with loop-through.
Sealable input weather cup – keeps moisture away from wiring.
Technical Specifications
| System Details | AD-S402T-BK, AD-S402T-WH |
|---|---|
| LF Transducer | (x4) 2.75 in (69.8 mm) weather treated paper cone woofer |
| Effective frequency range1, 2, 3, 8 | 110 Hz – 20 kHz |
| Rated noise power / voltage 6 | 60 W / 31 V (rms) |
| Sensitivity [dB] | Rated @1 W, 1m2, 3, 4, 8: 85 |
| Coverage (-6 dB) [°] Horizontal x Vertical9 |
Rated2, 5, 8: 150 × 35 500 Hz: 180 × 90, 1kHz: 180 × 80 2k Hz: 160 × 46, 4kHz: 180 × 28 |
| Directivity factor 2, 5, 8 | 11 |
| Directivity index [dB] 2, 5, 8 | 10.5 |
| Maximum SPL [dB] | Rated, 1m (continuous / peak) 7: 105 / 111 |
| Recommended amplifier | 120 W |
| Transformer taps / impedance |
Bypass: 16 Ω 3.5 W (70 V); 7.5 W (100 V) Tap: 1333 Ω 7.5 W (70 V); 15 W (100 V) Tap: 666 Ω 15 W (70 V); 30 W (100 V) Tap: 333 Ω 30 W (70 V); Tap: 167 Ω |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | Powder coated aluminum |
| Grille material | Powder coated aluminum |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor or outdoor use |
| Operating temperature range | -4 to 122° F (-20 to 50° C) |
| Net weight | 7.5 lb (3.4 kg) |
| Product dimensions (H x W x D) |
12.89 × 5.17 × 4.97 in (327.5 × 131.3 × 126.1 mm) |
| Shipping Weight | 11 lb (5 kg) |
| Shipping Dimensions (H x W x D) |
21.4 × 12.2 × 9.6 in (544 × 310 × 244 mm) |
| Included accessories |
Sealed input cover plate with gland nut Quick Hang Pan/Tilt wall bracket Shoulder eyebolt safety tether anchor |
| Safety Agency |
UL1480A Transformer UL registered per UL1876, ROHS, CE compliant |
