AD-S162T
Surface-Mount Loudspeaker
Features & Benefits
The all-new AcousticDesign™ Series AD-S162T is a 16-driver column surface-mount loudspeaker. This premium full-range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Deliberately unobtrusive industrial design.

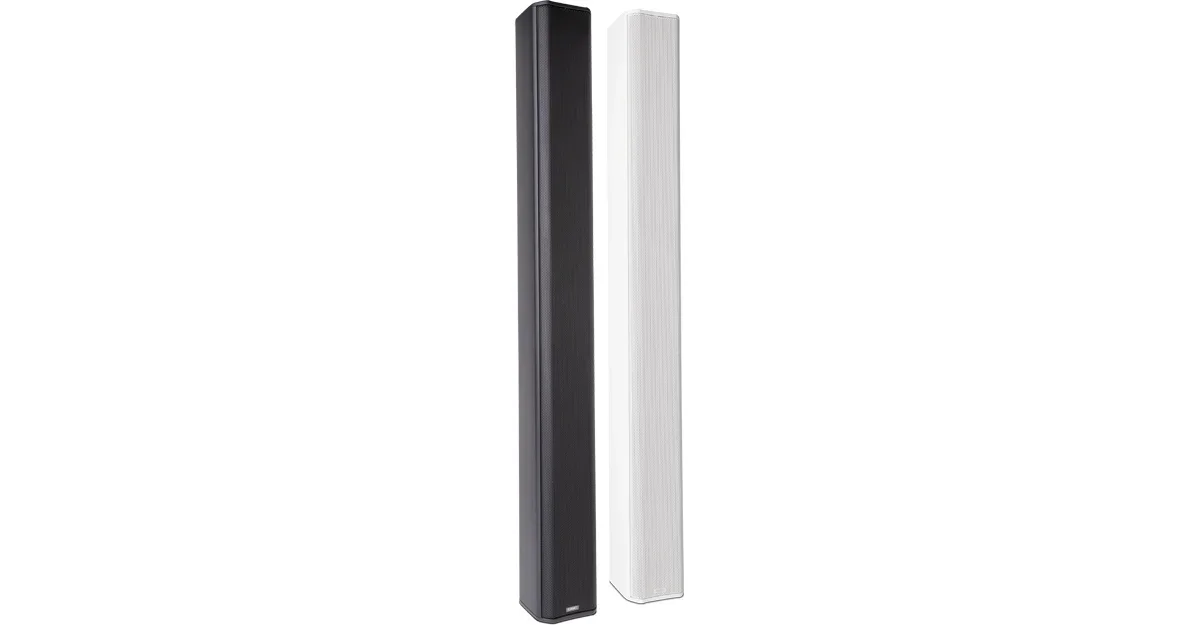

Available in white (RAL 9010) or black (RAL 9011).
Paintable enclosure and grill.
Complete EASE, CLF, CAD & BIM information.
Rugged aluminum construction.
UV Inhibitors in all white models.
IP-54 rating for dust and splash resistance.
Powder-coated grills and weather-treated cones.
Close to wall pan/tilt bracket included.
Low saturation 70/100V transformers.
8 ohm low impedance bypass.
Selectable broad/narrow beam contour
Screw-down Euro block connector with loop-through.
Sealable input weather cup – keeps moisture away from wiring.
Technical Specifications
| System Details | AD-S162T |
|---|---|
| Transducer | (x16) 2.75 in (69.8 mm) weather treated paper cone woofer |
| Effective frequency range 1, 2, 3, 8 | 90 Hz – 17 kHz |
| Rated noise power / voltage 6 | 200 watts / 40 volts (rms) |
| Sensitivity [dB] | Rated @1W, 1m 2, 3, 4, 8: 89 (Narrow) 88 (Wide) |
|
Coverage (-6 dB) [°] Horizontal x Vertical 9 |
Rated 2, 5, 8: 160 × 15 (Narrow) / 30 (Wide) 500Hz: 180 × 52 / 52, 1kHz: 180 × 26 / 28 2kHz: 160 × 18 / 28, 4kHz: 180 × 13 / 30 |
| Directivity factor 2, 5, 8 | TBD |
| Directivity index [dB] 2, 5, 8 | 11 (Narrow) 13 (Wide) |
| Maximum SPL [dB] |
Rated, 1m (continuous / peak) 7: 112 / 118 (Narrow) 111 / 117 (Wide) |
| Recommended amplifier | 250 watts |
| Transformer taps / impedance |
Bypass: 8Ω 15W (70V); 30W (100V) Tap: 333Ω 30W (70V); 60W (100V) Tap: 167Ω 60W (70V); 120W (100V) Tap: 83Ω 120W (70V); N/A (100V) Tap: 42Ω |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | Powder coated aluminum |
| Grille material | Powder coated aluminum |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor or outdoor use |
| Operating temperature range | -4 to 122° F (-20 to 50° C) |
| Net weight | 26 lb (11.8 kg) |
| Product dimensions (H x W x D) |
45.8 × 5.2 × 5-inch (1162 × 131 × 126 mm) |
| Shipping Weight | 32.7 lb (14.86 kg) |
| Shipping Dimensions (H x W x D) |
12.3 × 9.9 × 54.5-inch (312 × 251 × 1384 mm) |
| Included accessories |
Sealed input cover plate with gland nut Quick Hang Pan/Tilt wall bracket Shoulder eyebolt safety tether anchor |
| Safety Agency |
UL1480A Transformer UL registered per UL1876, ROHS, CE compliant |
