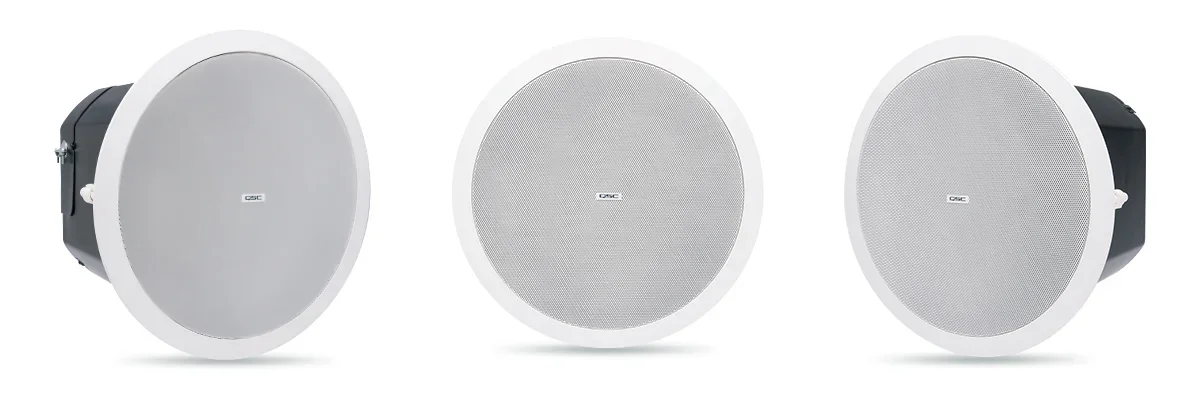

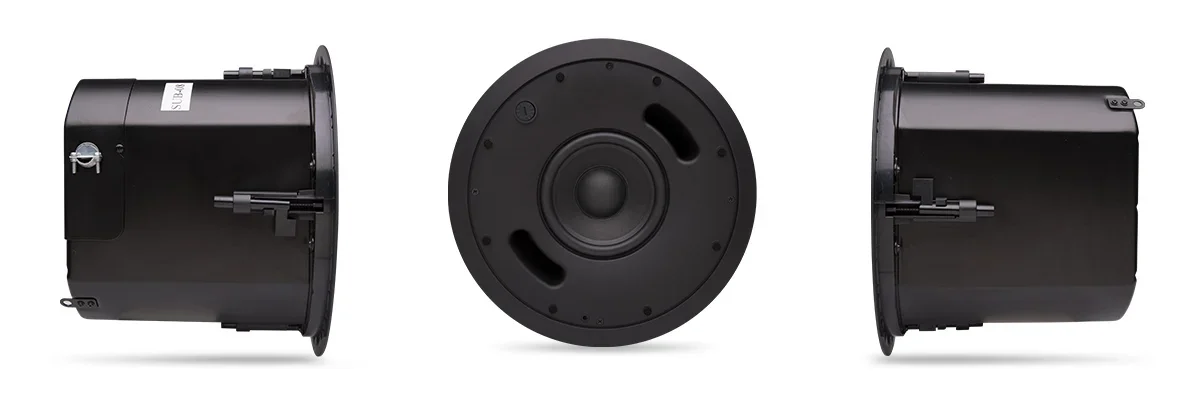

AD-C.SUB (Discontinued)
6.5-inch Dual Voice Coil, Small Format Ceiling Subwoofer
Features & Benefits
Dual voice-coil for improved thermal dissipation and higher output
Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
4x built-in high-pass filtered outputs
Snap-fit magnetic grills
Locking 4-pole Euroblock connectors
Removable conduit cover plate
4x double stepped, long travel dog-ear blind mount system
Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
Available in black (RAL 9011) or white (RAL 9010)
UL1480 and UL2043 certified
Technical Specifications
| Specification | AD-C.SUB |
|---|---|
| LF transducer | 6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer |
| HF transducer | N/A |
| Effective frequency range | 45 Hz – 150 Hz |
| Rated noise power / voltage | 100 W / 20 V (rms) |
| Sensitivity [dB] (rated @ 1 W, 1 m) |
86 |
| Coverage (-6 dB) | 250° |
| Directivity factor | 1.5 |
| Directivity index [dB] | 1.8 |
| Maximum SPL [dB] (continuous / program / peak) |
105 / 108 / 111 |
| Recommended amplifier | 100 W |
| Transformer taps / impedance |
Bypass: 4 Ω 100 W (70 V); NA (100 V) Tap: 50 Ω 50 W (70 V); 100 W (100 V) Tap: 100 Ω 25 W (70 V); 50 W (100 V) Tap: 200 Ω 12.5 W (70 V); 25 W (100 V) Tap: 400 Ω |
| Connectors |
Mono input: 4-pole Euroblock with thru output Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites |
| Enclosure material | ABS baffle on powder coated steel back can |
| Grill material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122° F (-20 to 50° C) |
| Net weight | 19.2 lb (8.7 kg) |
| Cutout dimension | Ø 12 in (Ø 305 mm) |
| Product dimensions (Ø x H) | Ø 13.4 × 10.4 inch (Ø 340 × 263 mm) |
| Shipping weight | 11.9 lb / 26.2 kg |
| Shipping dimensions (H x W x D) | 21 × 21 × 15 in (533 × 533 × 381 mm) |
| Included accessories | C-ring and tile rails, rail screws, 3x Euroblock connector, cut-out template, grill |
| Safety agency |
UL1480A, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces.
Transformer UL registered per UL1876, ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems. |
| Optional accessories | AD-MR8 (pre-install mud ring) |
