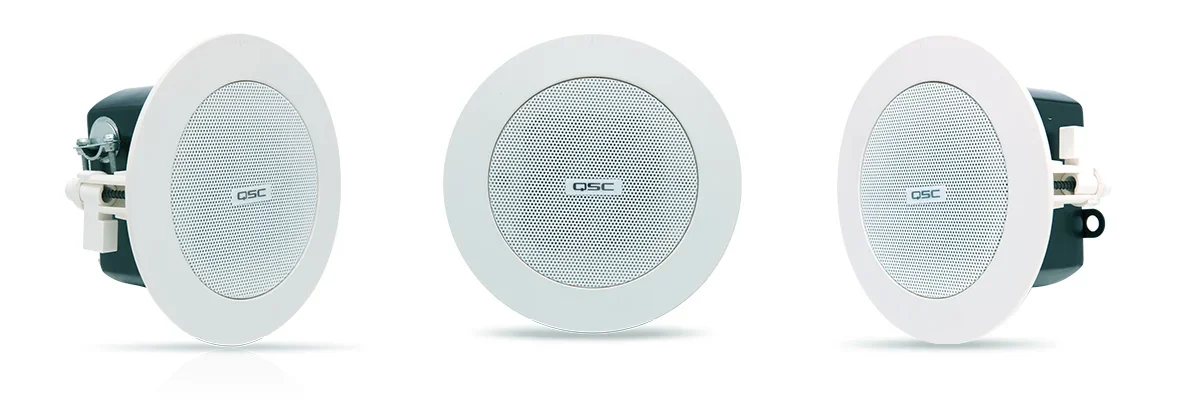

AD-C.SAT (Discontinued)
2.75-inch Small Format Ceiling Satellite Loudspeaker
Features & Benefits
Inverted aluminum dome dust cap
Rated at 16 Ω
Locking 2-pole Euroblock connectors
Snap-fit magnetic grills
Removable conduit cover plate

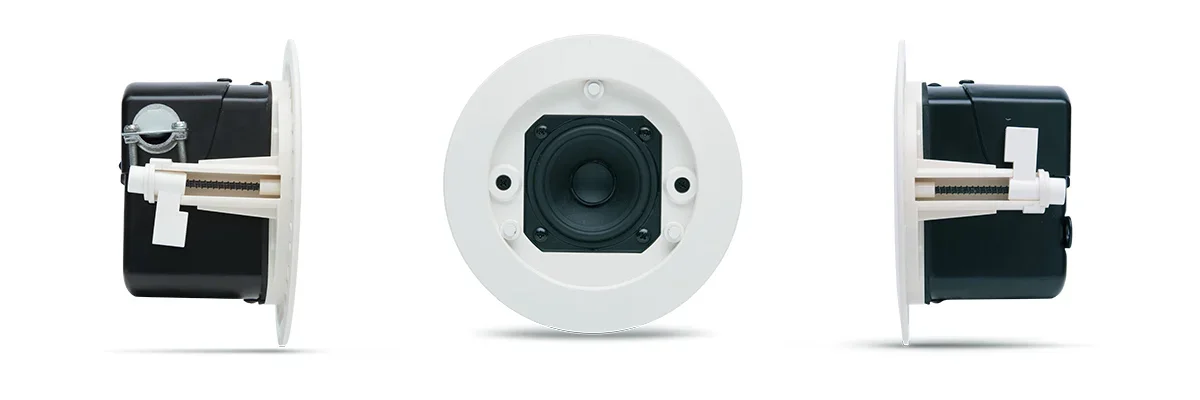

2x long travel dog-ear blind mount system
Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
Available in black (RAL 9011) or white (RAL 9010)
UL1480 and UL2043 certified
Technical Specifications
| Specifications | AD-C.SAT |
|---|---|
| LF transducer | N/A |
| HF transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective frequency range | 120 Hz – 20 kHz |
| Rated noise power / voltage | 25 W / 20 V (rms) |
| Sensitivity [dB] (rated @ 1 W, 1 m) |
83 |
| Coverage (-6 dB) | 170° Conical |
| Directivity factor | 2.75 |
| Directivity index [dB] | 4.4 |
| Maximum SPL [dB] (continuous / peak) |
97 / 103 |
| Recommended amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Transformer taps / impedance | Bypass: 16 Ω |
| Connector | 2-pole Euroblock connectors |
| Enclosure material | ABS baffle on powder coated steel back can |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122° F (-20 to 50° C) |
| Cutout dimension | Ø 4.5-inch (Ø 115 mm) |
| Net weight | 1.39 lb (630 g) |
| Product dimensions (Ø x H) | Ø 5.9 × 3.3-inch (Ø 149.6 x 83.4 mm) |
| Shipping weight (pair packed) | 5.1 lb / 2.3 kg |
| Shipping dimensions (H x W x D, pair packed) |
15 × 9.3 × 3.8 in (382 × 237 × 97 mm) |
| Included accessories | C-ring, Euroblock connector, cut-out template, grill (pair packed) |
| Safety agency |
UL1480A, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces.
Transformer UL registered per UL1876, ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems. |
