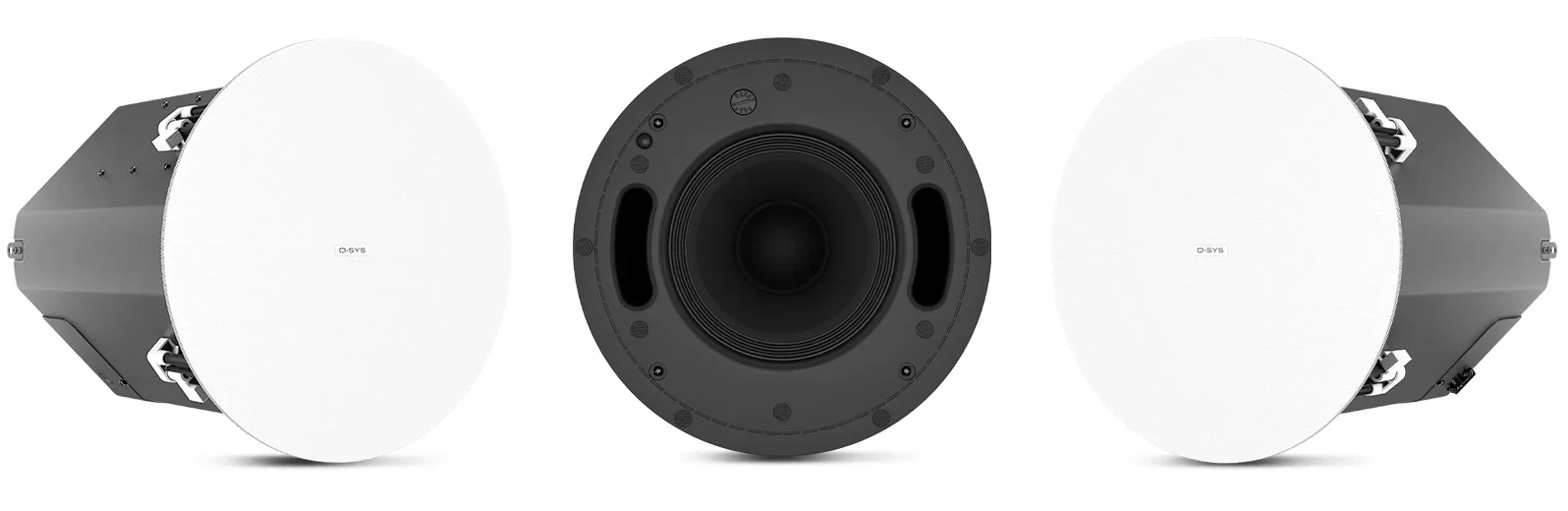

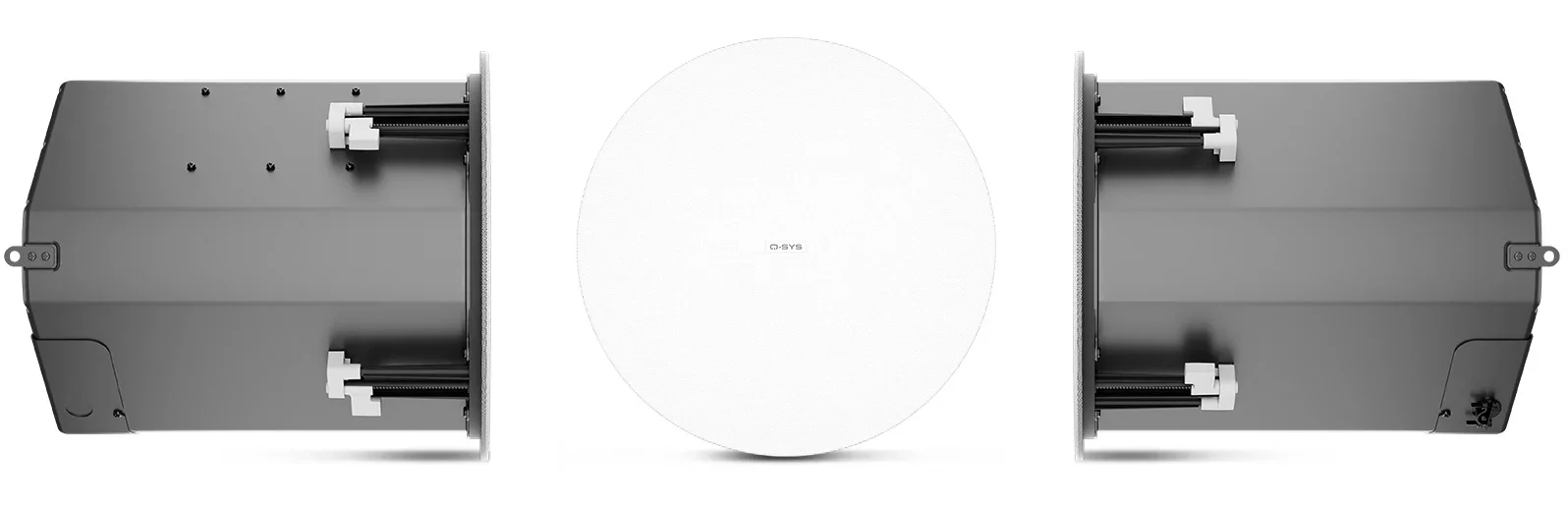

AD-C8T-SWZB
8-inch, ceiling-mount subwoofer
Features & Benefits
8-in ceiling subwoofer with bezel-less design
Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
Snap-fit magnetic grille
3x double stepped, long travel dog-ear blind mount system
Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers
Blemish-free removable logo
Removable conduit cover plate, also available as accessory for pre-install wiring
UL1480 and UL2043 certified
Available in white (RAL 9003), with black grille accessory sold separately.
Technical Specifications
| SPECIFICATIONS | AD-C8T-SWZB |
|---|---|
| LF transducer | 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite |
| Enclosure configuration | Ceiling Subwoofer, Bass Reflex |
| Coverage | Omni |
| Filter | 125 Hz Low Pass, Passive |
| System bandwidth (1) |
-3 dB: 65 Hz - 155 Hz -6 dB: 59 Hz - 170 Hz -10 dB: 53 Hz - 195 Hz |
| Sensitivity (2) | 92.3 dB @ 1 W/1 m |
| Max SPL (continuous) (3) | 113 dB |
| Max SPL (peak) (4) | 125 dB |
| Max SPL (calculated) (5) | 123 dB |
| Power rating | Continuous power 250 W @ 8Ω, rated Power 500 W |
| Bypass impedance | 8 Ω |
| Minimum impedance | 6.4 Ω @ 118 Hz |
| Taps (70v/100v) | 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W |
| Enclosure material | ABS baffle on powder coated steel backcan |
| Enclosure color | Black back-can, white grille (RAL 9010) |
| Connectors | 4-pin 0.2 in (5 mm) Euroblock connector with parallel output |
| Dimensions (H × W × D) | 13.5 × 13.5 × 13.75 in (342.9 × 342.9 × 349.25 mm) |
| Cutout dimensions | 305 mm |
| Shipping dimensions (H × W × D) | 19.5 × 17.5 × 32 in (495.3 × 444.5 × 812.8 mm), pair packed |
| Weight | 22.4 lb (10.1 kg) |
| Included accessories | Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille |
| Optional accessories (sold separately) | AD-MR8 (pre-install mud ring), AD-C305BG-BK black grille |
| Ingress protection | IP-44 |
| Safety agency |
UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces.
ROHS, CE compliant. Baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems. |
