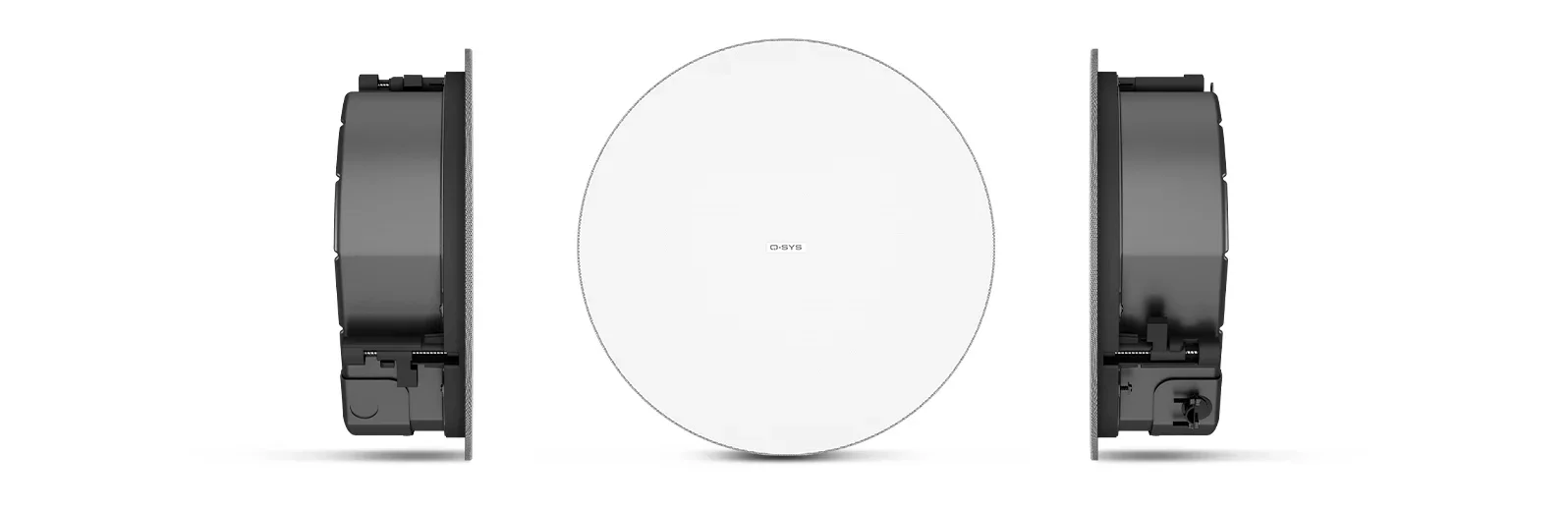

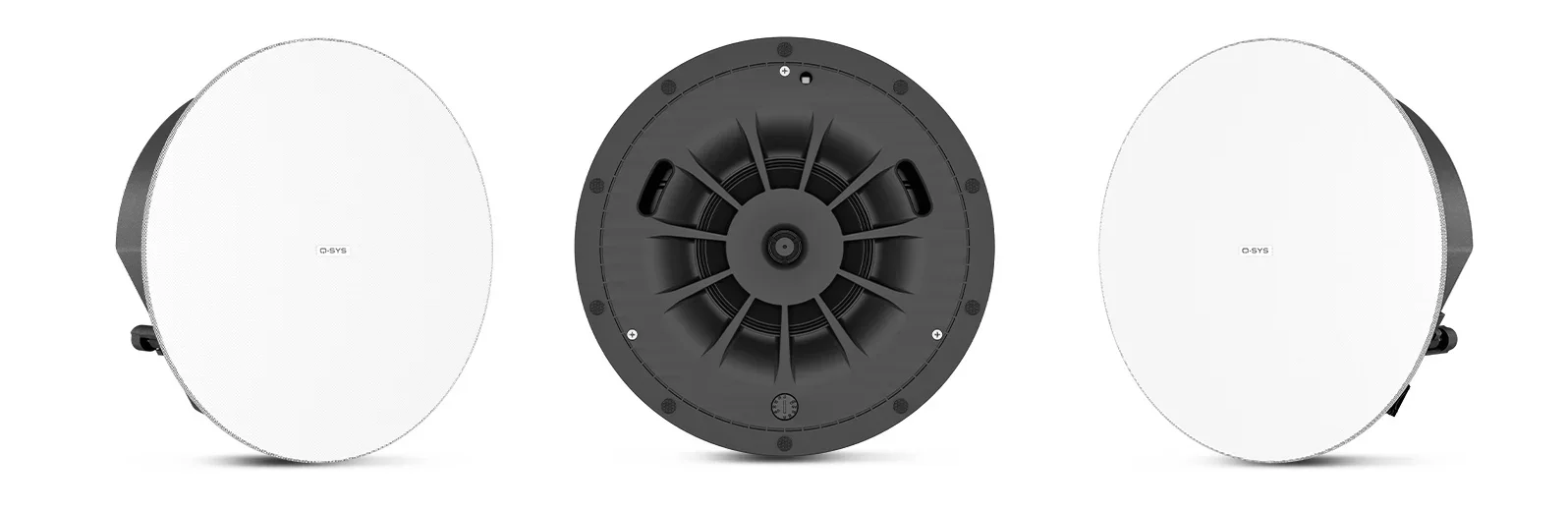

AD-C6T-LPZB
6.5-inch, 2-way, low profile, zero bezel
Features & Benefits
Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
Sleek zero bezel design for modern architectural needs
Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
Snap-fit magnetic grille
3x double stepped, long travel dog-ear blind mount system
Advanced Intrinsic Correction™ voicings available via Q-SYS™
Low-saturation and low-loss 70/100V transformers with 16Ω bypass
Blemish-free removable logo
Removable conduit cover plate, also available as accessory for pre-install wiring
UL1480 and UL2043 certified
Available in signal white (RAL 9003), with black grille accessory sold separately
Complete EASE, CAD, & BIM information available online
Technical Specifications
| SPECIFICATIONS | AD-C6T-LPZB |
|---|---|
| Effective frequency range¹ | 65 Hz – 20 kHz |
| Rated noise power / voltage² | 60 watts / 31 volts (rms) |
|
Sensitivity [dB]³ Sensitivity at 4m, 100V maximum tap |
88 TBD |
| Rated coverage (-6 dB)⁴ | 135° conical DMT™ |
| Directivity factor (Q) | 6.5 |
| Directivity index (DI) [dB] | 8 |
| Maximum continuous SPL [dB]⁵ | 106 |
| Maximum peak SPL [dB]⁵ | 112 |
| Nominal impedance [ohms] | 16 |
| Transformer taps / impedance |
16Ω (in bypass setting) 7.5W (70V); 15W (100V) Tap: 667Ω 15W (70V); 30W (100V) Tap: 333Ω 30W (70V); 60W (100V) Tap: 167Ω 60W (70V); N/A (100V) Tap: 83Ω |
| LF transducer | 165 mm [6.5-inch] weather resistant paper cone woofer |
| HF transducer | 19 mm [0.75-inch] aluminum dome tweeter |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | ABS baffle on powder coated steel back can |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -20 to 50° C [-4 to 122° F] |
| Cutout dimension | Ø 305 mm (Ø 12 in) |
| Net weight | 4.3 kg [9.5 lb] |
| Product dimensions (Diameter x Height) | Ø 340 × 100 mm [Ø 13.37 × 3.95-inch] |
| Shipping weight | 12.6 kg [27.8 lb] (pair packed) |
| Shipping dimensions (H x W x D) | 178 × 864 × 470 mm (7 × 34 × 18.5 in), pair packed |
| Included accessories | C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille |
| Optional accessories |
AD-MR8 (pre-install mud ring), 305 mm cutout size AD-C305BG (black ceiling grille), 305 mm cutout size |
| Safety Agency | UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems. |
