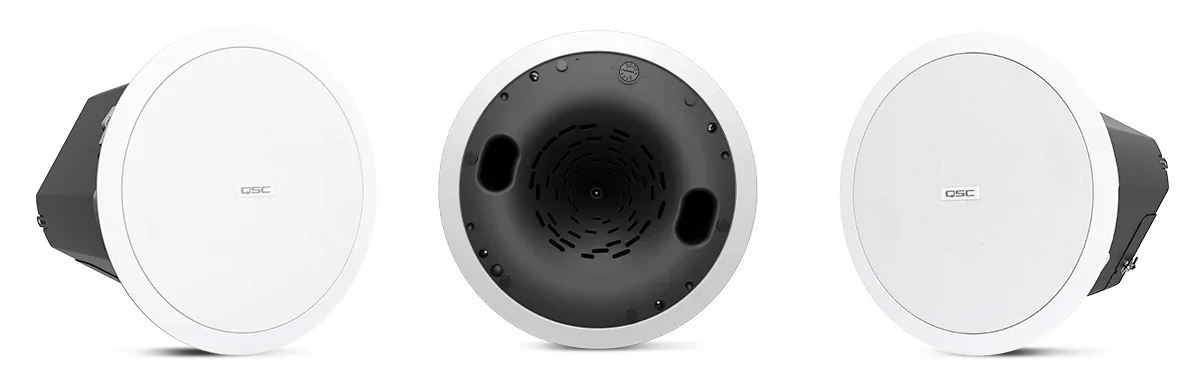

AD-C6T-HC
6.5-inch, 2-way ceiling-mount loudspeaker, 75° coverage
Features & Benefits
Higher power handling and tighter coverage area enables venues with high ceilings or reverberant spaces
Consistent tonal characteristics across the entire AcousticDesign Series let you mix and match form factors across your venue
Snap-fit magnetic grille

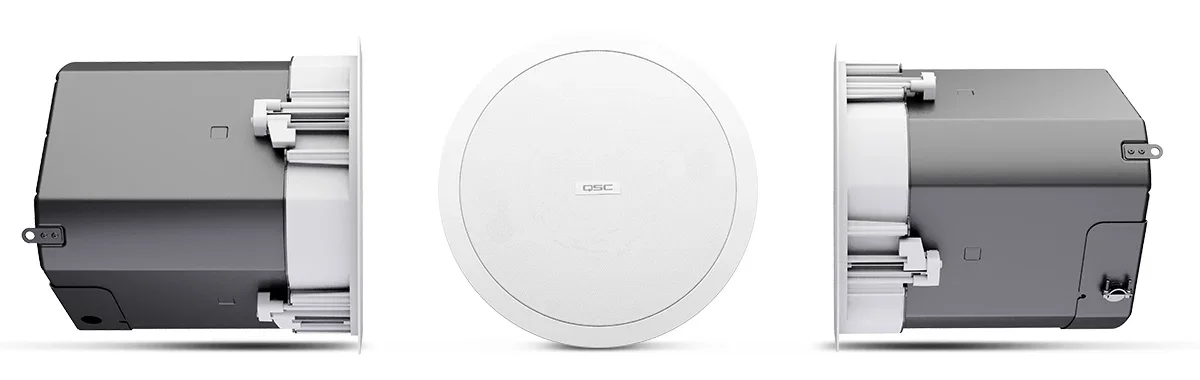

3x double stepped, long travel dog-ear blind mount system
Advanced Intrinsic Correction™ voicings available via Q-SYS™
16 Ω bypass with multiple transformer taps for 70/100 Vrms systems
75° coverage pattern
Available in white (RAL 9010)
Technical Specifications
| SPECIFICATIONS | AD-C6T-HC |
|---|---|
| Description | 6.5 in, two-way ceiling-mount loudspeaker with transformer |
| Transducers |
6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil,
ferrite magnet 1.4 in (35.6 mm) kapton dome compression tweeter |
| Sensitivity | 90 dB @ 1 W, 1 m |
| Freq. range (-10 dB) | 45 Hz - 20 kHz |
| Rated noise power (@16 Ω bypass) | 120 W |
| Coverage (-6 dB) | 75° |
| Directivity factor | 10 |
| Directivity index | 10 dB |
| Max SPL (continuous/peak) | 110 dB / 116 dB @1 m |
| Taps (70 V / 100 V) | 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W |
| Bypass impedance | 16 Ω |
| Min impedance | 14.97 Ω @ 208 Hz |
| Crossover frequency | 2.5 kHz |
| Input | 4-pin Euroblock connector with parallel output |
| Cutout dimension | Ø 305 mm (Ø 12 in) |
| Net weight | 19 lb (8.58 kg) |
| Product dimensions | 12 × 13.4 × 13.4 in (313 × 340 × 340 mm) |
| Optional accessories |
AD-MR8 (pre-install mud ring), 305 mm cutout size AD-C305C (collar adapter), 305 mm cutout size |
