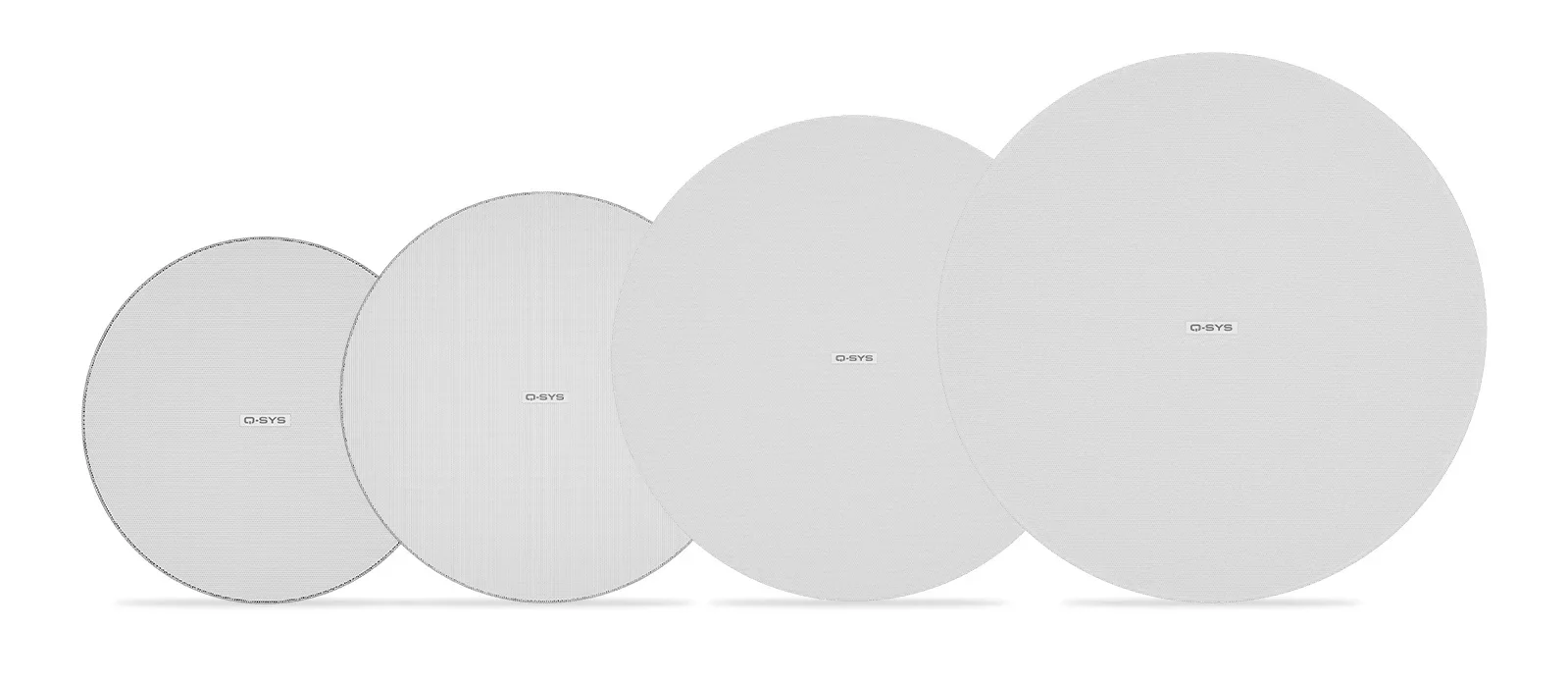

AcousticDesign Series (Premium)
AcousticDesign™ ceiling loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience.
SELECT A MODEL
| AD-C4T-ZB | AD-C4T-LPZB | |
|---|---|---|
| Systems Type | 2-way | 2-way, shallow can |
| Bezel-less Design | ✓ | ✓ |
| Frequency Range, -10dB(Hz) |
70Hz–20kHz | |
| Nominal Coverage | 150° conical DMT™ | |
| Output (PeakSPL @1M) | 108 dB | |
| Rated noise power¹ | 30 | |
| Sensitivity² | 87.5 dB | 87.5 dB |
| LF Driver | 4.5in (114mm) | |
| HF Driver | 0.75in (19mm) | |
| Transformer Taps |
70V:30,15,7.5,3.75W and 16 bypass 100V:30,15,7.5W and 16 bypass |
|
| Input Connectors |
Euroblock connector with parallel output terminals |
|
| Dimensions (W × D) inches |
9.06 × 6.94 | 11.02 × 3.93 |
| Dimensions (W × D) mm |
230 × 176 | 280 × 100 |
| Net Weight | 6.4lb (2.9kg) | 6.6lb (3kg) |
